Seite 1

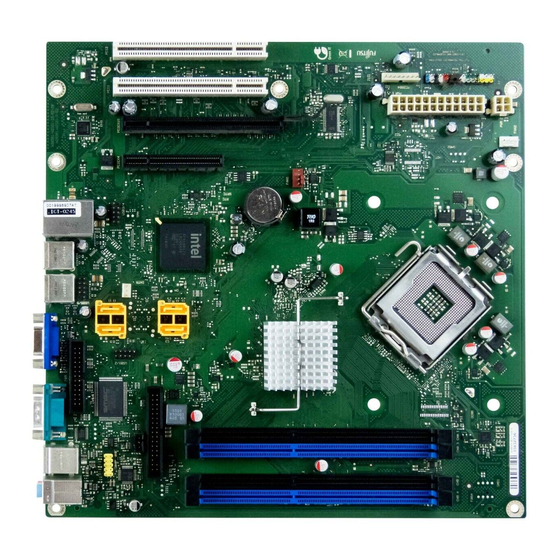

All manuals and user guides at all-guides.com Mainboard Short Description Mainboard D3011/D3012...
Seite 2
... any technical problems or other questions which you would like to be clarified? Please contact: • Our Help Desk • Your sales partner • Your sales office The latest information and updates (e. g. BIOS update) for our mainboards can be found on the Internet at: "http://ts.fujitsu.com"...
Seite 3
All manuals and user guides at all-guides.com...
Seite 4
Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner. For further information see "http://ts.fujitsu.com/terms_of_use.html" Order No. Fujitsu Technology Solutions GmbH: A26361-D3011-Z210-1-8N19, edition 1...
Seite 5
/ - / - (FAN3)/ AUX2 (FAN4) TEMP monitored CPU / ONB1 / ONB2 / HDD SmartCard SystemLock (USB / serial) Fujitsu Technology Solutions Keyboard Power Button Support Special onboard features D3011 D3012 Silent Fan / Silent Fan LT / System Guard / Silent Drives...
Seite 6
2 = VCC AUX from floppy and allows a BIOS recovery 3 = Data negative Port X 8 = GND 4 = Data negative Port Y 9 = Key Data positive Port X 10 = Not connected A26361-D3011-Z240-1-8N19 Fujitsu Technology Solutions...
Seite 7
2 = VCC AUX from floppy and allows a BIOS recovery 3 = Data negative Port X 8 = GND 4 = Data negative Port Y 9 = Key Data positive Port X 10 = Not connected A26361-D3012-Z240-1-8N19 Fujitsu Technology Solutions...
Seite 8
All manuals and user guides at all-guides.com Internal connectors and slots Fujitsu Technology Solutions...
Seite 9
All manuals and user guides at all-guides.com Mainboard D3011/D3012 First-time setup Deutsch English...
Seite 10
All manuals and user guides at all-guides.com...
Mikrofonanschluss, rosa Audioeingang (Line in), hellblau USB – Universal Serial Bus, schwarz Audioausgang (Line out), hellgrün VGA, blau Serielle Schnittstelle, türkis Die externen USB-Anschlüsse dürfen laut USB 2.0 Spezifikation maximal mit 500 mA pro USB-Anschluss belastet werden. Fujitsu Technology Solutions...
Sockel LGA775, max. 95W • Eine aktuelle Liste der von diesem Mainboard unterstützten Prozessoren finden Sie im Internet unter: "http://ts.fujitsu.com/mainboards". Fassen Sie auf keinen Fall die Unterseite des Prozessors an. Schon leichte Verunreinigungen wie Fett von der Haut können die Funktion des Prozessors beeinträchtigen oder den Prozessor zerstören.
Der Steckplatz für Prozessor ist zum Schutz der Federkontakte mit einer Schutzkappe abgedeckt. Im Garantiefall kann das Mainboard nur mit befestigter Schutzkappe von Fujitsu Technology Solutions zurück genommen werden! ► Entfernen Sie den Kühlkörper. ► Drücken Sie auf den Hebel und haken Sie ihn aus.
Modulgröße 1, 2 oder 4 GByte pro Modul Eine aktuelle Liste der für dieses Mainboard empfohlenen Speichermodule finden Sie im Internet unter: "http://ts.fujitsu.com/mainboards". Es muss mindestens ein Speichermodul eingebaut sein. Speichermodule mit unterschiedlicher Speicherkapazität können kombiniert werden. Es dürfen nur ungepufferte 1,5 V-Speichermodule ohne ECC verwendet werden.
Dev 1D Fn 0 Dev 1D Fn 1 Dev 1A Fn 2 Dev 1D Fn 2 EHCI USB 2.0 Dev 1A Fn 7 Dev 1D Fn 7 SATA #1 SATA #2 SMBus Intel LAN HD Audio Onboard Graphik Fujitsu Technology Solutions...
Komponenten an dieser PCI IRQ Line müssen IRQ Sharing unterstützen. BIOS Update Wann sollte ein BIOS-Update durchgeführt werden? Fujitsu Technology Solutions stellt neue BIOS-Versionen zur Verfügung, um die Kompatibilität zu neuen Betriebssystemen, zu neuer Software oder zu neuer Hardware zu gewährleisten. Außerdem können neue BIOS-Funktionen integriert werden.
Die für das BIOS-Update notwendigen Daten werden auf den USB-Stick geschrieben. ► Starten Sie den PC neu. Um den PC von einem USB-Stick starten zu können, müssen Sie die Bootreihenfolge im BIOS ändern. Eine Anleitung dazu finden Sie im Handbuch zum BIOS. ► Folgen Sie den Bildschirmanweisungen. Fujitsu Technology Solutions...
Seite 20
All manuals and user guides at all-guides.com 10 - Deutsch BIOS Update Fujitsu Technology Solutions...
USB – Universal Serial Bus, black Audio output (Line out), light green VGA, blue Serial interface, turquoise In accordance with the USB 2.0 specification, the external USB ports must only be loaded with a maximum of 500 mA per USB port. Fujitsu Technology Solutions...
• A current list of the processors supported by this mainboard is available on the Internet at: "http://ts.fujitsu.com/mainboards". Never touch the underside of the processor. Even minor soiling such as grease from the skin can impair the processor’s operation or destroy the processor.
The processor socket is covered with a protective cap to protect the spring contacts. In the event of a warranty claim, the mainboard can only be taken back by Fujitsu Siemens Computers with the protective cap secured! ► Remove the heat sink.
1024, 2048 or 4096 MB per module A current list of the memory modules recommended for this mainboard is available on the Internet at: "http://ts.fujitsu.com/mainboards". At least one memory module must be installed. Memory modules with different memory capacities can be combined.
Dev 1D Fn 0 Dev 1D Fn 1 Dev 1A Fn 2 Dev 1D Fn 2 EHCI USB 2.0 Dev 1A Fn 7 Dev 1D Fn 7 SATA #1 SATA #2 SMBus Intel LAN HD Audio Onboard Graphik Fujitsu Technology Solutions...
A BIOS update should always also be performed when a problem exists that cannot be solved with new drivers or new software. Where can I obtain BIOS updates? The BIOS updates can be found on our website at "http://ts.fujitsu.com/mainboards". BIOS update under DOS with bootable BIOS update diskette – brief description ►...
To boot the PC from a USB memory stick, you must first change the boot device sequence in the BIOS. You will find instructions on how to do this in your BIOS manual. ► Follow the instructions on screen. Fujitsu Technology Solutions...
