Deutsch
22 -

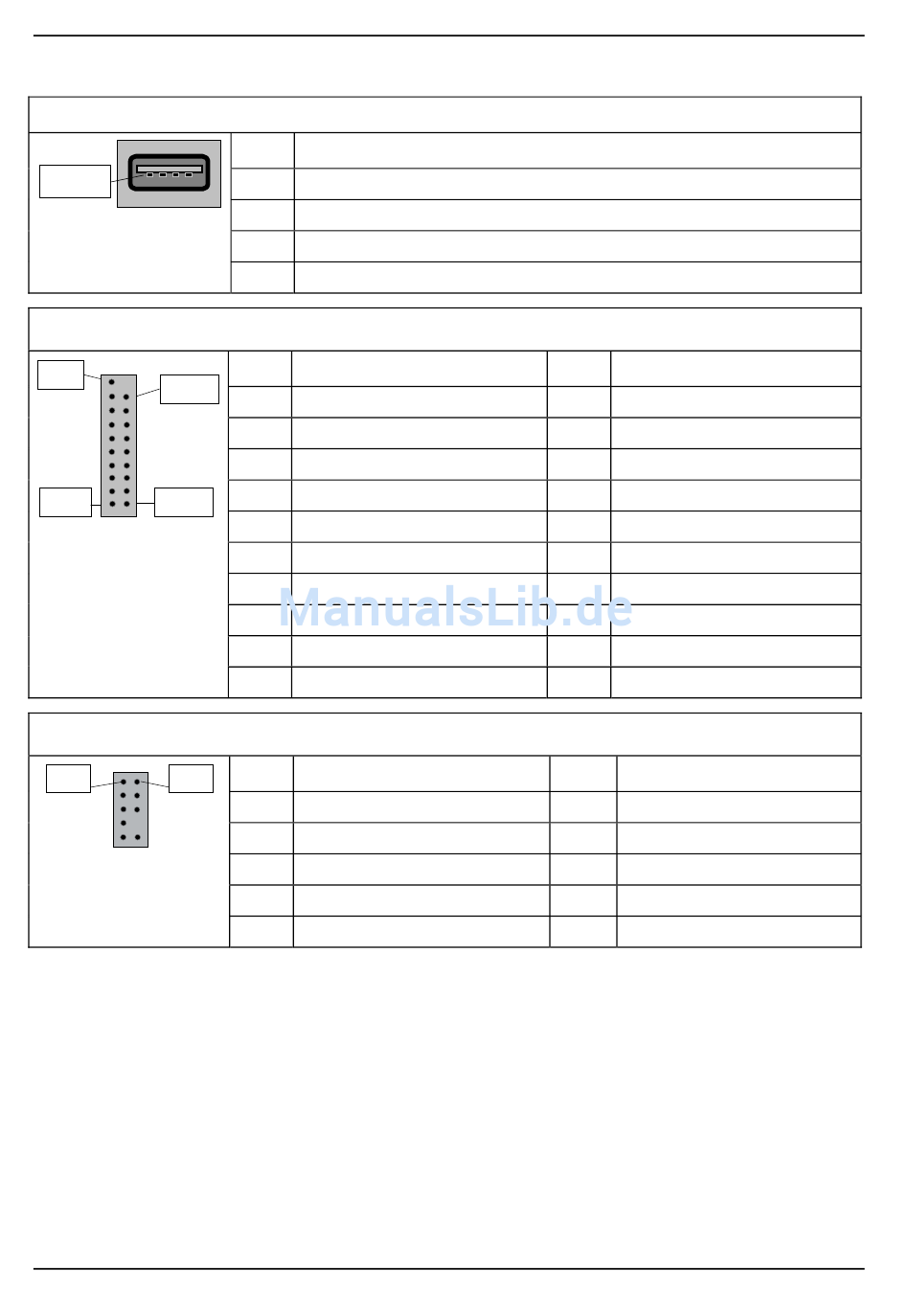

USB 2.0-Anschluss (intern)
Pin 1
USB 3.0-Anschluss (intern) – Intern/Vorderseite
Pin 1
Pin 19
Pin 10 Pin 11
High Definition Audio Frontpanel-Stiftleiste (intern)
Pin 1 Pin 2
22
POL Signal
1 VCC AUX (abgesichert)
2 Data negative
3 Data positive
4 GND
POL Signal
1 VBus
2 USB 3.0 Port 2 RX Neg
3 USB 3.0 Port 2 RX Pos
4 GND
5 USB 3.0 Port 2 TX Neg
6 USB 3.0 Port 2 TX Pos
7 GND
8 USB 2.0 Port 2 Data Neg
9 USB 2.0 Port 2 Data Pos
10 Überstrom
POL Signal
1 HDA Port 1 Left
3 HDA Port 1 Right
5 HDA Port 2 Left
7 Jack Sense common
9 HDA Port 2 Right
Mainboard D3348
POL Signal
20 Key
19 VBus
18 USB 3.0 Port 1 RX Neg
17 USB 3.0 Port 1 RX Pos
16 GND
15 USB 3.0 Port 1 TX Neg
14 USB 3.0 Port 1 TX Pos
13 GND
12 USB 2.0 Port 1 Data Neg
11 USB 2.0 Port 1 Data Pos
POL Signal
2 Analog GND
4 FP Presence Detect
6 Jack Sense Port 1
8 Key
10 Jack Sense Port 1
