Seite 1

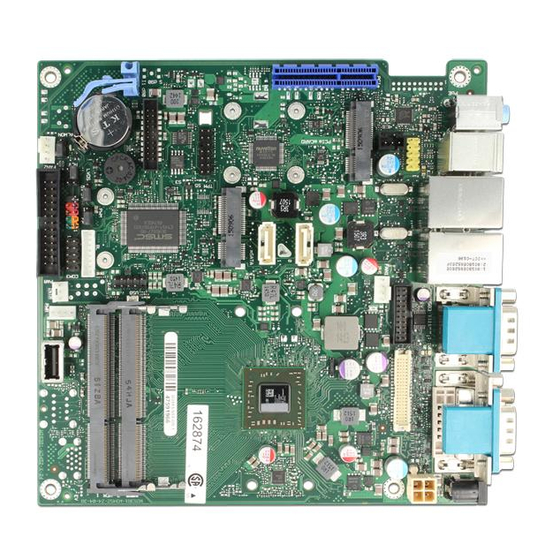

Mainboard Short Description Mainboard D3313...
Seite 2
For driver updates, go to: "http://support.ts.fujitsu.com/download" Should you have any technical questions, please contact: • our Hotline/Service Desk (see the Service Desk list or visit: "http://support.ts.fujitsu.com/contact/servicedesk") • Your sales partner • Your sales office We hope you enjoy working with your new Fujitsu system!
Seite 5
Internal connectors and slots D3313-A, D3313-E, D3313-G 2x USB3.0 Processor Memory Socket COM 2 DisplayPort Drive Power Intrusion Port 4 FAN 1 2x USB2.0 mSATA COM 3 LPT SATA 2x USB2.0 Buzzer Mouse Recover Keyboard mini PCIe Speaker Battery Power Button...
Seite 6
Silent Drives (Noise reduction for optical and hard disk drives) System Guard (View and adjust Silent Fan / Silent Fan LT) SmartCard SystemLock (USB / serial) Keyboard Power Button (Fujitsu Technology Solutions Keyboard Power Button Support) 0-Watt Low Power Soft OFF...
Seite 7
Internal connectors and slots List of onboard Features D3313-A PCI Express x16 Slot PCI Express x1 Slot PCI Slot (32 bit, 33 MHz, Rev. 2.3) Frontpanel Audio (9-pin, Intel standard header) Specific socket for internal USB Stick Serial (FIFO, 16550 compatible)
Seite 8
Silent Drives (Noise reduction for optical and hard disk drives) System Guard (View and adjust Silent Fan / Silent Fan LT) SmartCard SystemLock (USB / serial) - / - - / - Keyboard Power Button (Fujitsu Technology Solutions Keyboard Power Button Support) 0-Watt Fujitsu...
Seite 9
1) Maximum supported Transfer Rate per Port 2) Not supported by standard Power Supplies Power Supply Requirements - for onboard components (worst case) Source Voltage Maximal variation Mainboard current typical D3313-E, D3313-G Main Power Supply 19 V +/-10 % Fujitsu...
Seite 10
Internal connectors and slots D3313-B, D3313-F 2x USB3.0 Memory Socket Processor DisplayPort Port 4 2x USB2.0 mSATA SATA 2x USB2.0 Buzzer Mouse Recover Keyboard mini PCIe Speaker Battery Power Button LED Power LED HDD DVI-I USB 2.0 1 = 5V USB...
Seite 11
Silent Fan LT (OS independent, temperature related fan control) Silent Drives (Noise reduction for optical and hard disk drives) System Guard (View Silent Fan) SmartCard SystemLock (USB / serial) Keyboard Power Button (Fujitsu Technology Solutions Keyboard Power Button Support) 0-Watt Low Power Soft OFF...
Seite 12
Internal connectors and slots List of onboard Features D3313-B PCI Express x16 Slot PCI Express x1 Slot PCI Slot (32bit, 33 MHz, Rev. 2.3) Frontpanel Audio (9-pin, Intel standard header) Specific socket for internal USB Stick Serial (FIFO, 16550 compatible)
Seite 13
Silent Drives (Noise reduction for optical and hard disk drives) System Guard (View and adjust Silent Fan / Silent Fan LT) SmartCard SystemLock (USB / serial) - / - Keyboard Power Button (Fujitsu Technology Solutions Keyboard Power Button Support) 0-Watt Low Power Soft OFF...
Seite 14
Internal connectors and slots List of onboard Features D3313-F 1066/1333/1600/1866 MT/s modules PCI Express x16 Slot PCI Express x1 Slot PCI Slot (32 bit, 33 MHz, Rev. 2.3) Frontpanel Audio (9-pin, Intel standard header) Specific socket for internal USB Stick...
Seite 15
Internal connectors and slots D3313-S Power Memory Socket Processor LVDS Internal USB2.0 (Stick) COM 2 Internal DisplayPort Drive Power 2x USB3.0 USB2.0 LVDS Port 4+7 Backlight COM 3 2x USB2.0 Front Panel mSATA LVDS BL Control SATA0 SATA1 2x USB2.0...
Seite 16
Internal connectors and slots List of onboard Features D3313-S1 D3313-S2 D3313-S3 CPU AMD GX-210HA GX-217GA GX-420CA Graphics HD8210E HD8280E HD8400E Board size Mini-ITX Mini-ITX Mini-ITX DVI-D / DVI-I / VGA / DisplayPort / HDMI / - / / - /...
Seite 17
Internal connectors and slots List of onboard Features D3313-S1 D3313-S2 D3313-S3 Keyboard Power Button (Fujitsu Technology Solutions Keyboard Power Button Support) Low Power Soft OFF Internal Connectors DIMM Sockets (DDR3 1333/1600, SO-DIMM) PCI Express x4 Slot PCI Slot (32bit, 33 MHz, Rev. 2.3) Frontpanel Audio (9-pin, Intel standard header) Specific socket for internal USB Stick...
Seite 18
Silent Fan (OS independent, temperature related fan control and supervision) Silent Drives (Noise reduction for optical and hard disk drives) System Guard (View Silent Fan) Keyboard Power Button (Fujitsu Technology Solutions Keyboard Power Button Support) Low Power Soft OFF Internal Connectors DIMM Sockets (DDR3 1333/1600, SO-DIMM)
Seite 19
Internal connectors and slots List of onboard Features D3313-S4 D3313-S5 PCI Express x4 Slot PCI Slot (32bit, 33 MHz, Rev. 2.3) Frontpanel Audio (9-pin, Intel standard header) Specific socket for internal USB Stick Serial (FIFO, 16550 compatible) Intrusion (Case Open) Feature Connector (General Purpose I/O) USB 2.0 (~480 Mbit/s), USB 3.0 (4000 Mbit/s)
BIOS-Update mit einem USB-Stick ............Fujitsu...
Seite 24
Ankündigung vorbehalten. Fujitsu weist jegliche Verantwortung bezüglich technischer oder redaktioneller Fehler bzw. Auslassungen von sich. Warenzeichen Fujitsu und das Fujitsu-Logo sind eingetragene Warenzeichen von Fujitsu Limited oder seiner Tochtergesellschaften in den Vereinigten Staaten und anderen Ländern. Microsoft und Windows sind Warenzeichen bzw. eingetragene Warenzeichen der Microsoft Corporation in den Vereinigten Staaten und/oder anderen Ländern.
Ihres Mainboards besitzt oder unterstützt das Mainboard bestimmte Merkmale. In diesem Handbuch finden Sie die wichtigsten Eigenschaften dieses Mainboards beschrieben. Weitere Informationen zu Mainboards finden Sie im Handbuch "Basisinformationen Mainboard" auf der DVD "User Documentation" oder "OEM Mainboard" bzw. im Internet. Fujitsu...
Durch den Einsatz einer neuen Chipsatz-Technology kann sich ein verändertes Verhalten beim Anschluss älterer USB-Geräte (Fullspeed, USB 1.1) ergeben. Das betrifft zum Beispiel ältere Digitalkameras, von denen immer nur eine (nicht zwei oder mehr gleichzeitig) betrieben werden kann. Neuere Geräte der Spezifikation USB 2.0 sind davon nicht betroffen. Fujitsu...
BIOS Update BIOS Update Wann sollte ein BIOS-Update durchgeführt werden? Fujitsu Technology Solutions stellt neue BIOS-Versionen zur Verfügung, um die Kompatibilität zu neuen Betriebssystemen, zu neuer Software oder zu neuer Hardware zu gewährleisten. Außerdem können neue BIOS-Funktionen integriert werden. Ein BIOS-Update sollte auch immer dann durchgeführt werden, wenn ein Problem besteht, das sich durch neue Treiber oder neue Software nicht beheben lässt.
Seite 31
BIOS update using a USB stick ............Fujitsu...
Seite 32
Trademarks Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited or its subsidiaries in the United States and other countries. Microsoft and Windows are trademarks or registered trademarks of the Microsoft Corporation in the United States and/or other countries.
This manual describes the most important properties of this mainboard. Additional information on mainboards is provided in the "Basic information on mainboard" manual on the "User Documentation" or "OEM Mainboard" DVD, or on the Internet. Fujitsu...
USB devices (Fullspeed, USB 1.1). This relates, for example, to older digital cameras of which only one (not two or more at the same time) can be operated at any one time. Newer devices with specification USB 2.0 are not affected by this. Fujitsu...
BIOS Update When should a BIOS update be performed? Fujitsu Technology Solutions makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can be integrated. A BIOS update should also always be performed if there is a problem that cannot be solved using new drivers or new software.
