a) Connecting one pair of speakers

• Steps and
Select the black connection cable and one cable of different color (4) and of desired power level; e.g. yellow for 2 W
(see table). Make sure the selected speaker power conforms to the power level of the amplifier.
Cut off the remaining blank wires of the non-selected connection cables, using cable shears.
• Steps and : Fold the connection cables not to be used to the side and then isolate the ends of the speaker
cable, using insulation tape.

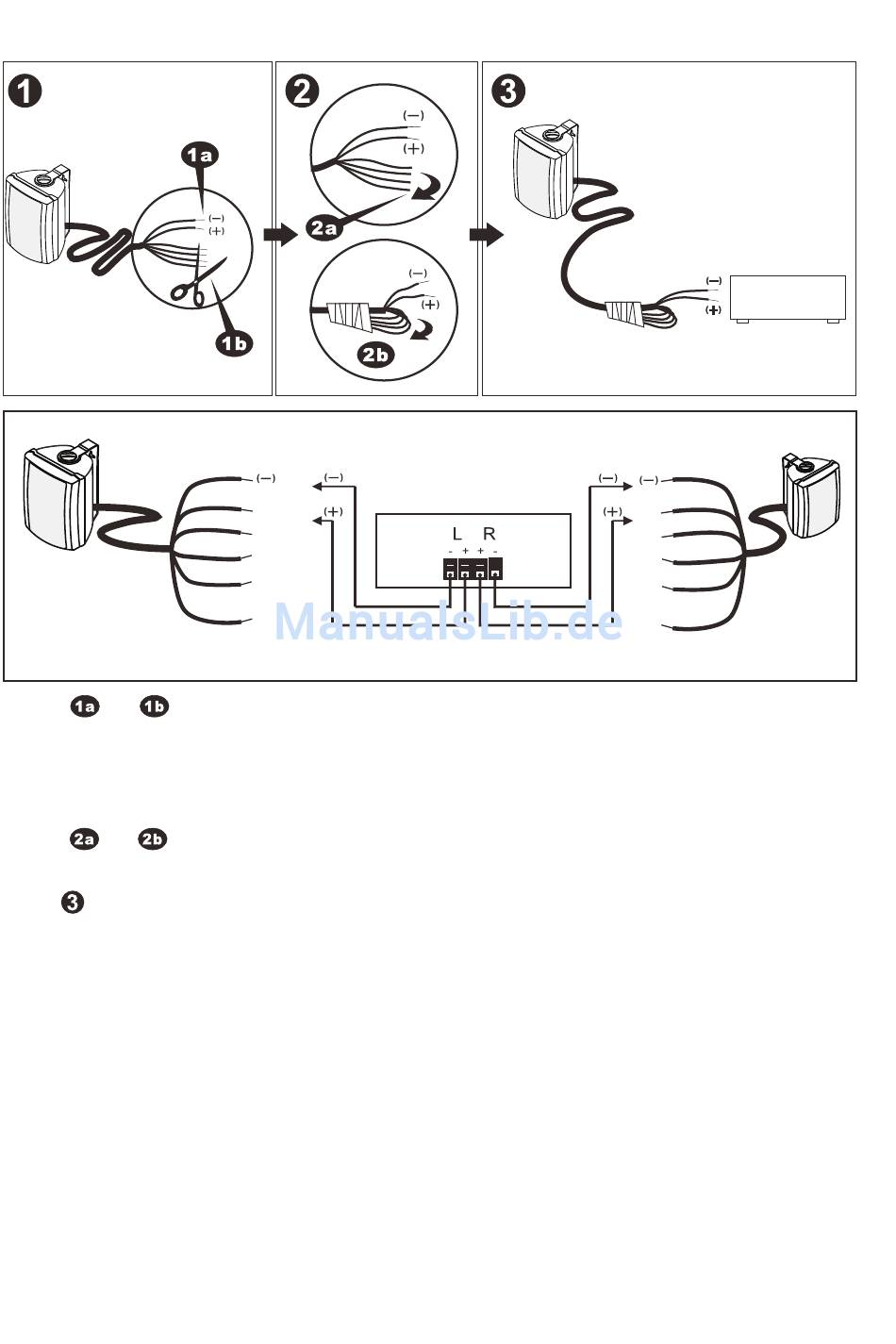

• Step : Connect the two selected connection cables of the speaker to the corresponding speaker outputs on the
amplifier. Observe correct polarity while doing so:
Speaker
Positive connection cable (red, yellow, green, blue or white)
Negative connection cable (black)
• Install the second speaker the same way.
Black
1 W Red
2 W Yellow
4 W Green
8 W Blue
15 W White
Left speaker socket
: Switch off your system if still turned on.
Amplifier
Right speaker socket
Speaker output on the amplifier
> Red connector (+)
> Black connector (-)
Amplifier
Black
1 W Red
2 W Yellow
4 W Green
8 W Blue
15 W White
