BAE IO-Link Sensor Amplifier

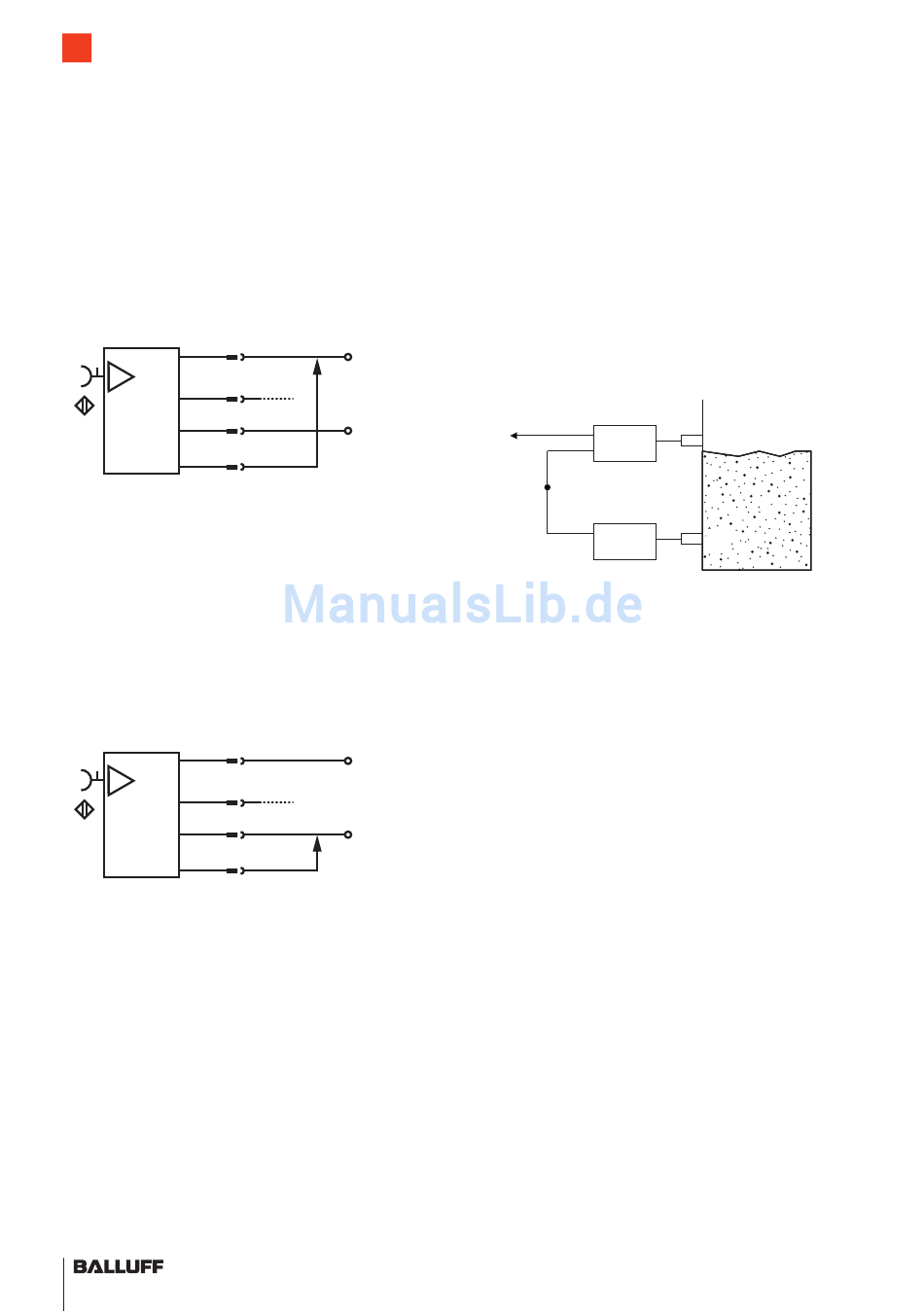

Teaching in SP1: Detecting an object
1. Place the object in the desired detection
state (distance to the object or sensor
surface covering with fill level).
2. Briefly connect the open teach line (white) to
U (brown).
B+
>> >> Switchpoint SP1: current detection
state reliably detected is taught in.
BN
+
3
BK
OUT
BU
–
WH
ext. prog.
Teaching in SP2: Not detecting an object
1. Change the distance from the sensor to the
object or the sensor surface covering
selected for SP1 to the extent where the
object is to be classified as not detected
(any longer)
2. Briefly connect the open teach line (white) to
U (blue).
B–
>> >> Switchpoint SP2: current detection
state not detected is taught in.
BN
+
3
BK
OUT
BU
–
WH
ext. prog.
10 english
+
1
4
–
3
2
+
1
4
–
3
2

Special function

PuMP
Example for fill level regulation with 2 sensors and
amplifiers:
System 1 (amplifier and sensor 1) reports
minimum fill level L1 to system 2 (amplifier and
sensor 2) via control line.
NOTe
System 1 is not used in IO-Link operation.
Ett = PumP
bk
Output 1)
MAX
wh
bk
MIN
Out = PushPull
1) e.g. for pump control
Signal linking as follows:
Output bk active if fill level falls below L1 (sensor 1)
(e.g. switching on a pump).
Output bk switches to low as soon as fill level
exceeds L2 (sensor 2) (pump switches off).
NOTe
After a power failure, the system starts in the last
mode (draining or filling). A maximum of 300,000
cycles is possible.
6.6.3 Setting the switch-on delay
don
►
Set a value for the switch-on delay (value
range: 0 – 6500 x 10 ms).
>> >> Switch-on is delayed by the set value.
Fill level
L2
L1
