BAE IO-Link Sensor Amplifier

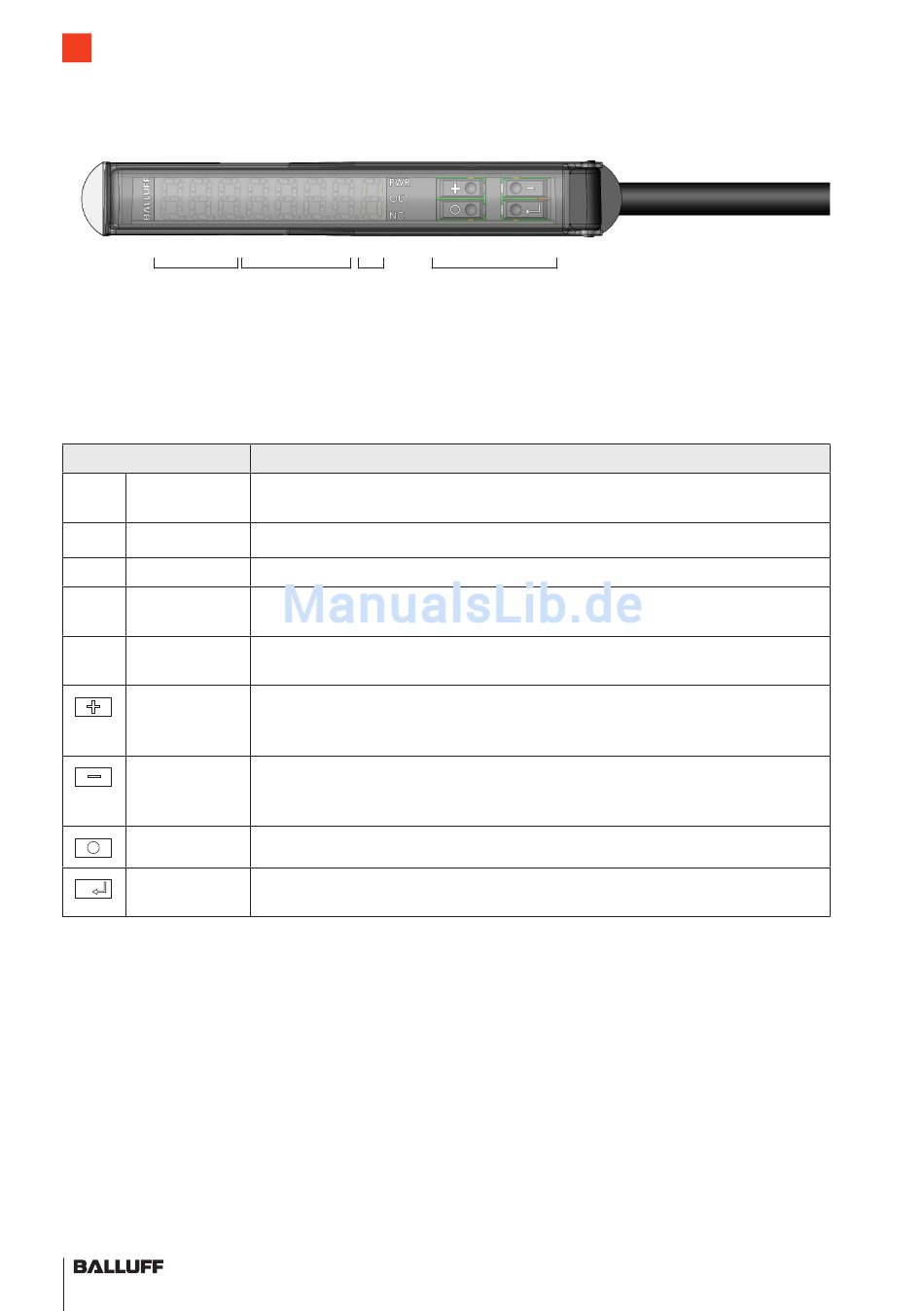

1
1 3 × 7-segment display (yellow)
2 4 × 7-segment display (orange)
3 Status LEDs (PWR/OUT/NC)
4 Menu buttons
element
888
Display (yellow)
8888 Display (orange)
PWR LED (green)
OUT LED (yellow)
NC LED (red)
Button
Button
Button
Button
6 english
2 3
Function
Displays the brief description of the menu item. If connected to an IO-Link master,
IOL
is displayed.
Displays the parameters as a numerical value or in the form of a selection
Lights up when operating voltage is applied
Indicates the actuated switching state (dependent on the set configuration
N.C./N.O.)
Does not light up if no operating voltage is applied or N.O. is configured.
Lights up when operating voltage is applied and N.C. is configured.
Browse further through menu item or increase value range
If the button is pressed for an extended period of time, a rapid scroll of values is
activated.
Browse back through menu item or lower value range
If the button is pressed for an extended period of time, a rapid scroll of values is
activated.
Activate parameter input within menu item
Save value range selection, teach-in, start/save, jump to submenu selection from
[ ]conF [ ]di SP
and
