BAE IO-Link Sensor Amplifier
4
Installation
4.1
Assembling the amplifier
The following fitting methods are available:
• Simple clamp fitting on the hat rail acc. to
DIN, 35 mm or 15 mm
• Screw fixing with pan-head M3 screws
4.2
Connecting the amplifier
The amplifier can be operated with type
BCS...-XXS-... sensors.
1.1.1
Connection assignments
NOTeS
Teach-in mode is only useful in SIO mode.
In normal operation, the white teach line must
always be connected to the blue negative line.
1
2
4
3
Pin
Color
Signal
1
BN
U
+
e
2
WH
Teach line
3
BU
U
–
e
4
BK
C/Q output signal
4
english

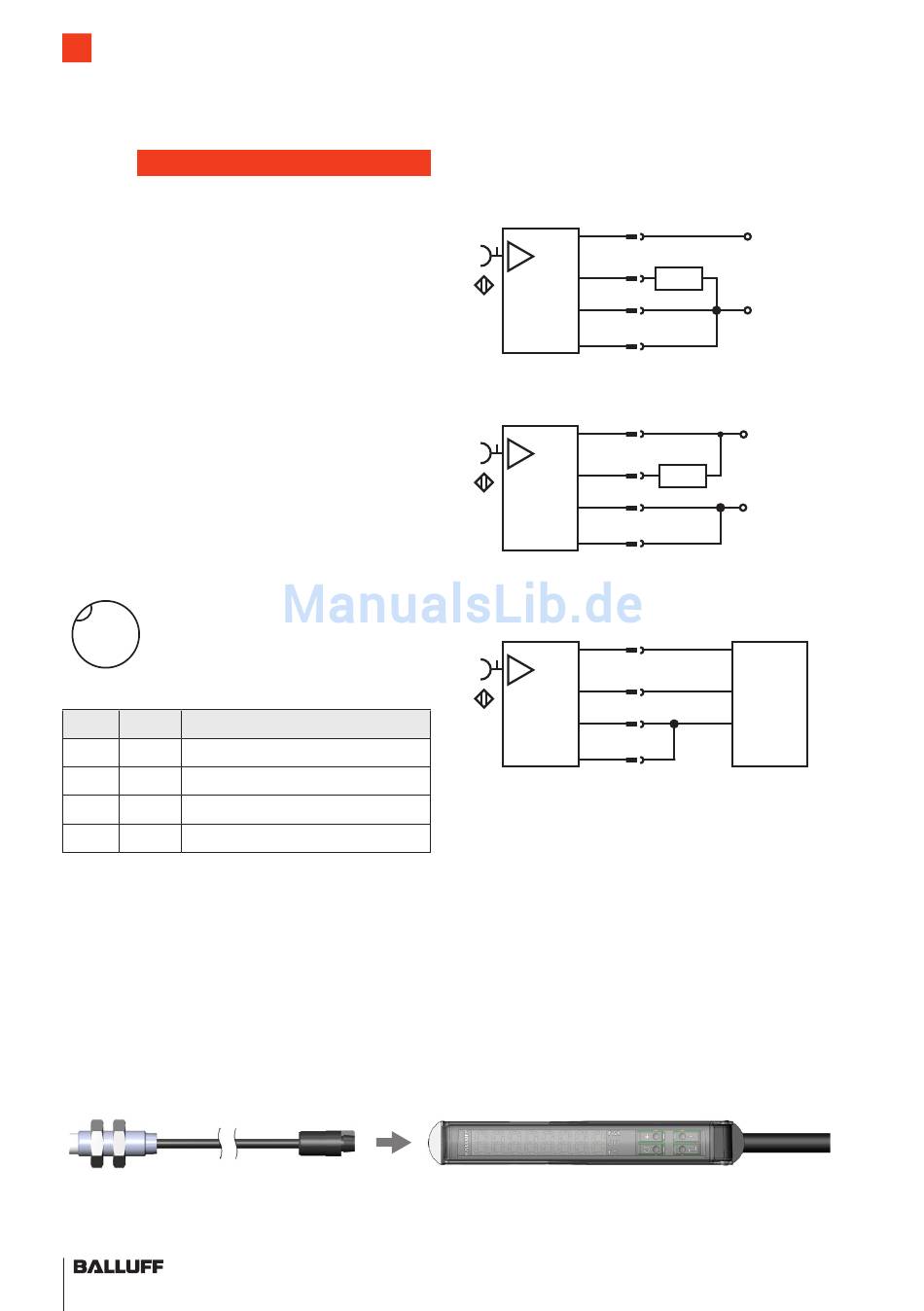

1.1.2
SIO mode
PNP
BN
1
+
3
BK
4
OUT
BU
3
–
WH
2
ext. prog.
NPN
BN
1
+
3
BK
4
OUT
BU
3
–
WH
2
ext. prog.
1.1.3
IO-Link operation
BN
1
+
3
BK
4
OUT
BU
3
–
WH
2
ext. prog.
+
–
+
–
+
C/Q
–
Master
