4

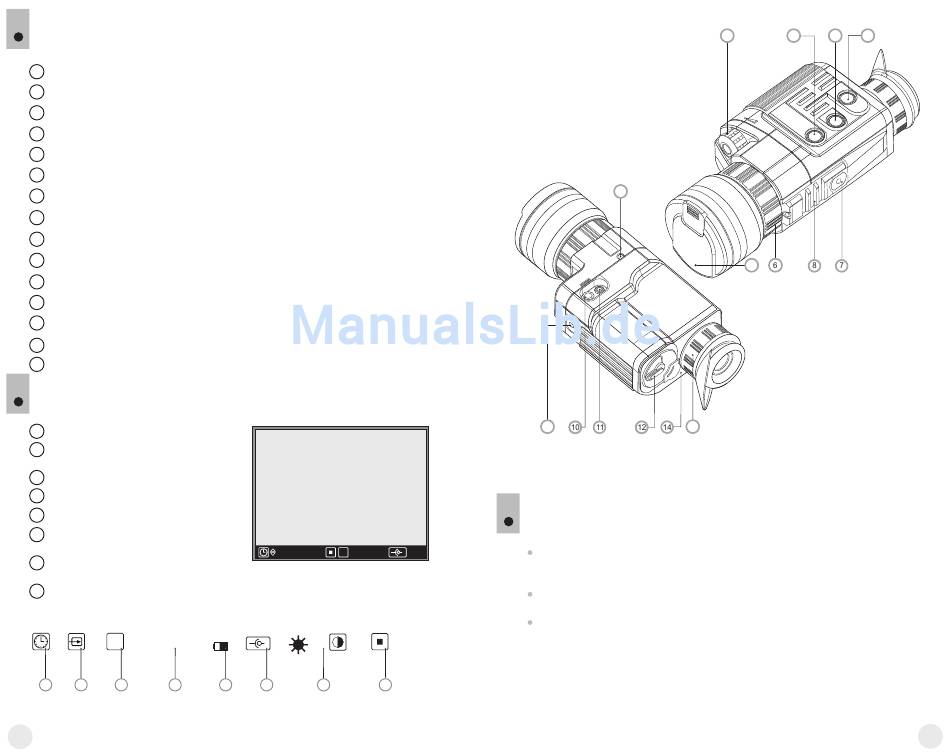

COMPONENTS AND CONTROL ELEMENTS

"ON" button
1
2 "CAL" button
3 "ZOOM/INVERT" button
4 Lens cap
5 Encoder
6 Ring for lens internal focusing
7
¼" tripod mount
8
Weaver mounting rail
9 Second ¼" tripod mount
10 External power supply jack
Video out
11
12 Battery compartment
13 Eyepiece
LED indicator
14
15 Lens cap storage hole
5
DATA PANEL ICONS
Clock setup
A
Video output signal
B
selection
2x digital zoom
C
Clock
D
Low battery indicator
E
Indication for external power
F
supply
Brightness and contrast
G
adjustment
White hot / Black hot modes
H
x2
00 00 AM
A B C D
4
24 16:12 x2 16:12
12
E F G H
15
9
6

INSTALLATION OF BATTERIES

Turn the lever of the battery compartment (12) 90 degrees in "Open"
position and, pulling by the lug of the cover, remove the battery
container.
Install four AA batteries (or rechargeable batteries) observing polarity
shown on the battery container.
Insert the battery container into the battery compartment and turn the
lever 90 degrees clockwise. '
Note: to ensure long and reliable operation it is recommended that you use quality
rechargeable batteries with a capacity of at least 2500 mAh. Please do not use batteries of
different types or batteries with various charge levels.
5 3 2 1
4
13
5
