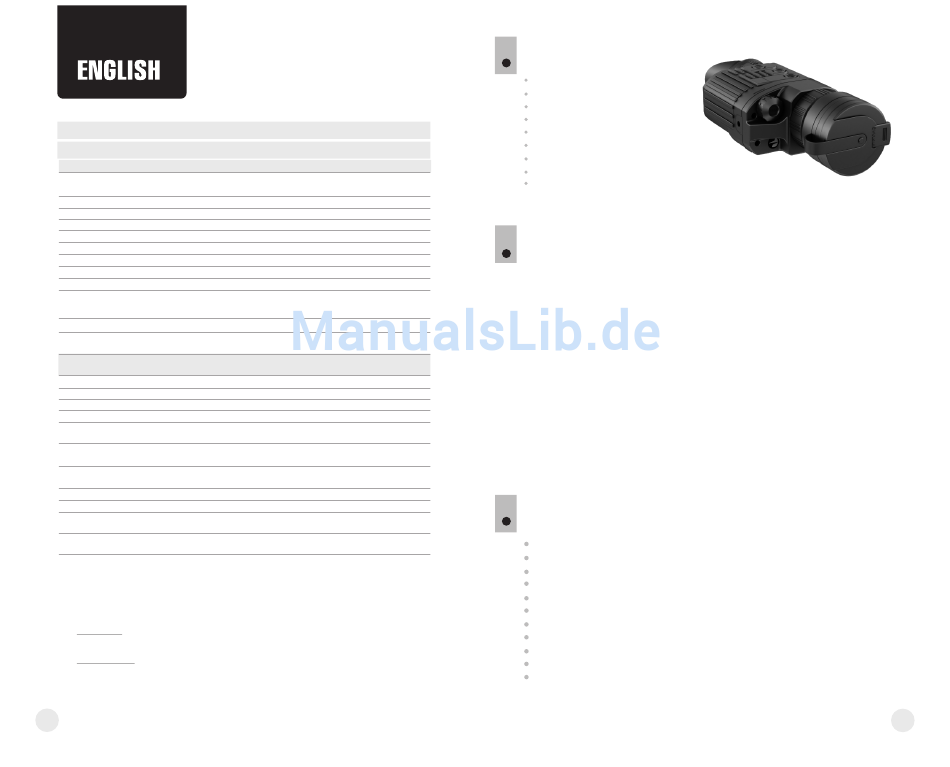

SPECIFICATIONS:

SKU
77301
MODEL Quantum HD 38
Optical characteristics
Detector type UL 03 16 2
Uncooled microbolometer
Refresh rate 30 Hz
Magnification, x 2.1
Digital zoom, x 2
Resolution, pixels 384x288
OLED Display size 0.31"
Close-up range, m 2
Exit pupil, mm 8
Spectral range, µm 7.7-13.2
Field of view, degree
- horizontal 14.4
- vertical 10.8
Diopter adjustment, D +5/-5
Max. detection range,
m/ yd*
900 / 985
Operational
characteristics
Start-up time (approx.), sec
10
Power supply 4÷6 V
Battery type 4xАА
External power supply 8,4-15 V
Operating time on battery
pack EPS3 / EPS5) 9/20
Operating time on a battery
set, approx. At least two hours
Degree of protection, IP
code (IEC60529)
IPХ4
Video output PAL/NTSC
Operating temperature from -20 °С to +50 °С, humidity up to 90%
Dimensions, mm 200x86x59
inch
7.9x3.4x2.3
Weight (without/with batteries), 470/560//
g // oz 16.6/19.7
* Max. detection range of an object measuring 1.7x0.5 m
PRODUCT NAME LEGEND:
Example: Quantum HD 38
First letter:
"H" – refresh rate 30 Hz;
"L" – refresh rate 9 Hz.
Second letter:
"D" – detector size 384x288;
"S" – detector size 160x120.
Figure "38" or "19" stands for lens focal length - 38 mm or 19 mm
2
77302 77307 77308
Quantum LD 38 Quantum HS 19 Quantum LS 19
UL 03 16 2 UL 02 15 2 UL 02 15 2
Uncooled microbolometer
9 Hz 30 Hz 9 Hz
2.5 2.5
2.1
n/a n/a
2
384x288 160x120 160x120
0.31" 0.31" 0.31"
2 2 2
8 8 8
7.7-13.2 8.3-13.6 8.3-13.6
14.4 12 12
10.8 9 9
+5/-5 +5/-5 +5/-5
900 / 985 450 / 490 450 / 490
10 10 10
4÷6 V 4÷6 V 4÷6 V
4xАА 4xАА
4xАА
8,4-15 V 8,4-15 V 8,4-15 V
9/20 9/20 9/20
At least two hours
IPХ4 IPХ4 IPХ4
PAL/NTSC PAL/NTSC
PAL/NTSC
200x86x59 177x86x58 177x86x58
7.9x3.4x2.3 7x3.4x2.3 7x3.4x2.3
470/560// 400/490// 400/490//
16.6/19.7 14.1/17.3 14.1/17.3
1

PACKAGE CONTENTS

Thermal Imaging Scope
Carrying case
User manual
Video cable
Hand strap
Automotive cigarette lighter adapter
Spare battery container
Cleaning cloth
Warranty card
For improvement purposes, design of this product is
subject to change.
2
DESCRIPTION
Digital thermal imaging scopes Quantum based on IR sensor (uncooled
microbolometer) are represented by a number of models featuring
various resolution, magnification and lens diameter. The scopes are
designed for the use both in the nighttime and in the daylight in inclement
weather conditions (fog, smog, rain) to see through obstacles hindering
detection of targets (branches, tallgrass, thick bushes etc.). Unlike the
image intensifier tube based night vision devices, thermal imaging
scopes Quantum do not require an external source of light and are not
affected by bright light exposure.
Thermal imaging scopes Quantum have a wide range application
including night hunting, observation and terrain orientation, search and
rescue operations.
3
FEATURES
Detector size 384x288 or 160x120 pixels
Quality OLED display (640x480 pixels)
Magnification 2,1x/2,5x
2x digital zoom (384x288 models only)
High-aperture lens
Wide field of view
External power supply
Video output enabling recording
Modes "White hot" and "Black hot"
Ergonomic body
Two ¼" tripod mounts
