Video output enabling recording
џ
Defective pixel repair option
џ
Extra Weaver rail for accessories
џ
Wireless remote control
џ
Wide range of display brightness and contrast adjustment with memorization
џ
of user settings
Display off function – protects against decamouflage and quick power on for
џ
immediate use
4

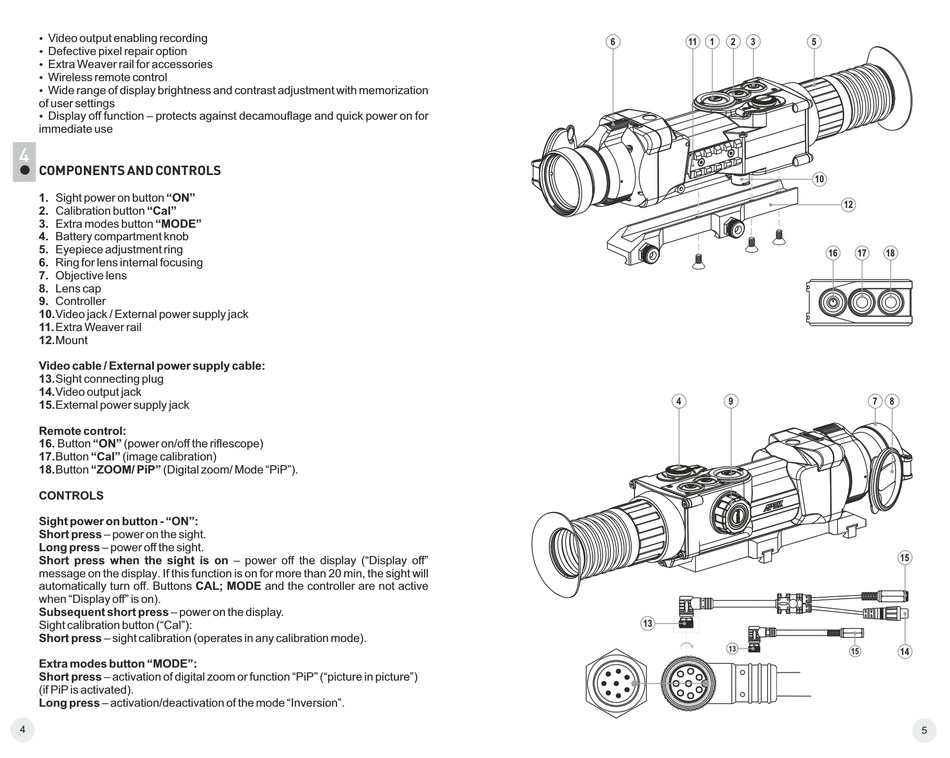

COMPONENTS AND CONTROLS

1. Sight power on button "ON"
2. Calibration button "Cal"
3. Extra modes button "MODE"
4. Battery compartment knob
5. Eyepiece adjustment ring
6. Ring for lens internal focusing
7. Objective lens
8. Lens cap
9. Controller
10. Video jack / External power supply jack
11. Extra Weaver rail
12. Mount
Video cable / External power supply cable:
13. Sight connecting plug
14. Video output jack
15. External power supply jack
Remote control:
16. Button "ON" (power on/off the riflescope)
17. Button "Cal" (image calibration)
18. Button "ZOOM/ PiP" (Digital zoom/ Mode "PiP").
CONTROLS
Sight power on button - "ON":
Short press – power on the sight.
Long press – power off the sight.
Short press when the sight is on – power off the display ("Display off"
message on the display. If this function is on for more than 20 min, the sight will
automatically turn off. Buttons CAL; MODE and the controller are not active
when "Display off" is on).
Subsequent short press – power on the display.
Sight calibration button ("Cal"):
Short press – sight calibration (operates in any calibration mode).
Extra modes button "MODE":
Short press – activation of digital zoom or function "PiP" ("picture in picture")
(if PiP is activated).
Long press – activation/deactivation of the mode "Inversion".
