Symbols and their meaning
Starting the operation of the display
Drilling

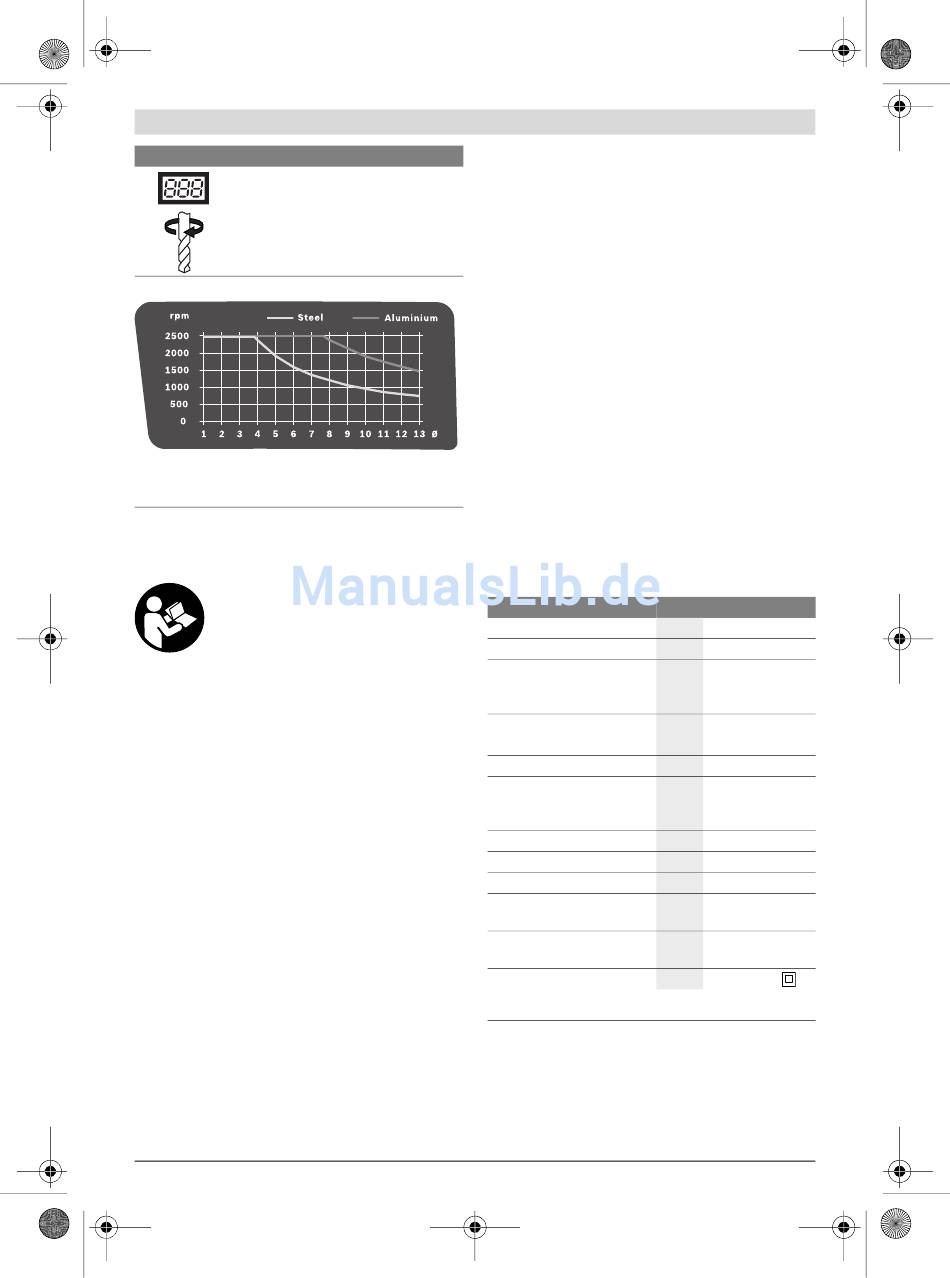

Speed Diagram
The diagram provides the speed (rpm) to be set dependent
on the drill bit diameter (Ø in mm) for the materials (Steel)
and (Aluminium).
Product Description and Specifica-
tions
Read all safety warnings and all instruc-
tions. Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Intended Use
In conjunction with the suitable application tools, the ma-
chine is intended for drilling in wood, metal, and plastic.
The light of this power tool is intended to illuminate the power
tool's direct area of working operation and is not suitable for
household room illumination.
Product Features
The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.
1 Base plate
2 Quick-clamping lever
3 Quick-clamQuick-clamping deviceping device
4 Drilling column
5 Rack
6 Speed diagram
7 Clamping lever of the height adjustment
8 Clamping lever of depth stop
9 Depth stop
10 Laser warning label
11 Handwheel
12 Motor unit
13 On/Off switch with Quick-Stop function
14 Display
15 Speed regulator
Bosch Power Tools
16 Keyless chuck
17 Tool bit*
18 Mounting holes
19 Parallel guide
20 Wing bolts of the parallel guide
21 Gear selector
22 Illumination and laser unit
23 Allen key (4 mm)
24 Fastening screw of the drilling column
25 Guide cog of the drilling column
26 Guide groove of the base plate
27 Securing ring
28 Holding ring
29 Clamping sleeve
30 Illumination button
31 Laser-cross button
32 Button for speed indication/drilling-depth indication
33 Zero-point button
34 Set screws for clamping force of the brake
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
Technical Data
Drill Press
Article number
Rated power input
No-load speed
– 1st gear
– 2nd gear
Laser type
Laser class
Max. drilling dia.
– Steel
– Wood
Chuck clamping range
Drill stroke, max.
Total height
Size of base plate
(Width x depth x height)
Weight according to
EPTA-Procedure 01/2003
Protection class
The values given are valid for a nominal voltage [U] of 230 V. For differ-
ent voltages and models for specific countries, these values can vary.
Noise/Vibration Information
Measured sound values determined according to EN 61029.
Typically the A-weighted noise levels of the product are:
Sound pressure level 77 dB(A); Sound power level 90 dB(A).
Uncertainty K =3 dB.
Wear hearing protection!
English | 19
PBD 40
3 603 M07 0..
W
710
-1
min
200 –850
-1
min
600 –2500
nm
650
mW
< 1
2
mm
13
mm
40
mm
1.5 –13
mm
90
mm
650
mm
330 x 350 x 30
kg
11.2
/II
1 619 929 L21 | (12.9.13)
