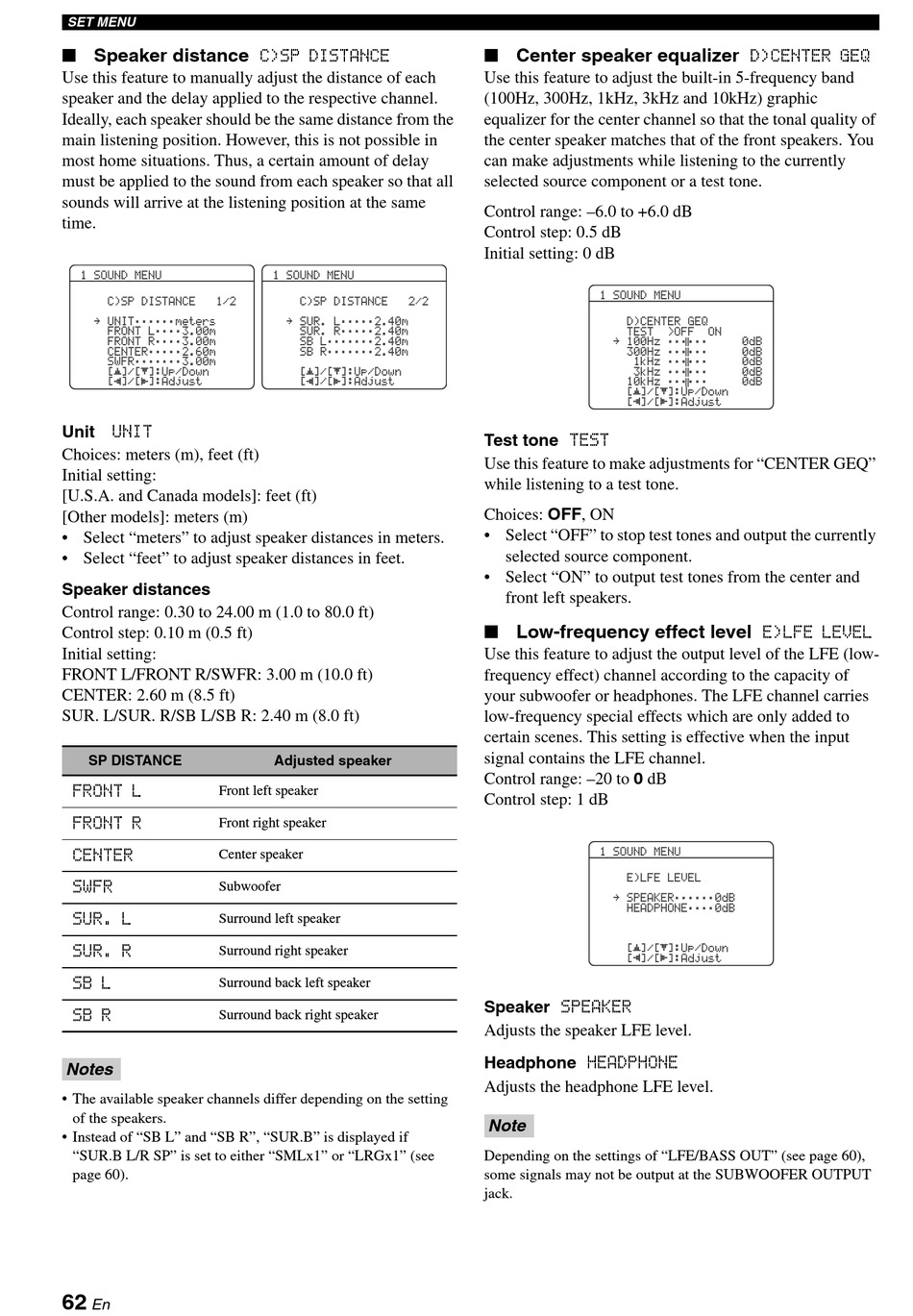

SET MENU

■ Speaker distance

Use this feature to manually adjust the distance of each
speaker and the delay applied to the respective channel.
Ideally, each speaker should be the same distance from the
main listening position. However, this is not possible in
most home situations. Thus, a certain amount of delay
must be applied to the sound from each speaker so that all
sounds will arrive at the listening position at the same
time.
1 SOUND MENU
C)SP DISTANCE 1/2
. UNIT;;;;;;meters
FRONT L;;;;3.00m
FRONT R;;;;3.00m
CENTER;;;;;2.60m
SWFR;;;;;;;3.00m
[ ]/[ ]:Up/Down
p [
[ ]/[ ]:Adjust
Unit UNIT
Choices: meters (m), feet (ft)
Initial setting:
[U.S.A. and Canada models]: feet (ft)
[Other models]: meters (m)
• Select "meters" to adjust speaker distances in meters.
• Select "feet" to adjust speaker distances in feet.
Speaker distances
Control range: 0.30 to 24.00 m (1.0 to 80.0 ft)
Control step: 0.10 m (0.5 ft)
Initial setting:
FRONT L/FRONT R/SWFR: 3.00 m (10.0 ft)
CENTER: 2.60 m (8.5 ft)
SUR. L/SUR. R/SB L/SB R: 2.40 m (8.0 ft)
SP DISTANCE
FRONT L
Front left speaker
FRONT R
Front right speaker
CENTER
Center speaker
SWFR
Subwoofer
SUR. L
Surround left speaker
SUR. R
Surround right speaker
SB L
Surround back left speaker
SB R
Surround back right speaker
Notes
• The available speaker channels differ depending on the setting
of the speakers.
• Instead of "SB L" and "SB R", "SUR.B" is displayed if
"SUR.B L/R SP" is set to either "SMLx1" or "LRGx1" (see
page 60).
62
En
C)SP DISTANCE
1 SOUND MENU
C)SP DISTANCE 2/2
. SUR. L;;;;;2.40m
SUR. R;;;;;2.40m
SB L;;;;;;;2.40m
SB R;;;;;;;2.40m
[ ]/[ ]:Up/Down
p [
[ ]/[ ]:Adjust
Adjusted speaker
■ Center speaker equalizer
Use this feature to adjust the built-in 5-frequency band
(100Hz, 300Hz, 1kHz, 3kHz and 10kHz) graphic
equalizer for the center channel so that the tonal quality of
the center speaker matches that of the front speakers. You
can make adjustments while listening to the currently
selected source component or a test tone.
Control range: –6.0 to +6.0 dB
Control step: 0.5 dB
Initial setting: 0 dB
1 SOUND MENU
D)CENTER GEQ
TEST
. 100Hz ;;;;;;
300Hz ;;;;;;
1kHz ;;;;;;
3kHz ;;;;;;
10kHz ;;;;;;
[ ]/[ ]:Up/Down
p
[ ]/[ ]:Adjust
Test tone TEST
Use this feature to make adjustments for "CENTER GEQ"
while listening to a test tone.
Choices: OFF, ON
• Select "OFF" to stop test tones and output the currently
selected source component.
• Select "ON" to output test tones from the center and
front left speakers.
■ Low-frequency effect level
Use this feature to adjust the output level of the LFE (low-
frequency effect) channel according to the capacity of
your subwoofer or headphones. The LFE channel carries
low-frequency special effects which are only added to
certain scenes. This setting is effective when the input
signal contains the LFE channel.
Control range: –20 to 0 dB
Control step: 1 dB
1 SOUND MENU
E)LFE LEVEL
. SPEAKER;;;;;;0dB
HEADPHONE;;;;0dB
[ ]/[ ]:Up/Down
p
[ ]/[ ]:Adjust
Speaker SPEAKER
Adjusts the speaker LFE level.
Headphone HEADPHONE
Adjusts the headphone LFE level.
Note
Depending on the settings of "LFE/BASS OUT" (see page 60),
some signals may not be output at the SUBWOOFER OUTPUT
jack.
D)CENTER GEQ
>OFF ON
0dB
0dB
0dB
0dB
0dB
[
E)LFE LEVEL
[
