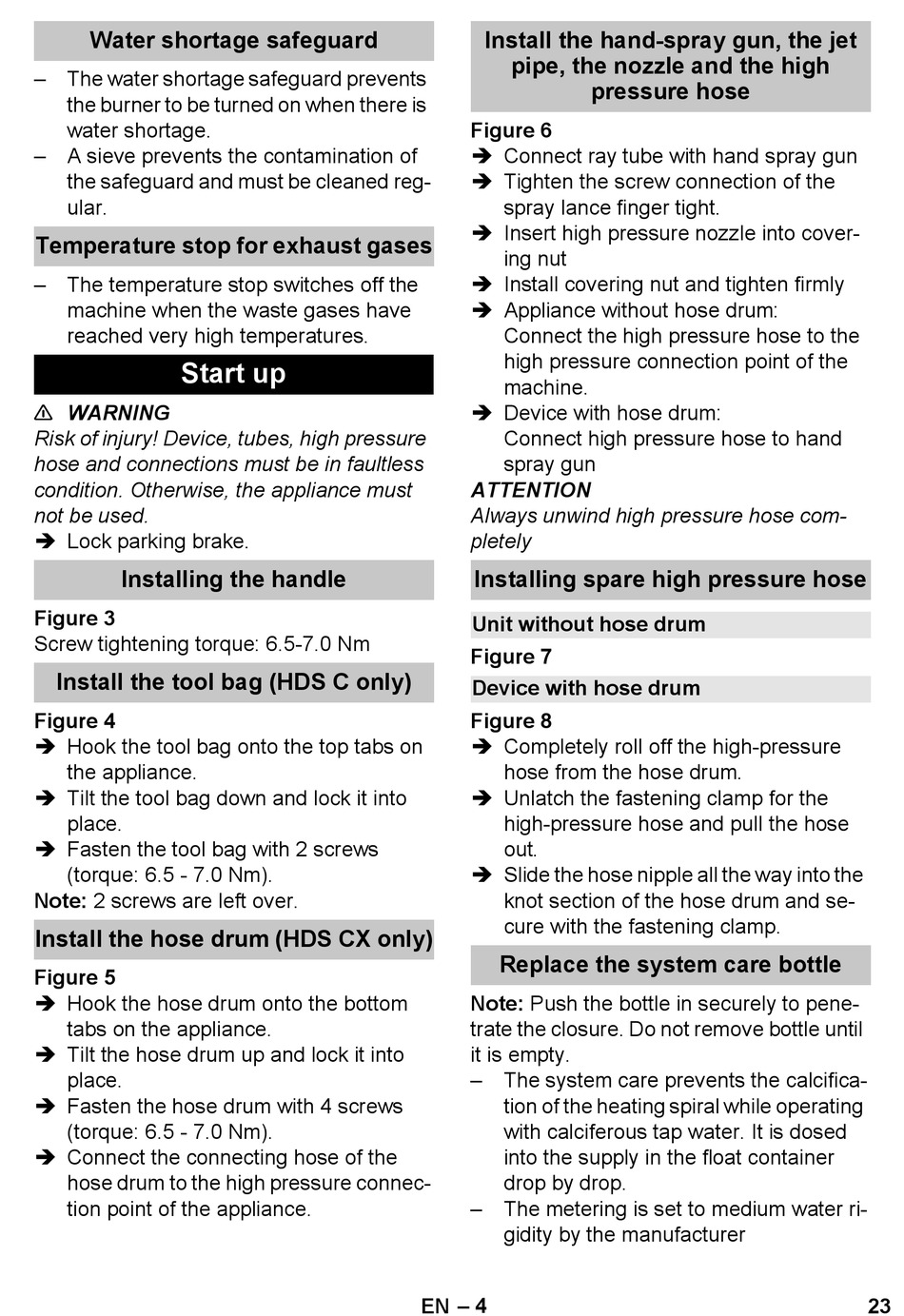

Water shortage safeguard
– The water shortage safeguard prevents
the burner to be turned on when there is
water shortage.
– A sieve prevents the contamination of
the safeguard and must be cleaned reg-
ular.
Temperature stop for exhaust gases
– The temperature stop switches off the
machine when the waste gases have
reached very high temperatures.

Start up

WARNING
Risk of injury! Device, tubes, high pressure
hose and connections must be in faultless
condition. Otherwise, the appliance must
not be used.
 Lock parking brake.

Installing the handle

Figure 3
Screw tightening torque: 6.5-7.0 Nm
Install the tool bag (HDS C only)
Figure 4
 Hook the tool bag onto the top tabs on
the appliance.
 Tilt the tool bag down and lock it into
place.
 Fasten the tool bag with 2 screws
(torque: 6.5 - 7.0 Nm).
Note: 2 screws are left over.
Install the hose drum (HDS CX only)
Figure 5
 Hook the hose drum onto the bottom
tabs on the appliance.
 Tilt the hose drum up and lock it into
place.
 Fasten the hose drum with 4 screws
(torque: 6.5 - 7.0 Nm).
 Connect the connecting hose of the
hose drum to the high pressure connec-
tion point of the appliance.
Install the hand-spray gun, the jet
pipe, the nozzle and the high
Figure 6
 Connect ray tube with hand spray gun
 Tighten the screw connection of the
spray lance finger tight.
 Insert high pressure nozzle into cover-
ing nut
 Install covering nut and tighten firmly
 Appliance without hose drum:
Connect the high pressure hose to the
high pressure connection point of the
machine.
 Device with hose drum:
Connect high pressure hose to hand
spray gun
ATTENTION
Always unwind high pressure hose com-
pletely
Installing spare high pressure hose
Unit without hose drum
Figure 7
Device with hose drum
Figure 8
 Completely roll off the high-pressure
hose from the hose drum.
 Unlatch the fastening clamp for the
high-pressure hose and pull the hose
out.
 Slide the hose nipple all the way into the
knot section of the hose drum and se-
cure with the fastening clamp.
Replace the system care bottle
Note: Push the bottle in securely to pene-
trate the closure. Do not remove bottle until
it is empty.
– The system care prevents the calcifica-
tion of the heating spiral while operating
with calciferous tap water. It is dosed
into the supply in the float container
drop by drop.
– The metering is set to medium water ri-
gidity by the manufacturer
– 4
EN
pressure hose
