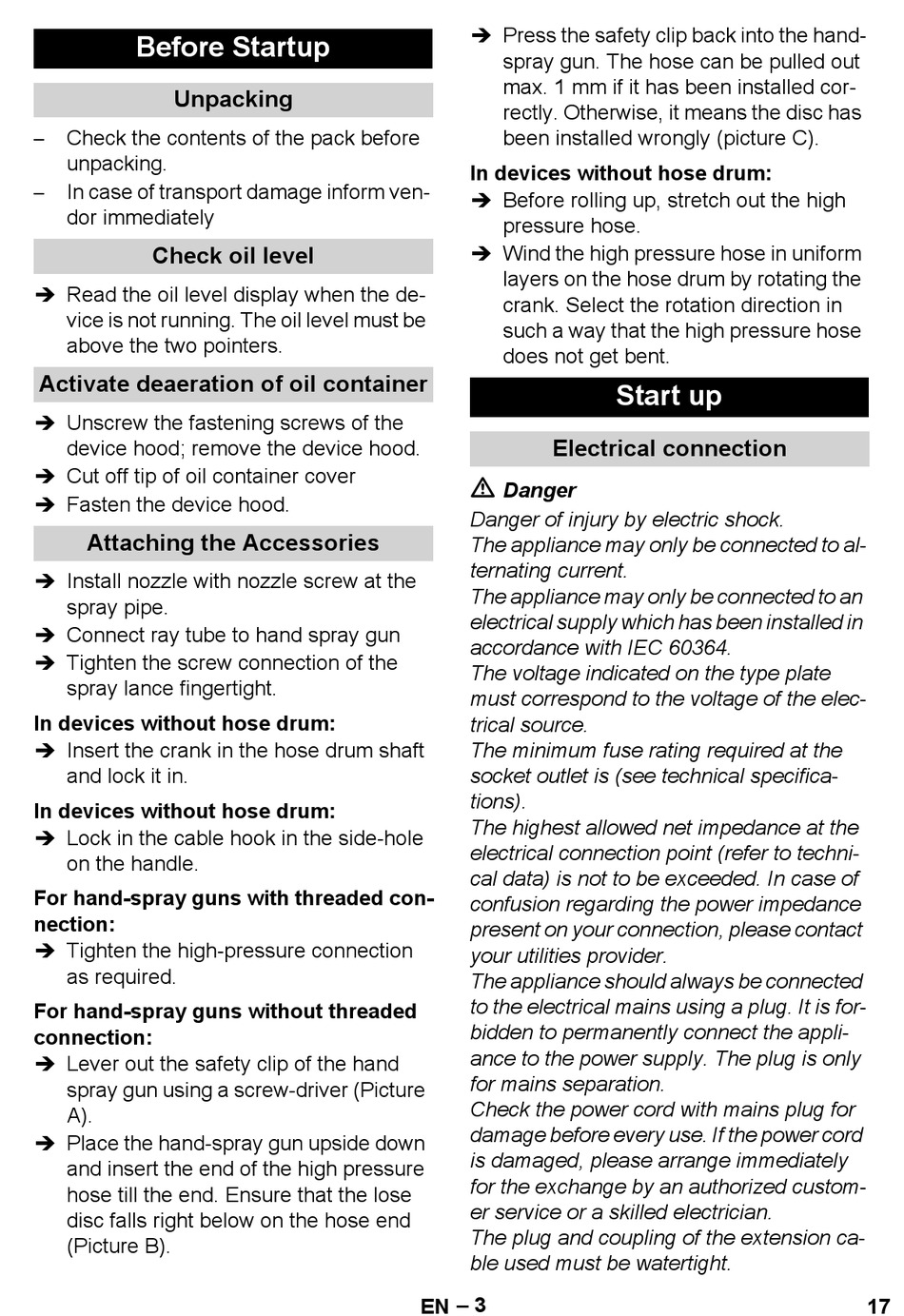

Before Startup

Unpacking

Check the contents of the pack before
–
unpacking.
In case of transport damage inform ven-
–
dor immediately
Check oil level
 Read the oil level display when the de-
vice is not running. The oil level must be
above the two pointers.
Activate deaeration of oil container
 Unscrew the fastening screws of the
device hood; remove the device hood.
 Cut off tip of oil container cover
 Fasten the device hood.

Attaching the Accessories

 Install nozzle with nozzle screw at the
spray pipe.
 Connect ray tube to hand spray gun
 Tighten the screw connection of the
spray lance fingertight.
In devices without hose drum:
 Insert the crank in the hose drum shaft
and lock it in.
In devices without hose drum:
 Lock in the cable hook in the side-hole
on the handle.
For hand-spray guns with threaded con-
nection:
 Tighten the high-pressure connection
as required.
For hand-spray guns without threaded
connection:
 Lever out the safety clip of the hand
spray gun using a screw-driver (Picture
A).
 Place the hand-spray gun upside down
and insert the end of the high pressure
hose till the end. Ensure that the lose
disc falls right below on the hose end
(Picture B).
 Press the safety clip back into the hand-
spray gun. The hose can be pulled out
max. 1 mm if it has been installed cor-
rectly. Otherwise, it means the disc has
been installed wrongly (picture C).
In devices without hose drum:
 Before rolling up, stretch out the high
pressure hose.
 Wind the high pressure hose in uniform
layers on the hose drum by rotating the
crank. Select the rotation direction in
such a way that the high pressure hose
does not get bent.

Electrical connection

Danger
Danger of injury by electric shock.
The appliance may only be connected to al-
ternating current.
The appliance may only be connected to an
electrical supply which has been installed in
accordance with IEC 60364.
The voltage indicated on the type plate
must correspond to the voltage of the elec-
trical source.
The minimum fuse rating required at the
socket outlet is (see technical specifica-
tions).
The highest allowed net impedance at the
electrical connection point (refer to techni-
cal data) is not to be exceeded. In case of
confusion regarding the power impedance
present on your connection, please contact
your utilities provider.
The appliance should always be connected
to the electrical mains using a plug. It is for-
bidden to permanently connect the appli-
ance to the power supply. The plug is only
for mains separation.
Check the power cord with mains plug for
damage before every use. If the power cord
is damaged, please arrange immediately
for the exchange by an authorized custom-
er service or a skilled electrician.
The plug and coupling of the extension ca-
ble used must be watertight.
– 3
EN

Start up
