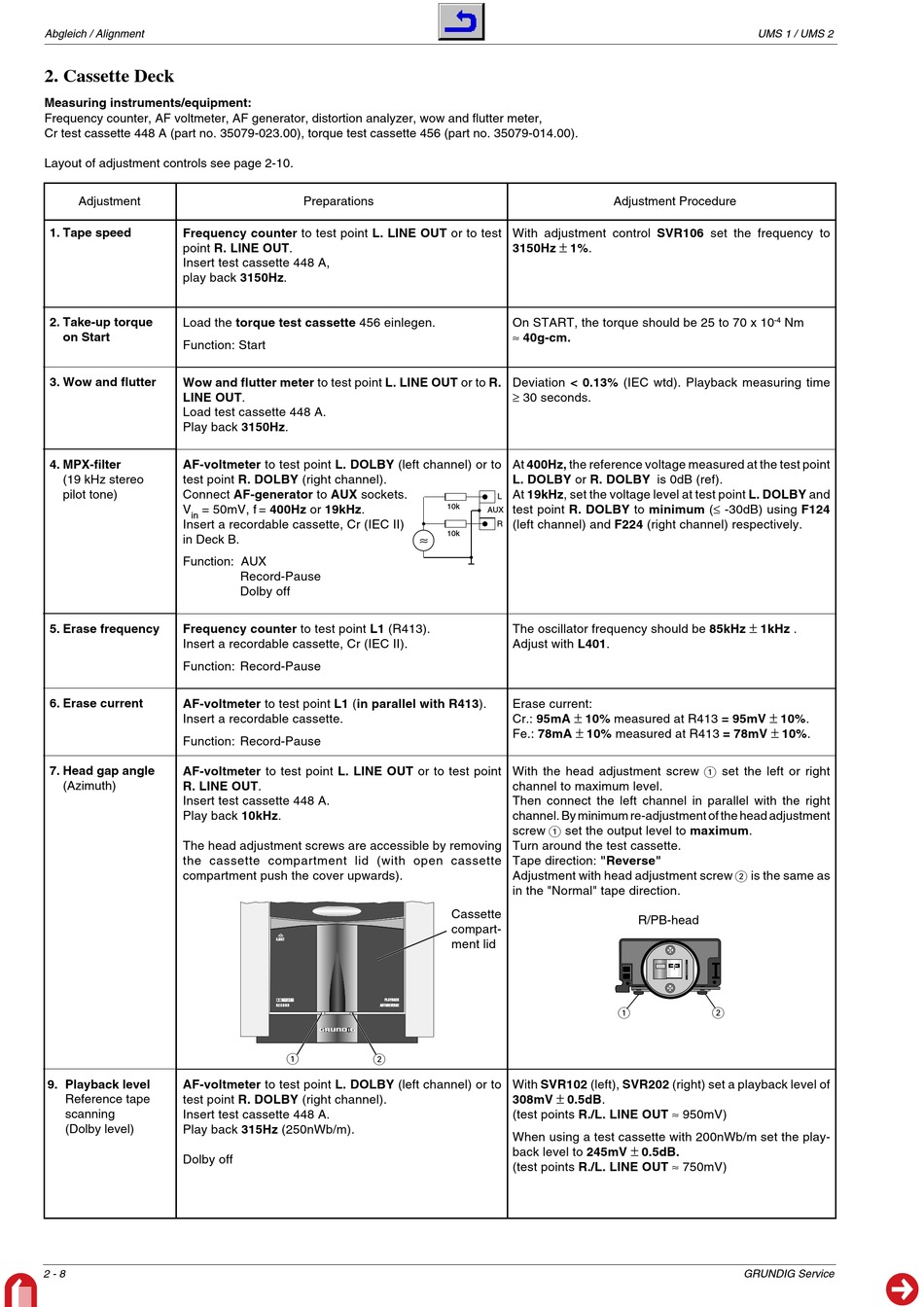

Cassette Deck - Grundig UMS 1 Serviceanleitung

Abgleich / Alignment

2. Cassette Deck

Measuring instruments/equipment:
Frequency counter, AF voltmeter, AF generator, distortion analyzer, wow and flutter meter,
Cr test cassette 448 A (part no. 35079-023.00), torque test cassette 456 (part no. 35079-014.00).
Layout of adjustment controls see page 2-10 .
Adjustment
1. Tape speed Frequency counter to test point L. LINE OUT or to test
point R. LINE OUT.
Insert test cassette 448 A,
play back 3150Hz.
2. Take-up torque Load the torque test cassette 456 einlegen.
on Start
Function: Start
3. Wow and flutter
Wow and flutter meter to test point L. LINE OUT or to R.
LINE OUT.
Load test cassette 448 A.
Play back 3150Hz.
4. MPX-filter AF-voltmeter to test point L. DOLBY (left channel) or to
(19 kHz stereo test point R. DOLBY (right channel).
pilot tone) Connect AF-generator to AUX sockets.
V = 50mV, f = 400Hz or 19kHz.
in
Insert a recordable cassette, Cr (IEC II)
in Deck B.
Function: AUX
5. Erase frequency Frequency counter to test point L1 (R413).
Insert a recordable cassette, Cr (IEC II).
Function: Record-Pause
6. Erase current
AF-voltmeter to test point L1 (in parallel with R413).
Insert a recordable cassette.
Function: Record-Pause
7. Head gap angle AF-voltmeter to test point L. LINE OUT or to test point
(Azimuth) R. LINE OUT.
Insert test cassette 448 A.
Play back 10kHz.
The head adjustment screws are accessible by removing
the cassette compartment lid (with open cassette
compartment push the cover upwards).
9. Playback level AF-voltmeter to test point L. DOLBY (left channel) or to
Reference tape test point R. DOLBY (right channel).
scanning
Insert test cassette 448 A.
(Dolby level) Play back 315Hz (250nWb/m).
Dolby off
2 - 8
Preparations
Record-Pause
Dolby off
?
EJECT
0
PLAYBACK
DOLBY B NR
R E C O R D AUTOREVERSE
1 2
With adjustment control SVR106 set the frequency to
±
3150Hz 1%.
On START, the torque should be 25 to 70 x 10
≈ 40g-cm.
Deviation < 0.13% (IEC wtd). Playback measuring time
≥ 30 seconds.
At 400Hz, the reference voltage measured at the test point
L. DOLBY or R. DOLBY is 0dB (ref).
At 19kHz, set the voltage level at test point L. DOLBY and
L
10k
test point R. DOLBY to minimum (≤ -30dB) using F124
AUX
(left channel) and F224 (right channel) respectively.
R
≈
10k
The oscillator frequency should be 85kHz
Adjust with L401.
Erase current:
±
Cr.: 95mA 10% measured at R413 = 95mV
±
Fe.: 78mA 10% measured at R413 = 78mV
With the head adjustment screw 1 set the left or right
channel to maximum level.
Then connect the left channel in parallel with the right
channel. By minimum re-adjustment of the head adjustment
screw 1 set the output level to maximum.
Turn around the test cassette.
Tape direction: "Reverse"
Adjustment with head adjustment screw 2 is the same as
in the "Normal" tape direction.
Cassette
compart-
ment lid
With SVR102 (left), SVR202 (right) set a playback level of
±
308mV 0.5dB.
(test points R./L. LINE OUT ≈ 950mV)
When using a test cassette with 200nWb/m set the play-
back level to 245mV
(test points R./L. LINE OUT ≈ 750mV)
UMS 1 / UMS 2
Adjustment Procedure
-4 Nm
±
1kHz .
±
10%.
±
10%.
R/PB-head
1 2
±
0.5dB.
