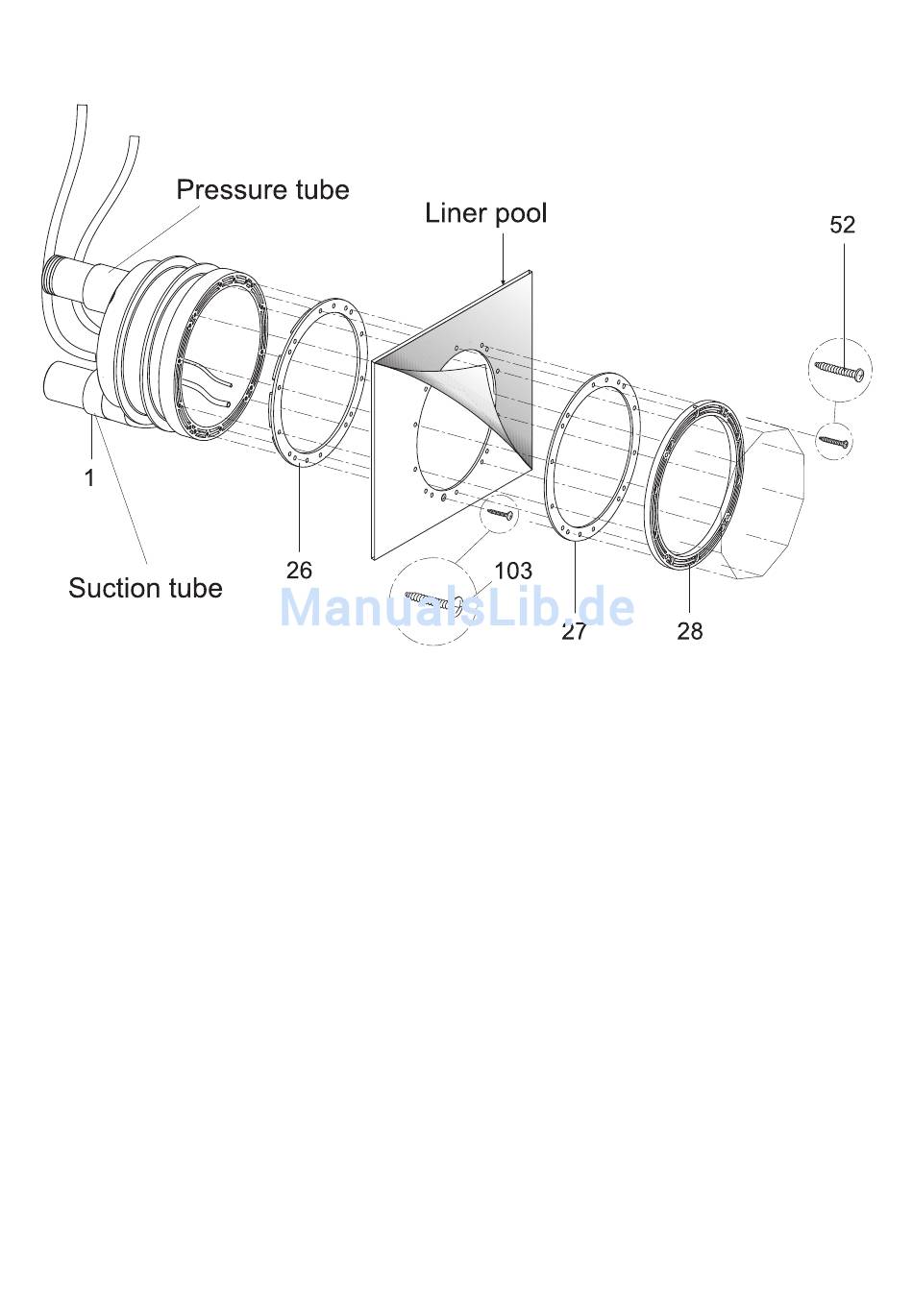

Fitting of the jet housing in liner pools
Press knob gasket (26) into jet housing (1) and place against
the back of the pool wall.
Fix the jet housing (1) from the front with the two self-tapping
screws (103) to the pool wall (without liner).
After installing the liner, fi x the jet housing with the ten self-tap-
ping screws (52) through clamping ring (28) and clamping ring
gasket (27) to the pool wall.
Attention:
ATTENTION:
The jet housing is made of ABS. If the suction and pressure
tubes are to be glued into the housing when the housing
is already in place, a minimum hardening time of 12 hours
must be observed.
Tighten the self-tapping screws only by hand.
Do not use force.
07.05.2008 TB-b bta badu jet smart_engl.indd
37
