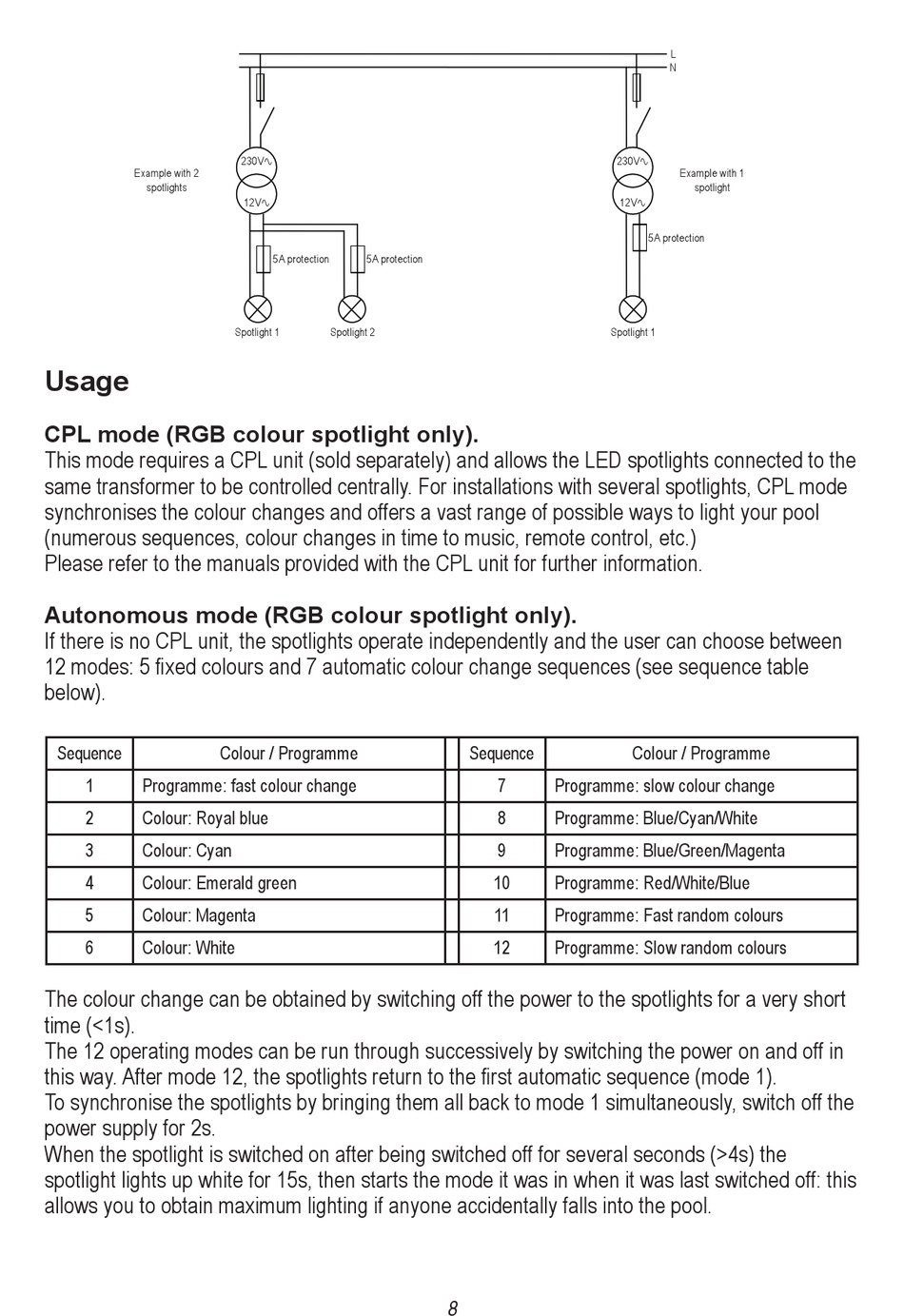

Hayward ColorLogic II Anwenderhandbuch Seite 9

Example with 2
spotlights
Usage
CPL mode (RGB colour spotlight only).
This mode requires a CPL unit (sold separately) and allows the LED spotlights connected to the
same transformer to be controlled centrally. For installations with several spotlights, CPL mode
synchronises the colour changes and offers a vast range of possible ways to light your pool
(numerous sequences, colour changes in time to music, remote control, etc.)
Please refer to the manuals provided with the CPL unit for further information.
Autonomous mode (RGB colour spotlight only).
If there is no CPL unit, the spotlights operate independently and the user can choose between
12 modes: 5 fixed colours and 7 automatic colour change sequences (see sequence table
below).
Sequence
1 Programme: fast colour change
2 Colour: Royal blue
3 Colour: Cyan
4 Colour: Emerald green
5 Colour: Magenta
6 Colour: White
The colour change can be obtained by switching off the power to the spotlights for a very short
time (<1s).
The 12 operating modes can be run through successively by switching the power on and off in
this way. After mode 12, the spotlights return to the first automatic sequence (mode 1).
To synchronise the spotlights by bringing them all back to mode 1 simultaneously, switch off the
power supply for 2s.
When the spotlight is switched on after being switched off for several seconds (>4s) the
spotlight lights up white for 15s, then starts the mode it was in when it was last switched off: this
allows you to obtain maximum lighting if anyone accidentally falls into the pool.
230V
12V
5A protection 5A protection
Spotlight 1 Spotlight 2
Colour / Programme
230V
Spotlight 1
Sequence
7 Programme: slow colour change
8 Programme: Blue/Cyan/White
9 Programme: Blue/Green/Magenta
10 Programme: Red/White/Blue
11 Programme: Fast random colours
12 Programme: Slow random colours
8
L
N
Example with 1
spotlight
12V
5A protection
Colour / Programme
