PeakTech 9035 Bedienungsanleitung Seite 44

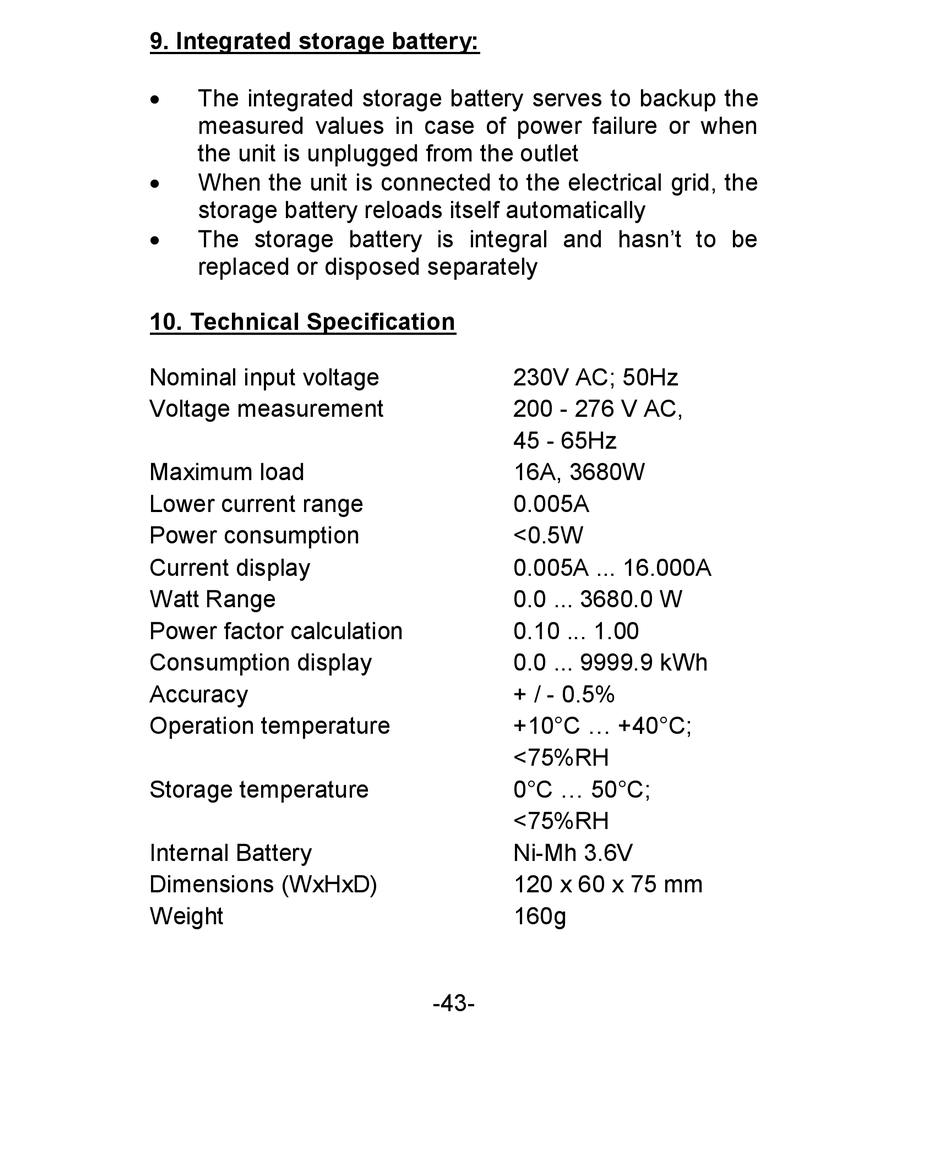

9. Integrated storage battery:
The integrated storage battery serves to backup the

measured values in case of power failure or when
the unit is unplugged from the outlet
 When the unit is connected to the electrical grid, the
storage battery reloads itself automatically
The storage battery is integral and hasn't to be

replaced or disposed separately
10. Technical Specification
Nominal input voltage
Voltage measurement
Maximum load
Lower current range
Power consumption
Current display
Watt Range
Power factor calculation
Consumption display
Accuracy
Operation temperature
Storage temperature
Internal Battery
Dimensions (WxHxD)
Weight
230V AC; 50Hz
200 - 276 V AC,
45 - 65Hz
16A, 3680W
0.005A
<0.5W
0.005A ... 16.000A
0.0 ... 3680.0 W
0.10 ... 1.00
0.0 ... 9999.9 kWh
+ / - 0.5%
+10°C ... +40°C;
<75%RH
0°C ... 50°C;
<75%RH
Ni-Mh 3.6V
120 x 60 x 75 mm
160g
-43-
