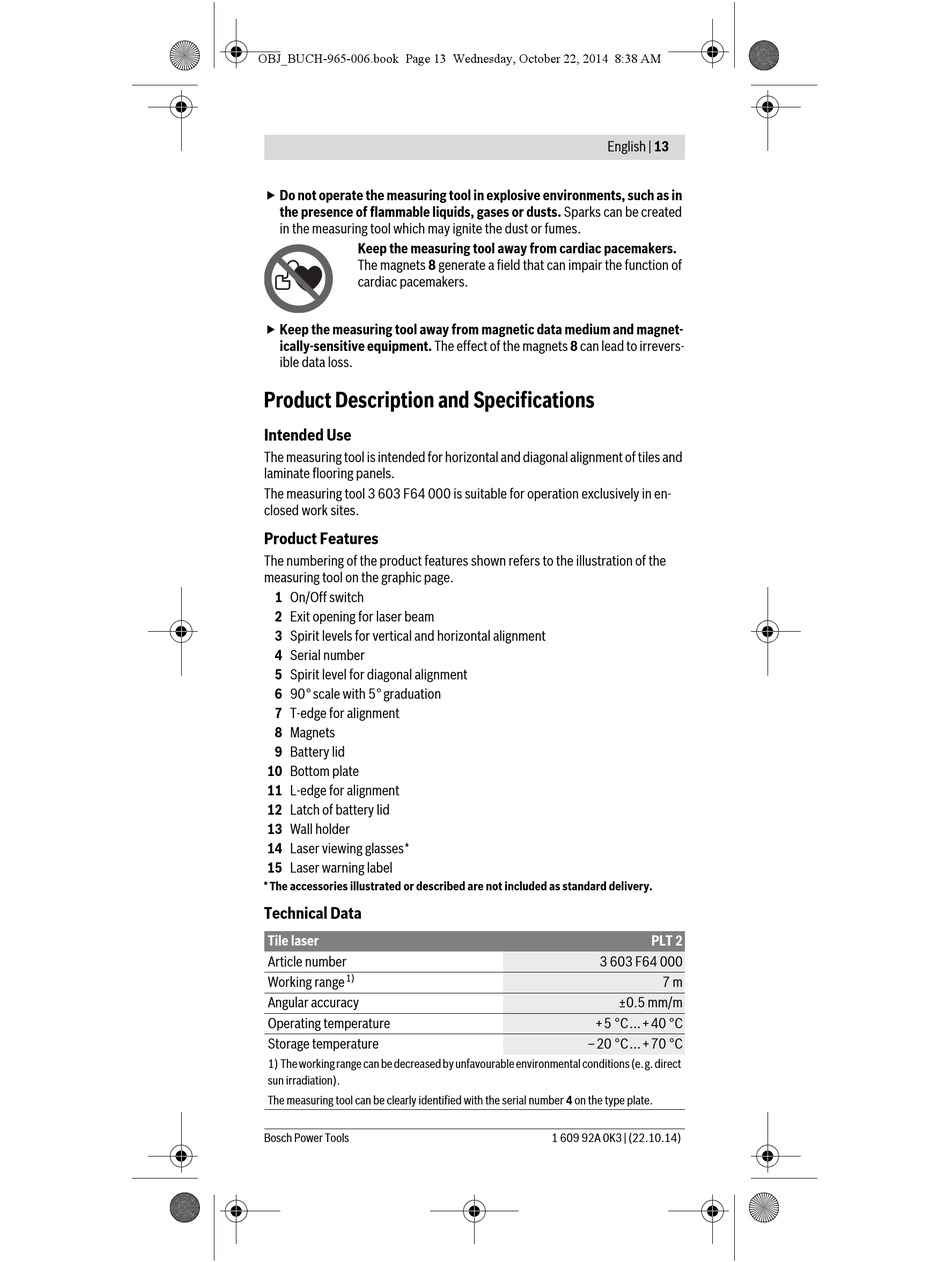

Product Description And Specifications; Intended Use; Product Features; Technical Data - Bosch PLT 2 Originalbetriebsanleitung

OBJ_BUCH-965-006.book Page 13 Wednesday, October 22, 2014 8:38 AM
 Do not operate the measuring tool in explosive environments, such as in
the presence of flammable liquids, gases or dusts. Sparks can be created
in the measuring tool which may ignite the dust or fumes.
Keep the measuring tool away from cardiac pacemakers.
The magnets 8 generate a field that can impair the function of
cardiac pacemakers.
 Keep the measuring tool away from magnetic data medium and magnet-
ically-sensitive equipment. The effect of the magnets 8 can lead to irrevers-
ible data loss.

Product Description and Specifications

Intended Use

The measuring tool is intended for horizontal and diagonal alignment of tiles and
laminate flooring panels.
The measuring tool 3 603 F64 000 is suitable for operation exclusively in en-
closed work sites.

Product Features

The numbering of the product features shown refers to the illustration of the
measuring tool on the graphic page.
1 On/Off switch
2 Exit opening for laser beam
3 Spirit levels for vertical and horizontal alignment
4 Serial number
5 Spirit level for diagonal alignment
6 90° scale with 5° graduation
7 T-edge for alignment
8 Magnets
9 Battery lid
10 Bottom plate
11 L-edge for alignment
12 Latch of battery lid
13 Wall holder
14 Laser viewing glasses*
15 Laser warning label
* The accessories illustrated or described are not included as standard delivery.

Technical Data

Tile laser
Article number
1)
Working range
Angular accuracy
Operating temperature
Storage temperature
1) The working range can be decreased by unfavourable environmental conditions (e.g. direct
sun irradiation).
The measuring tool can be clearly identified with the serial number 4 on the type plate.
Bosch Power Tools
English | 13
PLT 2
3 603 F64 000
7 m
±0.5 mm/m
+5 °C...+40 °C
–20 °C...+70 °C
1 609 92A 0K3 | (22.10.14)
