"Unlocked" setting:

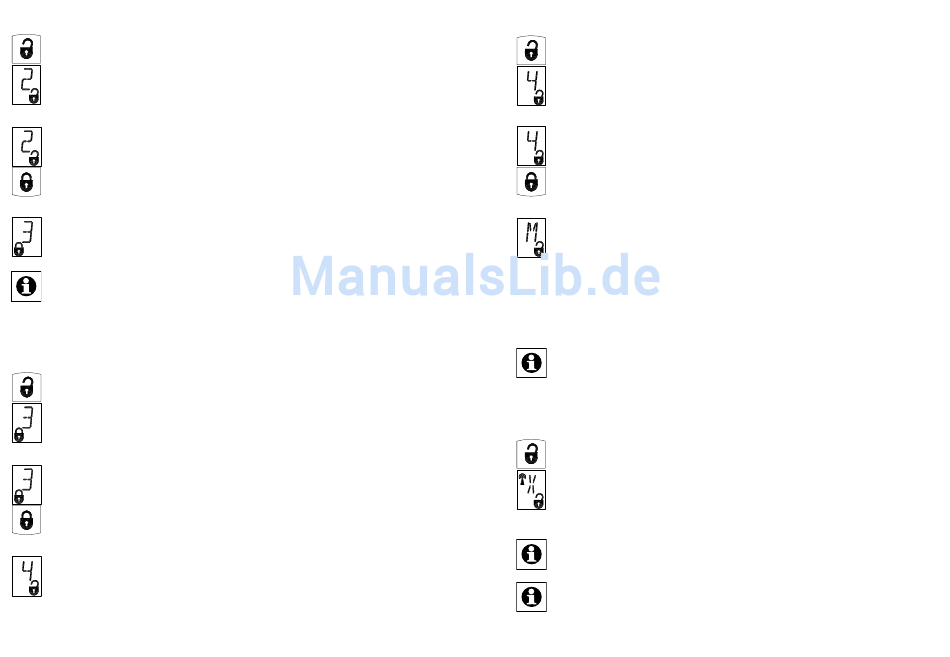

Briefly press the button "Unlock", the drive moves 90 degrees with each
press of the button toward "Unlock" (this move can be made multiple times).
Briefly press the button "Lock", the drive moves 90 degrees with each press
of the button toward "Lock" (this move can be made multiple times).
Briefly press the button "Setup", the display shows "3" for menu point 3
("Locked" setting).
The initialization move in the direction of "Locked" begins. This procedure
is only performed one time, unlike the unlocking initialization move. In this
case, fine-tuning is possible in 90 degree steps as well (if whenclosing,
only "1 x Locking" is desired for instance). This saves battery capacity and
enables faster locking and unlocking.
"Locked" setting:
Briefly press the button "Unlock", the drive moves 90 degrees with each
press of the button toward "Unlock" (this move can be made multiple times).
Briefly press the button "Lock", the drive moves 90 degrees with each press
of the button toward "Lock" (this move can be made multiple times).
Press the button "Setup", the move to programmed setting "Unlocked" is
started. The display shows "4" for menu point 4 (setting "holding time for
door latch"). The unlocking symbol flashes.
The holding time for the door latch can be set for the "Open door" function
now. In this case, note that the extended holding time also increases battery
consumption.
42
Holding time:
Briefly press the button "Unlock", the holding time is extended (approx. 2.5
seconds).
Briefly press button "Lock": Short holding timeBriefly press the "Setup" but-
ton after these settings are complete.Now, all settings are saved, the door
lock drive unlocks the lock and moves it to the neutral position.
The display shows the symbol "Unlocked" and "M".
This completes the basic settings.
7.2

Teaching remote controls and buttons

No remote control has been taught for the door lock drive when the system is
delivered. Radio operation is therefore impossible.
The first remote control that is taught is automatically the "Master" remote
control. Memory location "1" is reserved for this. In order to authenticate
other teach procedures (from other buttons(pairs) as well on the master
remote control as well), this is required!
Teach the first button pair of the Master remote control:
Press the top button "Unlock" for approx. 2 seconds, to start the teach
process.
Teach mode is ended automatically after teaching is successful, after
actuating any button on the drive or after 20 seconds after entry.
A beep is then emitted and "M" is shown on the display. Memory location
"1" is shown on the LC display.
The symbols for radio reception and "Unlock" flash; the door lock drive is
ready for teaching. Proceed as follows:
• Set the remote control to configuration mode and briefly press one of the
buttons of the button pair to be taught.
Briefly pressing the button pair that has now been taught can be used for
locking and unlocking, a longer press of the "Unlock" button can be used
for opening the door. This first taught button pair is for authenticating further
teach processes.
43
