〈5〉 Mounting the upper case

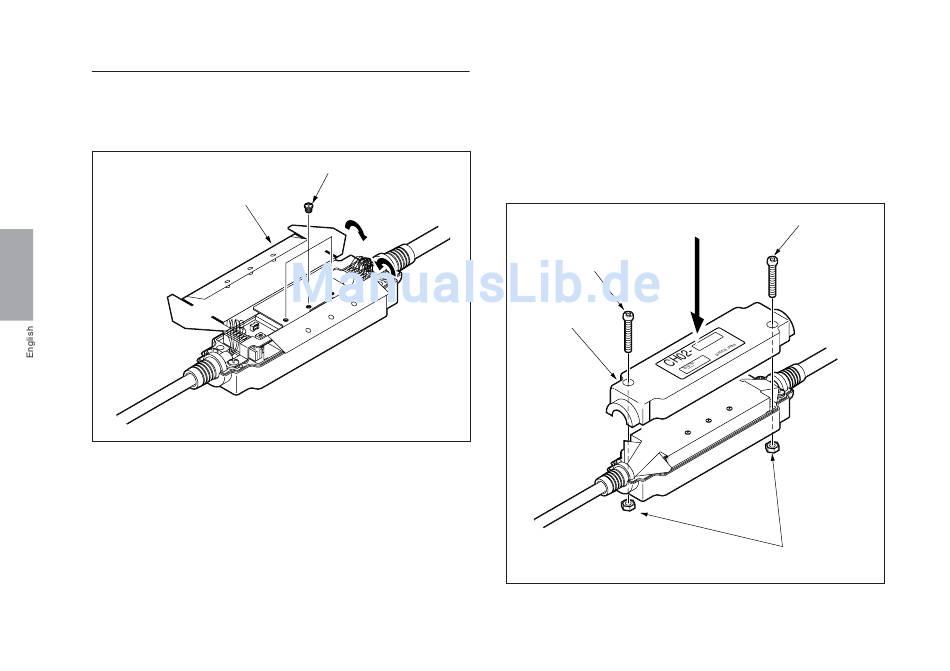

Turn off the display unit. Mount the opened shield cover
using the three M2 screws.
Shield cover
22
M2
Fig. 10
Mount the upper case using the two M2.6 screws and nuts.
Make sure the shield cover does not get caught by the
upper case and under case.
Check that there are no gaps between the upper and lower
cases.
M2.6
Upper case
Fig. 11
M2.6
Nuts
