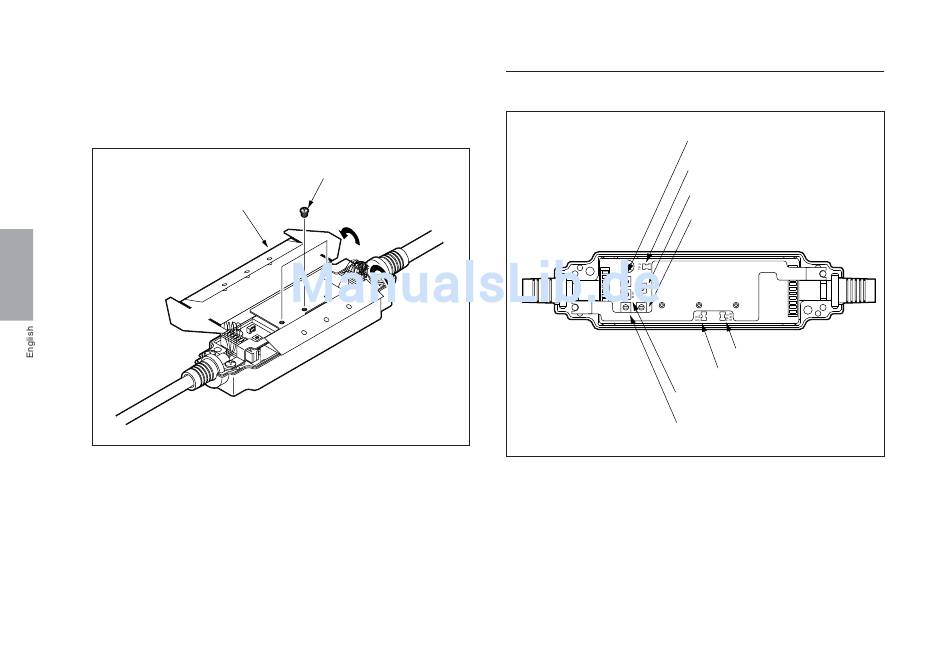

Next, remove the three M2 screws securing the shield
cover, and open the shield cover.
Shield cover
18
M2
Fig. 2
〈2〉 Board layout
PM
RV4
RV3
RV5 RV2
RV1:Gain balance
RV5:DC (CH2)
Fig. 3
RV4:DC (CH1)
TP2:PM
RV3:Phase
RV2:Gain
TP3:GND
TP1:EX
