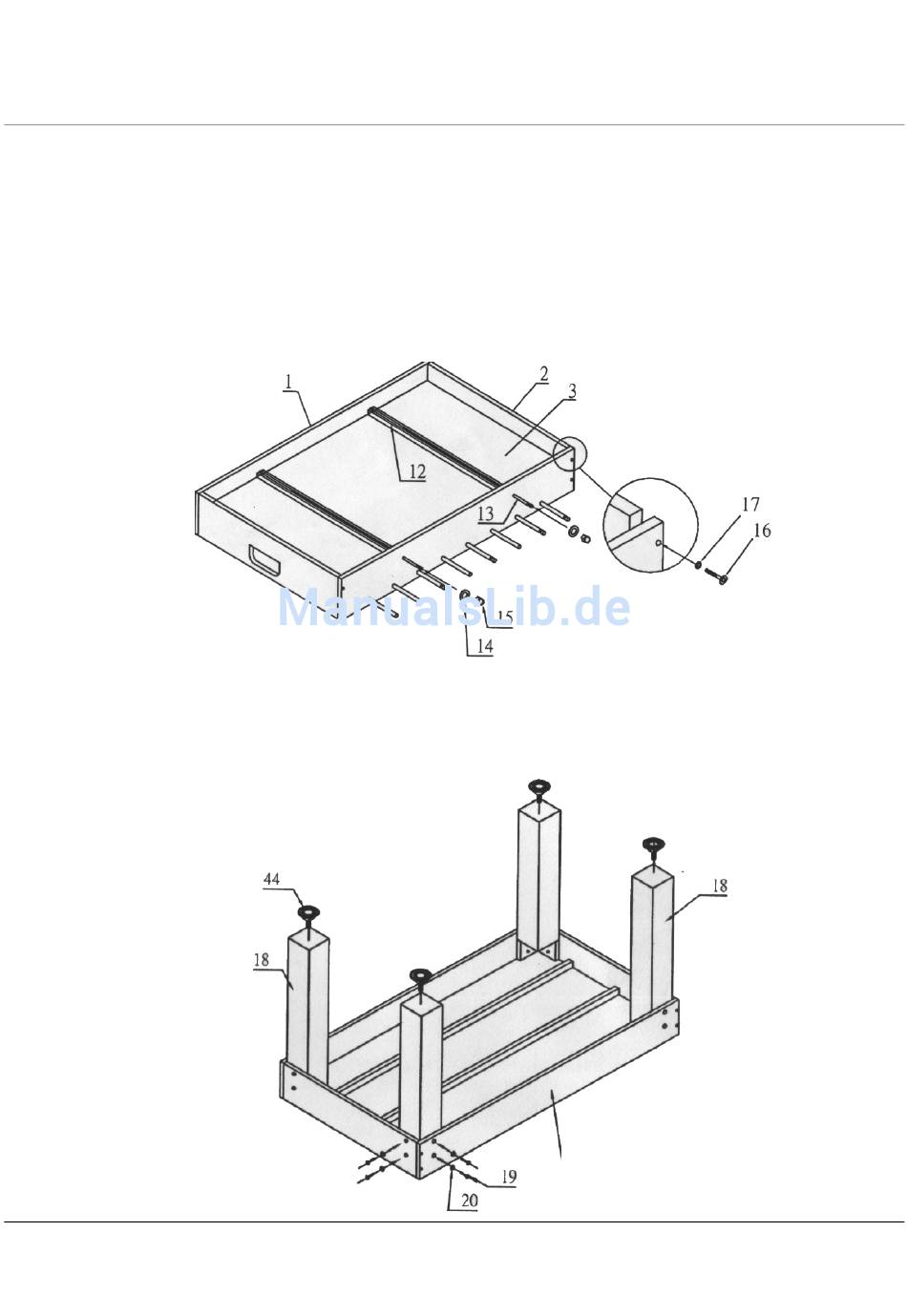

Step 3
Fasten both end panels (#2) with 8x bolts (#16) and 8x washers (#17).
Position the support braces (#12) underneath the playing area (#3) as shown in Fig. 3. Make sure that the holes for the
support braces (#12) are aligned with those of the side panels (#1). Push 1x bolt rod (#13) through each of the support
braces (#12) and secure the bolt rods on both sides with 1x washer (#14) and 1x hexagon nut (#15) each.
Note: the washers (14) and hexagon nuts (15) are attached to the bolt rods on delivery. Remove the washers and hexagon
nuts before pushing the bolt rods (13) through the support braces (12).
Step 4
Attach the 4 table legs (#18) with 4x bolts (#19) and 4x washers (#20) each. Do not screw the bolts tight (finger-tight is
enough) to begin with. Screw the table-leg levelers (#44) into the legs (#18) as shown in Fig. 4.
