12.2 CONNECTING THE PUMPS
IT

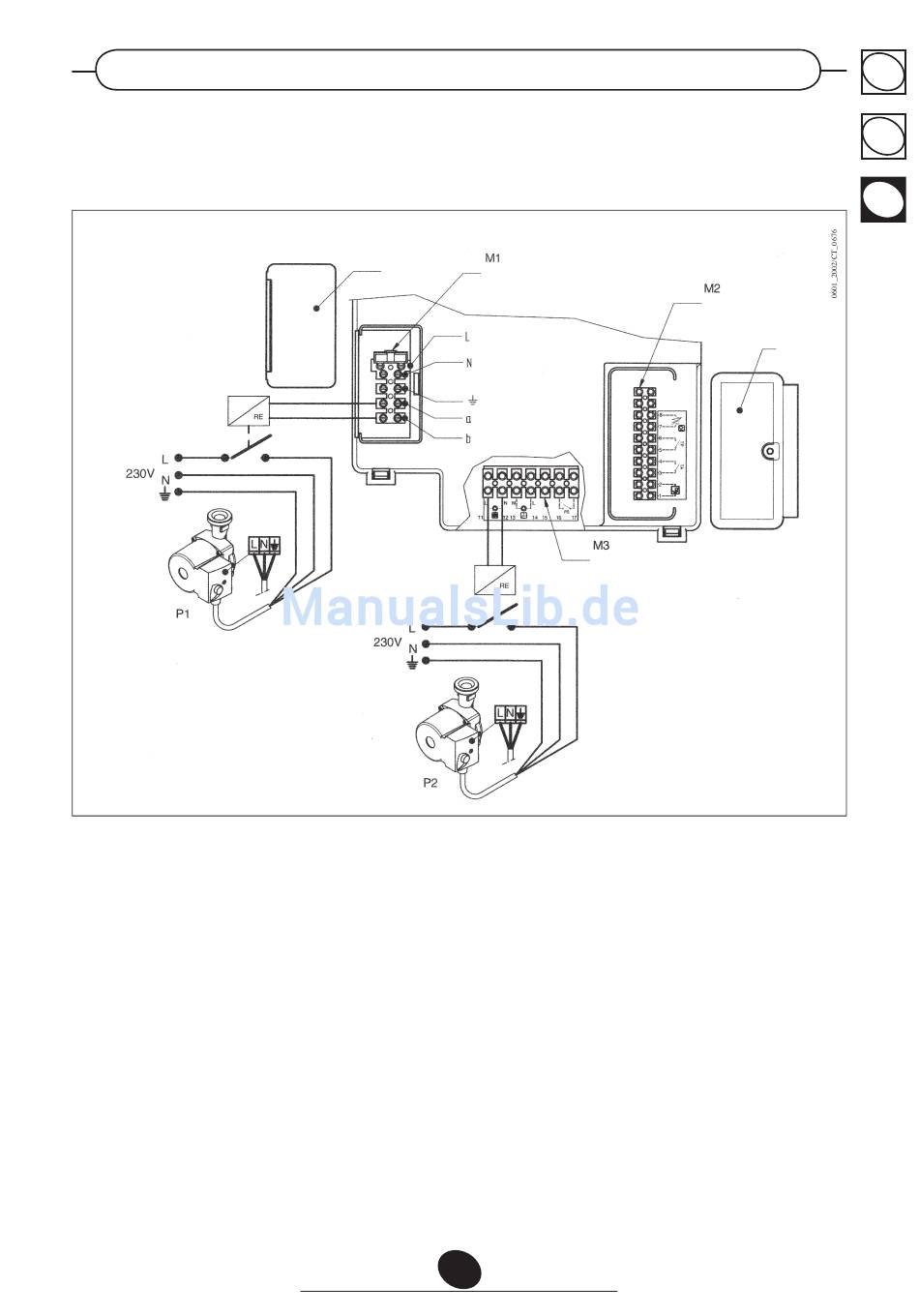

The pumps of the heating system (P1 and P2) have to be connected to boiler terminal block following the wiring
AT
of figure 9, a relay must be wired between the boiler control circuit board and the pumps.
GB
Cover
Terminal Block
Terminal Block
Cover
Terminal Block
Figure 9
91
INSTRUCTIONS PERTAINING TO THE INSTALLER
