Outside range readout (IN.LO, IN.HI):
If the valid range of the A/D converter or the polynomial is exceeded
Input Range
0...1 V / 0.2...1 V
VOLT
0...10 V / 2...10 V
CURR 0...20 mA / 4...20 mA
Ω
0...800
LIN.R
0...10 kΩ
POTM -
TEMP TC / RTD
Display readout below min.- / above max. (-1999, 9999):
Input Range
All All

Sensor error detection limits:

Sensor error detection (SE.BR, SE.SH):
Input Range
CURR Loop break (4..20 mA)
POTM All, SE.BR on all 3-wire
Ω
0...800
LIN.R
0...10 kΩ
TC
TEMP
RTD, 2-, 3-, and 4-wire
No SE.SH for Pt10, Pt20 and Pt50

Error indications:

Readout at hardware error
Error search
Test of internal CJC sensor
Checksum test of the configuration in FLASH
Check measurement of analogue output current
Communications test 4501 / 4114
Check that input signal matches input configuration
Check that saved configuration in 4501 matches module
! Error indications in the display flash once per second. The help text explains the error.
1) The error is reset by switching off and then switching on the supply voltage to the module.
38
Readout Limit
IN.LO < -25 mV
IN.HI > 1.2 V
IN.LO < -25 mV
IN.HI > 12 V
IN.LO < -1.05 mA
IN.HI > 25.05 mA
< 0 Ω
IN.LO
> 1075 Ω
IN.HI
< 0 Ω
IN.LO
IN.HI < 110 kΩ
IN.LO < -0.5 %
IN.HI > 100.5 %
IN.LO < temperature range -2°C
IN.HI > temperature range +2°C
Readout Limit
-1999 Display readout <-1999
9999 Display readout >9999
Readout Limit
SE.BR <= 3.6 mA; > = 21 mA
Ω
SE.BR > ca. 126 k
Ω
SE.BR > ca. 875
Ω
SE.BR > ca. 11 k
Ω
SE.BR > ca. 750 k / (1.25 V)
Ω
SE.BR > ca. 15 k
Ω
SE.SH < ca. 15
Readout Error cause
CJC sensor defect or tem-
CJ.ER
perature outside range
FL.ER Error in FLASH
1) No load on the current
AO.ER
output (only 4...20 mA)
NO.CO Connection error
IN.ER 1) Error levels on input
TY.ER Configuration is not 4114

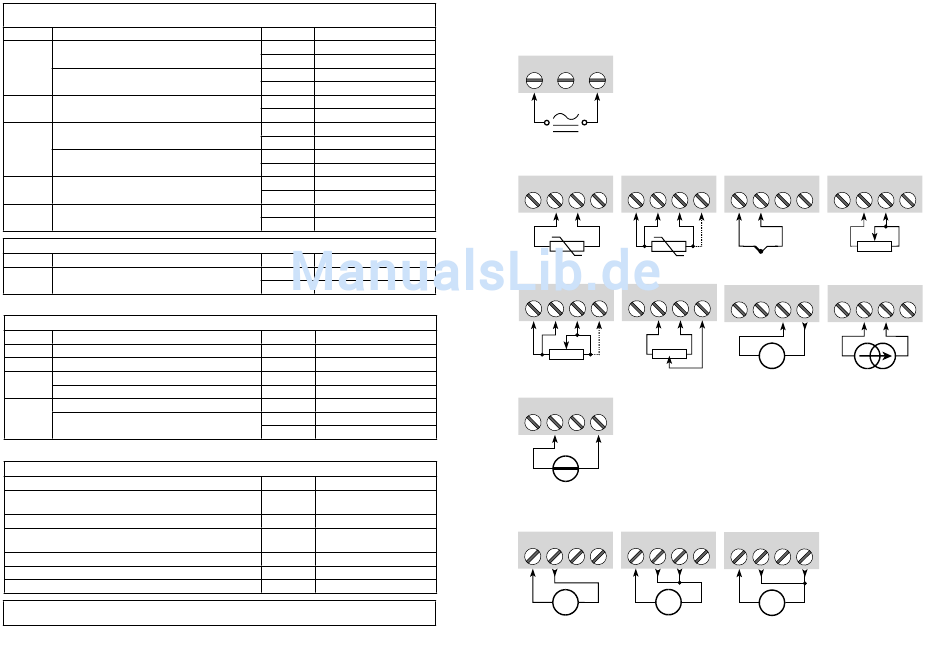

CONNECTIONS:

Supply:
31 32 33
Inputs:
RTD, 2-wire RTD, 3- / 4-wire
41 42 43 44 41 42 43 44
Resistance,
Potentiometer
3- / 4-wire
41 42 43 44 41 42 43 44
Voltage
41 42 43 44
+
-
Outputs:
Current Voltage, 1 V
11 12 13 14 11 12 13 14
+ +
- -
V
mA
TC Resistance, 2-wire
41 42 43 44 41 42 43 44
+ -
2-wire transmitter Current
41 42 43 44 41 42 43 44
+
- + -
Tx
Voltage, 10 V
13
11 12 14
- +
V
