Inhaltszusammenfassung für PowerWalker DC UVS

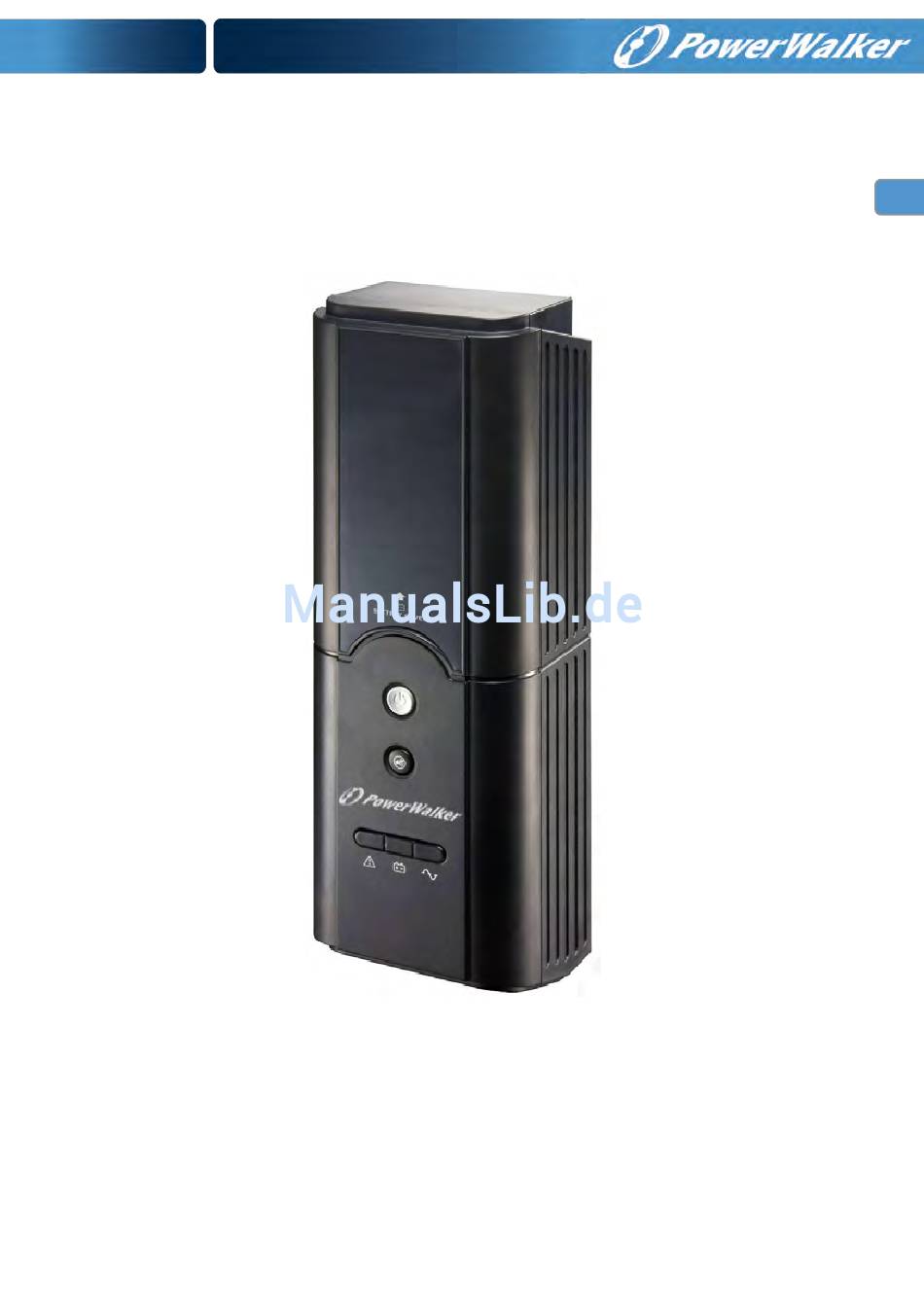

  • Seite 1 DC UPS User Manual EN / DE Page 1...
  • Seite 2: Inhaltsverzeichnis

    Table of Contents 1. Introduction…………………………………………………………3-4 1.1 General Introduction ……………………………………….………3 1.2 Panel Introduction …………………………………………….……3 1.3 The 7 Pin Terminal Connecters Introduction Table …………….4 2. Safety Information……………………………………………………5 3. Package Contents……………………………………………………6 4. Installation …………………………………………………………7-9 4.1 Wire Connection …………………………………………………7-8 4.2 Wall-Mounting Instructions (Optional) ……………………………9 5.
  • Seite 3: Introduction

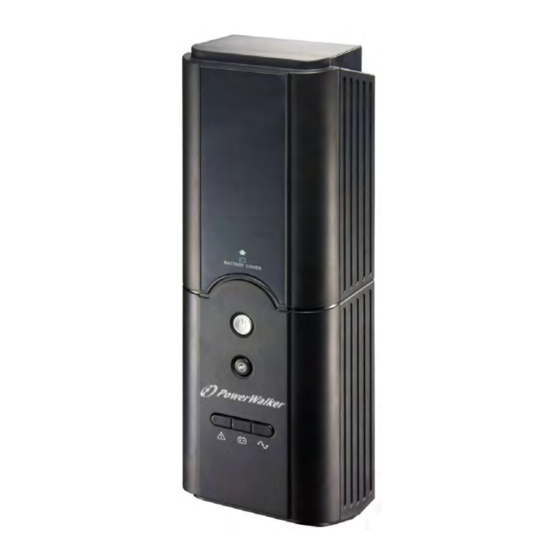

    1. Introduction 1.1 General Introduction DC UPS is the innovative power protection solution for delicate network devices and telecom equipments. It equips with 12V/30Watts power capacity and internal long 7 amp-hour backup battery. With universal input voltage design, this UPS can be widely applied to the majority power system without AC input voltage transfer.
  • Seite 4: The 7 Pin Terminal Connecters Introduction Table

    The rear view  DC output socket TheDC outputincludes 12VDCpowe r, AC input socket four dry contact signals and common TheAC input socket is return point for these signals. Please IEC320 C14. findthe definensand wire connections for DC output socket as below table. 1.3 The 7 Pin Terminal Connecters Introduction Table Terminal Function...
  • Seite 5: Safety Information

    2. Safety Information Internal battery voltage is 12V DC.  Incorrect battery connection or replacement creates risk of explosion.  Use only vender approved replacement batteries. The DC UPS is intended for installation and operation in a controlled  environment (temperature controlled, indoor area free of conductive contaminants).
  • Seite 6: Package Contents

    3. Package Contents The DC UPS package includes the following items. Please inspect if there are any missing parts. 1 x DC UPS Unit with 12V internal battery preinstalled 1 x User Manual 1 x 7-position connector Page 6...
  • Seite 7: Installation

    4. Installation 4.1 Wire Connection 1. Remove the wire connection cover in the rear of the DC UPS. Keep the cover will and reinstall the cover after all the wires are well-connected. 2. Plug IEC-LOCAL power cord into the AC input socket on the back of DC UPS.
  • Seite 8 3.2 If the telemetry cable is not enclosed: (1) Cut and strip the self-prepared cable leads, and then attach the leads to the 7-position connector. Make sure that the correct wire gauges are used for the safety (Please refer to “1.3 The 7 Pin Terminal Connecter Intro Table”) (2) Plug the 7-conductor cable into the outlet of the DC UPS (3)Then place the cable between the two sticks for fixing the cable...
  • Seite 9: Wall-Mounting Instructions (Optional)

    4.2 Wall-Mounting Instructions (Optional) NOTE: Required hardware not included. Refer to the wall-mount instructions for required tools and materials. STEP 1: Make a mark on the wall in the 2 screw locations. The distance between the centers of the 2 screws are 80cm. STEP 2: Use a drill to drill holes where you made the mark on the wall.
  • Seite 10: Operation

    5. Operation After the installation, you can start to operate the DC UPS and let your device running under uninterruptible power supply environment as the following procedure. STEP 1: Plug the AC input power cord of the DC UPS into the wall outlet (The utility power outlet) STEP 2: Push the power on/off switch and you may hear a long beep buzzer alarm for knowing the unit is properly turned on.
  • Seite 11: Available & Visual Alarms

    6. Available & Visual Alarms Front-Panel Visual Indicator Audible Description Label Alarm ON A/C Green LED lights None The DC UPS is operating on A/C Testing Green LED None The DC UPS is conducting Battery flashes a self-test. This automatic procedure is normal and will occur when the unit is switched...
  • Seite 12: Battery Replacement Procedure

    Battery Replacement Procedure The DC UPS is designed with an easy-access battery cover. STEP 1 Turn off power switch. Disconnect the DC UPS from power and any connected devices. Remove the battery door on the front of the DC UPS by pulling up the battery door.
  • Seite 13: Specifications

    8. Specifications Model Name DC UPS Nominal input voltage 230Vac INPUT Acceptable Input Voltage Range 80~260Vac Acceptable Input frequency Range 45Hz~65Hz Output power (max) Normal Voltage 12Vdc OUTPUT Output Voltage Range 10.5V~13.8V Line Mode Efficiency > 80% Type/Rating 12V/7Ah x 1pc Discharge Prevention 10.5V ±...
  • Seite 14: Operating

    Switch on Buzzer disable MUTE FUNCTION Switch off Buzzer enable 0℃ to 40℃ Operating temperature OPERATING Operating humidity 0% to 90% ENVIRONMENT Operating Elevation 0 to 3000m Weight 3.5 kgs PHYSICAL 120mm(W) x 358mm(H) x Dimension (W x H x D) 86.5mm(D) IEC inlet INPUT TYPE...
  • Seite 15 DC UPS User Manual Seite 1...
  • Seite 16 Inhaltsverzeichnis 1. Einführung …………………………………………………………3-4 1.1 Allgemeine Einführung …………………………………….………3 1.2 Einführung Bedienfeld ………………………………………..……3 1.3 Tabellenübersicht 7-polige Anschlüsse ……………………….…4 2. Sicherheitsinformationen ……………………………………………5 3. Paketinhalt ……………………………………………………………6 4. Installation ………………………………………………………….7-9 4.1 Drahtanschluss …..……………………………………………7-8 4.2 Anleitung zur Wandmontage (Optional) …………………………9 5. Betrieb ….…………………………………………………….……..10 6. Akustischer & visueller Alarm ……………………………………..11 7.
  • Seite 17: Einführung

    1. Einführung 1.1 Allgemeine Einführung DC-USV ist die innovative Schutzlösung für empfindliche Netzwerkgeräte und Telekommunikationsausrüstungen. Die USV ist mit einer 12V/30 Watt Stromkapazität und einer internen 7,0-Ah-Batterie ausgerüstet. Aufgrund der universellen Eingangsspannung kann diese USV für die meisten Energiesysteme, ohne Eingangswechselspannung verwendet werden. Die Vorteile des DC- Ausgangs sind Kosteneinsparungen und es wird keine zusätzliche Stromversorgung benötigt.
  • Seite 18: Tabellenübersicht 7-Polige Anschlüsse

    Rückansicht  DC Ausgangsbuchse Inklusive DC-Power, vier Kontakt- AC Eingangsbuchse Signale und einen gemeinsamen Die AC-Eingangs- Rückleiter der Signale. Entnehmen Buchse ist IEC320 Sie die Verbindungen nachfolgender C14. Tabelle. 1.3 Tabellenübersicht 7-polige Anschlüsse Steckverbinder Funktion Empfohlene Drahtstärke Positiv (+) Ausgangsspannung Mindestens #18AWG Negativ (-) Ausgangsspannung Mindestens #18AWG...
  • Seite 19: Sicherheitsinformationen

    2. Sicherheitsinformationen Interne Batteriespannung 12V DC.  Bei einem falschen Batterieanschluss oder -wechsel besteht  Explosionsgefahr. Verwenden Sie nur originale, vom Händler empfohlene Batterie n. Die DC-USV ist zum Einbau und Betrieb in einer kontrollierten  Umgebung vorgesehen (kontrollierte Temperatur, Innenbereich, frei von leitenden Verunreinigungen).
  • Seite 20: Packungsinhalt

    3. Packungsinhalt Folgende Teile sind im Lieferumfang enthalten. Kontrollieren Sie das Paket auf irgendwelche Fehlteile. 1 x DC UVS-Einheit mit vorinstallierter internen Batterie 1 x Bedienungsanleitung 1 x 7-polige Anschlüsse Seite 6...
  • Seite 21: Installation

    4. Installation 4.1 Drahtanschluss 1. Entfernen Sie die Kabelabdeckung auf der Rückseite der USV. Befestigen Sie die Kabelverbindung nach Montieren der Verbindungen. 2. Verbinden Sie das Netzkabel mit dem AC-Eingang auf der Rückseite der USV. Schließen Sie das Netzkabel erst an das Netz an, wenn alle Verbindungen hergestellt sind.
  • Seite 22: Wenn Kein Telemetriekabel Enthalten Ist

    3.2 Wenn kein Telemetriekabel enthalten ist: (1) Führen Sie die Kabel durch die Kabelführung und verbinden es mit dem 7-poligen Anschluss. Achten Sie zu Ihrer eigenen Sicherheit darauf, dass Korrekte Drähte verwendet werden (Bitte berücksichtigen Sie “1.3 Tabelle 7-poliger Anschluss”) (2) Stecken Sie das 7-polige Anschlusskabel in den Ausgang der DC-USV (3) Befestigen Sie dann das Kabel zwischen den beiden Stangen,...
  • Seite 23: Wandmontage (Optional)

    4. Schließen Sie die Kabelabdeckung. 5. Verbinden Sie das andere Ende des Kabels mit den Geräten 4.2 Wandmontage (Optional) HINWEIS: Erforderliche Hardware nicht enthalten. Lesen Sie hierzu die Anweisungen zur Wandmontage. SCHRITT 1: Machen Sie für die zwei Schraubpositionen eine Markierung an die Wand.
  • Seite 24: Betrieb

    5. Betrieb Nach der Installation können Sie die USV starten und ihre Geräte laufen mit Hilfe der unterbrechungsfreien Stromversorgung. Führen Sie dazu folgende Schritte durch. SCHRITT 1: Stecken Sie den Netzstecker in die Steckdose (Netzsteckdose) SCHRITT 2: Drücken Sie den On/Off-Schalter und es ertönt ein langer Signalton als Bestätigung, dass.
  • Seite 25: Akustischer & Visueller Alarm

    Während des Selbsttests arbeitet die DC-USV im Backup-Modus. Die DC-USV führt beim Start automatisch einen Selbsttest durch. 1) MCU erkennt, wenn eine höhere Spannung als 13 V eingesetzt ist. 2) In einem Zyklus von 21 Tagen während ständigem Betrieb. Hinweis: Während des Selbsttests arbeitet die DC-USV kurzzeitig über die Notstrom-Batterie.
  • Seite 26: Batteriewechsel

    Netzbetrieb wieder aufgenommen wird. Batterie leer Gelbe LED blinkt Jede Batterie fast leer. Dieser Sekunde Alarm wird wiederholt, bis die Batterie leer ist und das Gerät sich selbst abschaltet. Ersetzen Rote LED blinkt Alle zwei Dieser Alarm warnt davor, der Batterie Sekunden dass.
  • Seite 27 SCHRITT 2 Entfernen Sie die Batterie aus dem Gehäuse; entfernen Sie die Drahtverbindung von der Batterie. SCHRITT 3 Schließen Sie die neue Batterie an (Schwarz zu schwarz, rot zu rot); setzen sie die Batterie in das Gehäuse ein und verbinden Sie die Kabel wie unten abgebildet.
  • Seite 28: Spezifikationen

    8. Spezifikationen Modellname DC UVS Eingangsnennspannung 230Vac Zulässiger 80~260Vac EINGANG Eingangsspannungsbereich Zulässiger Eingangs- 45Hz~65Hz Frequenzbereich Ausgangsleistung (max) Normalspannung 12Vdc AUSGANG Ausgangsspannungsbereich 10.5V~13.8V Linieneffizienz > 80% Typ/Rating 12V/7Ah x 1pc Entladungsschutz 10.5V ± 0.5V Backupzeit Typisch 340 Min. (Mit 1 A Entladung Bemessungsladespannung 13.7V ±...
  • Seite 29: Funktion

    Batterie fehlt Dauerton Fehler Dauerton Einschalten Ton deaktiviert STUMMSCHALT- FUNKTION Ausschalten Ton aktiviert Betriebstemperatur 0℃ bis 40℃ BETRIEBS- Luftfeuchtigkeit bei Betrieb 0% bis 90% UMGEBUNG Betriebshöhe 0 bis 3000m Gewicht 3.5 kgs PHYSIKALISCH 120mm(W) x 358mm(H) x Abmessung (W x H x D) 86.5mm(D) IEC Eingang EINGANGSART...
