To monitor, extend and retract the nozzle in cold state several times and carry out any necessary fine adjustments
if necessary. An adjustment aid is available as an accessory, article no. 157.098
24
B
D
E
F

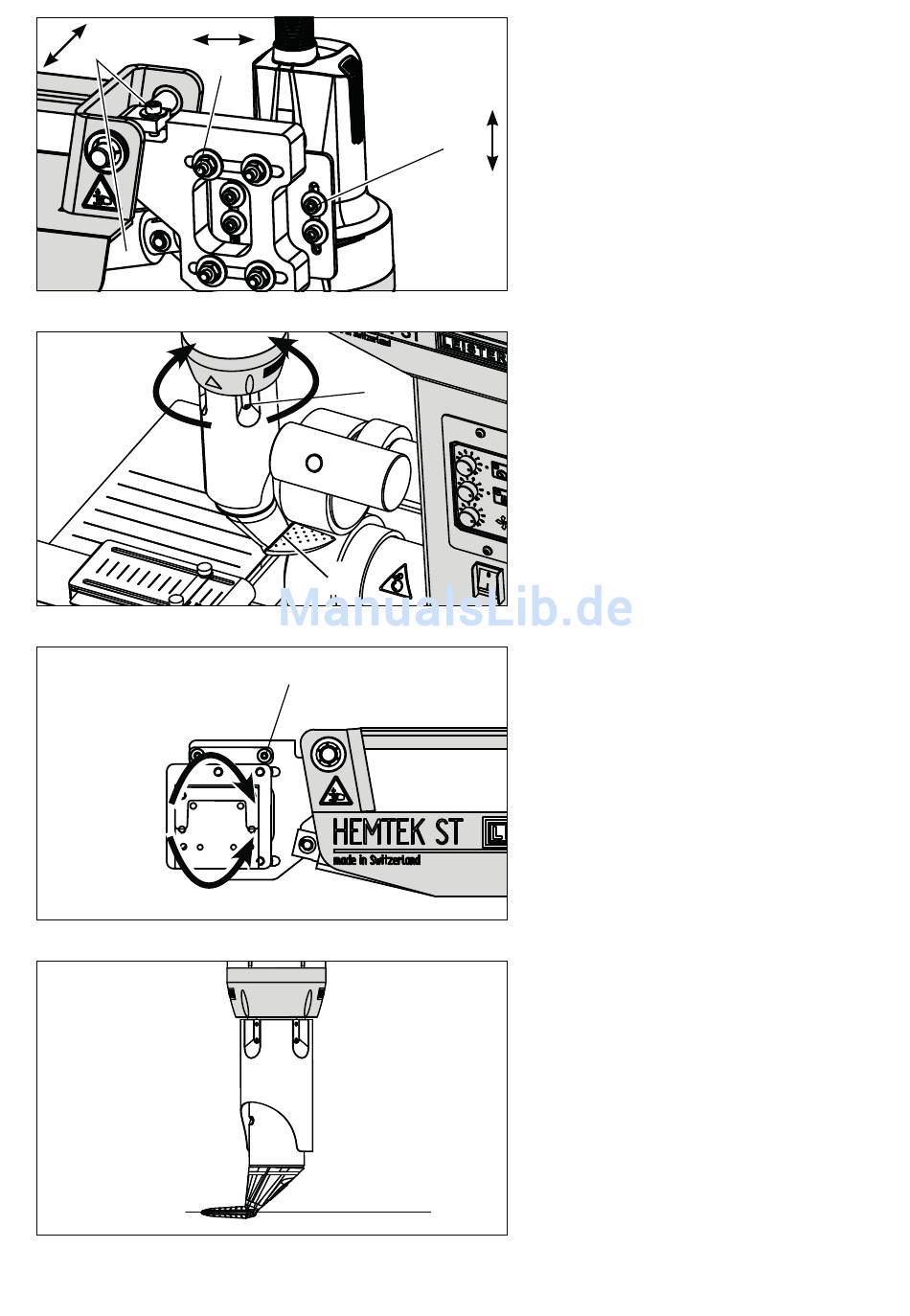

horizontal
Dimension (A)
Set (1 × socket head screw) and slide at the
same time with the linear drive.
Dimension (B)
Set (4 × hexagon nut)
C
Dimension (C)
Set (4 × socket head screws)
(D)
4 x combination Torx screws
(E)
Parallel drive wheel on nozzle shoe
(F)
2 x socket head screws + 4 x hexagon nut
(of dimension B)
