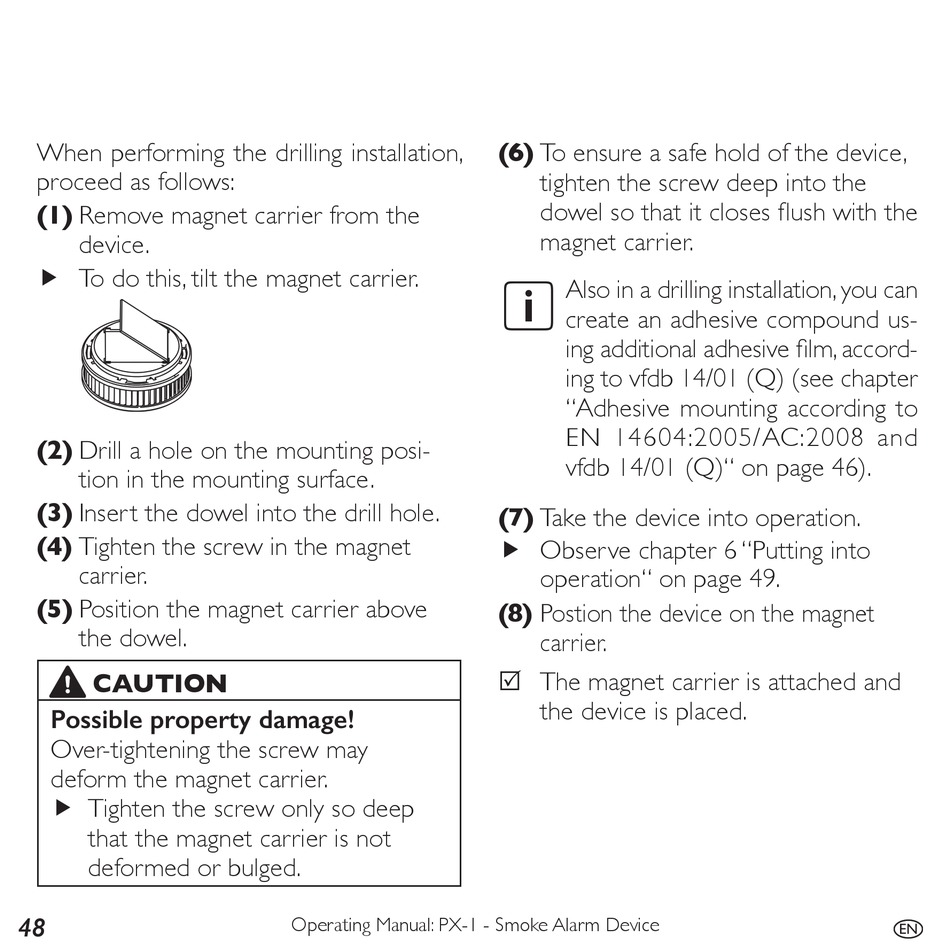

pyrexx PX-1 Betriebsanleitung Seite 48

When performing the drilling installation,
proceed as follows:
(1) Remove magnet carrier from the
device.
f To do this, tilt the magnet carrier.
(2) Drill a hole on the mounting posi-
tion in the mounting surface.
(3) Insert the dowel into the drill hole.
(4) Tighten the screw in the magnet
carrier.
(5) Position the magnet carrier above
the dowel.
CAUTION
Possible property damage!
Over-tightening the screw may
deform the magnet carrier.
f Tighten the screw only so deep
that the magnet carrier is not
deformed or bulged.
48
Operating Manual: PX-1 - Smoke Alarm Device
(6) To ensure a safe hold of the device,
tighten the screw deep into the
dowel so that it closes flush with the
magnet carrier.
Also in a drilling installation, you can
create an adhesive compound us-
ing additional adhesive film, accord-
ing to vfdb 14/01 (Q) (see chapter
"Adhesive mounting according to
EN 14604:2005/AC:2008 and
vfdb 14/01 (Q)" on page 46).
(7) Take the device into operation.
f Observe chapter 6 "Putting into
operation" on page 49.
(8) Postion the device on the magnet
carrier.
5 The magnet carrier is attached and
the device is placed.
