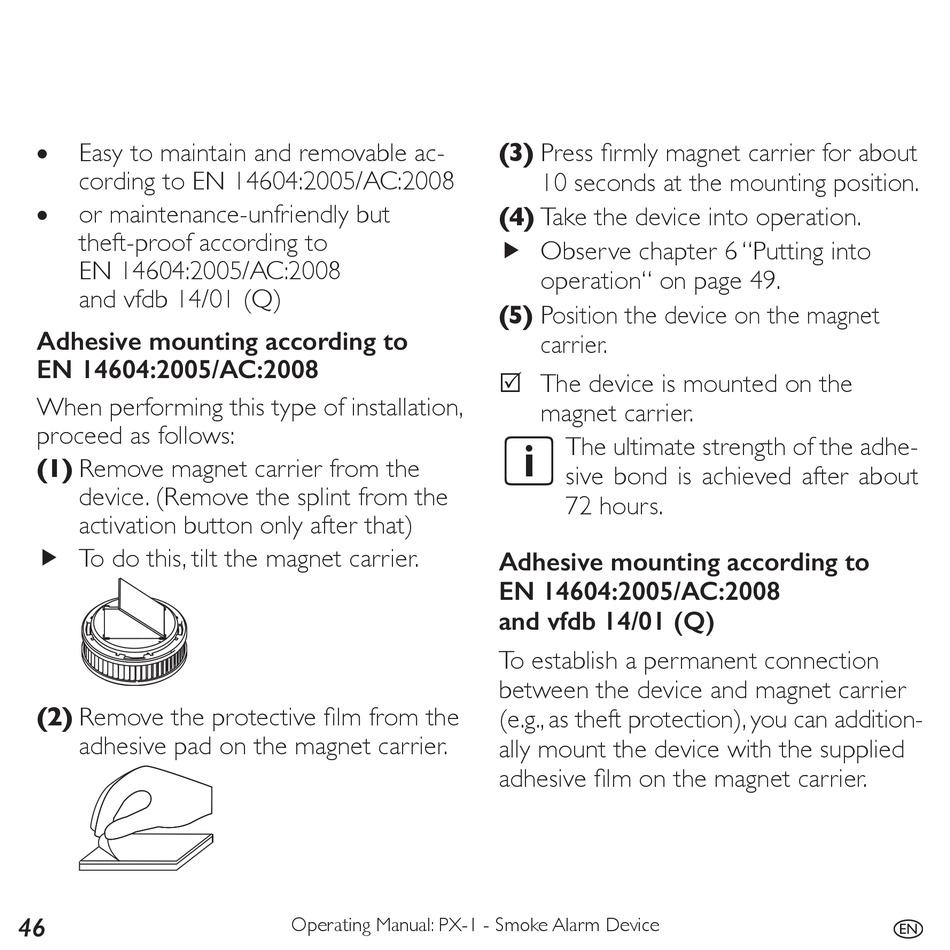

pyrexx PX-1 Betriebsanleitung Seite 46

Easy to maintain and removable ac-
•
cording to EN 14604:2005/AC:2008
or maintenance-unfriendly but
•
theft-proof according to
EN 14604:2005/AC:2008
and vfdb 14/01 (Q)
Adhesive mounting according to
EN 14604:2005/AC:2008
When performing this type of installation,
proceed as follows:
(1) Remove magnet carrier from the
device. (Remove the splint from the
activation button only after that)
f To do this, tilt the magnet carrier.
(2) Remove the protective film from the
adhesive pad on the magnet carrier.
46
Operating Manual: PX-1 - Smoke Alarm Device
(3) Press firmly magnet carrier for about
10 seconds at the mounting position.
(4) Take the device into operation.
f Observe chapter 6 "Putting into
operation" on page 49.
(5) Position the device on the magnet
carrier.
5 The device is mounted on the
magnet carrier.
The ultimate strength of the adhe-
sive bond is achieved after about
72 hours.
Adhesive mounting according to
EN 14604:2005/AC:2008
and vfdb 14/01 (Q)
To establish a permanent connection
between the device and magnet carrier
(e.g., as theft protection), you can addition-
ally mount the device with the supplied
adhesive film on the magnet carrier.
