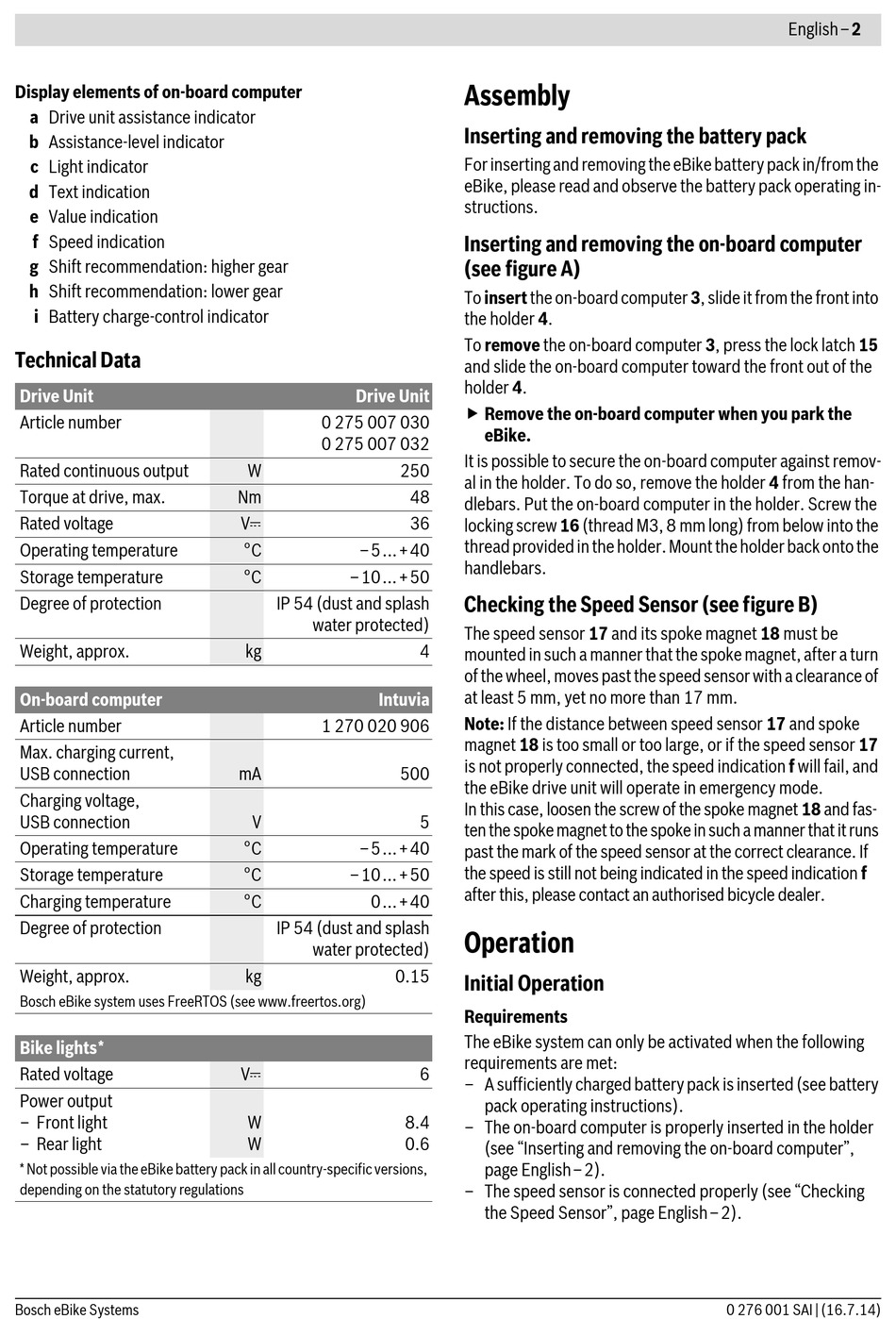

Display elements of on-board computer
a Drive unit assistance indicator
b Assistance-level indicator
c Light indicator
d Text indication
e Value indication
f Speed indication
g Shift recommendation: higher gear
h Shift recommendation: lower gear
i Battery charge-control indicator
Technical Data
Drive Unit
Article number
Rated continuous output
Torque at drive, max.
Rated voltage
Operating temperature
Storage temperature
Degree of protection
Weight, approx.
On-board computer
Article number
Max. charging current,
USB connection
Charging voltage,
USB connection
Operating temperature
Storage temperature
Charging temperature
Degree of protection
Weight, approx.
Bosch eBike system uses FreeRTOS (see www.freertos.org)
Bike lights*
Rated voltage
Power output
– Front light
– Rear light
* Not possible via the eBike battery pack in all country-specific versions,
depending on the statutory regulations
Bosch eBike Systems
Drive Unit
0 275 007 030
0 275 007 032
W 250
Nm
V
°C –5...+40
°C –10...+50
IP 54 (dust and splash
water protected)
kg
Intuvia
1 270 020 906
mA 500
V
°C –5...+40
°C –10...+50
°C 0...+40
IP 54 (dust and splash
water protected)
kg 0.15
V
W 8.4
W 0.6
Assembly
Inserting and removing the battery pack
For inserting and removing the eBike battery pack in/from the
eBike, please read and observe the battery pack operating in-
structions.
Inserting and removing the on-board computer
(see figure A)
To insert the on-board computer 3, slide it from the front into
the holder 4.
To remove the on-board computer 3, press the lock latch 15
and slide the on-board computer toward the front out of the
holder 4.
 Remove the on-board computer when you park the
eBike.
It is possible to secure the on-board computer against remov-
al in the holder. To do so, remove the holder 4 from the han-
48
dlebars. Put the on-board computer in the holder. Screw the
36
locking screw 16 (thread M3, 8 mm long) from below into the
thread provided in the holder. Mount the holder back onto the
handlebars.
Checking the Speed Sensor (see figure B)
The speed sensor 17 and its spoke magnet 18 must be
4
mounted in such a manner that the spoke magnet, after a turn
of the wheel, moves past the speed sensor with a clearance of
at least 5 mm, yet no more than 17 mm.
Note: If the distance between speed sensor 17 and spoke
magnet 18 is too small or too large, or if the speed sensor 17
is not properly connected, the speed indication f will fail, and
the eBike drive unit will operate in emergency mode.
In this case, loosen the screw of the spoke magnet 18 and fas-
5
ten the spoke magnet to the spoke in such a manner that it runs
past the mark of the speed sensor at the correct clearance. If
the speed is still not being indicated in the speed indication f
after this, please contact an authorised bicycle dealer.
Operation

Initial Operation

Requirements
The eBike system can only be activated when the following
requirements are met:
6
– A sufficiently charged battery pack is inserted (see battery
pack operating instructions).
– The on-board computer is properly inserted in the holder
(see "Inserting and removing the on-board computer",
page English–2).
– The speed sensor is connected properly (see "Checking
the Speed Sensor", page English–2).
English–2
