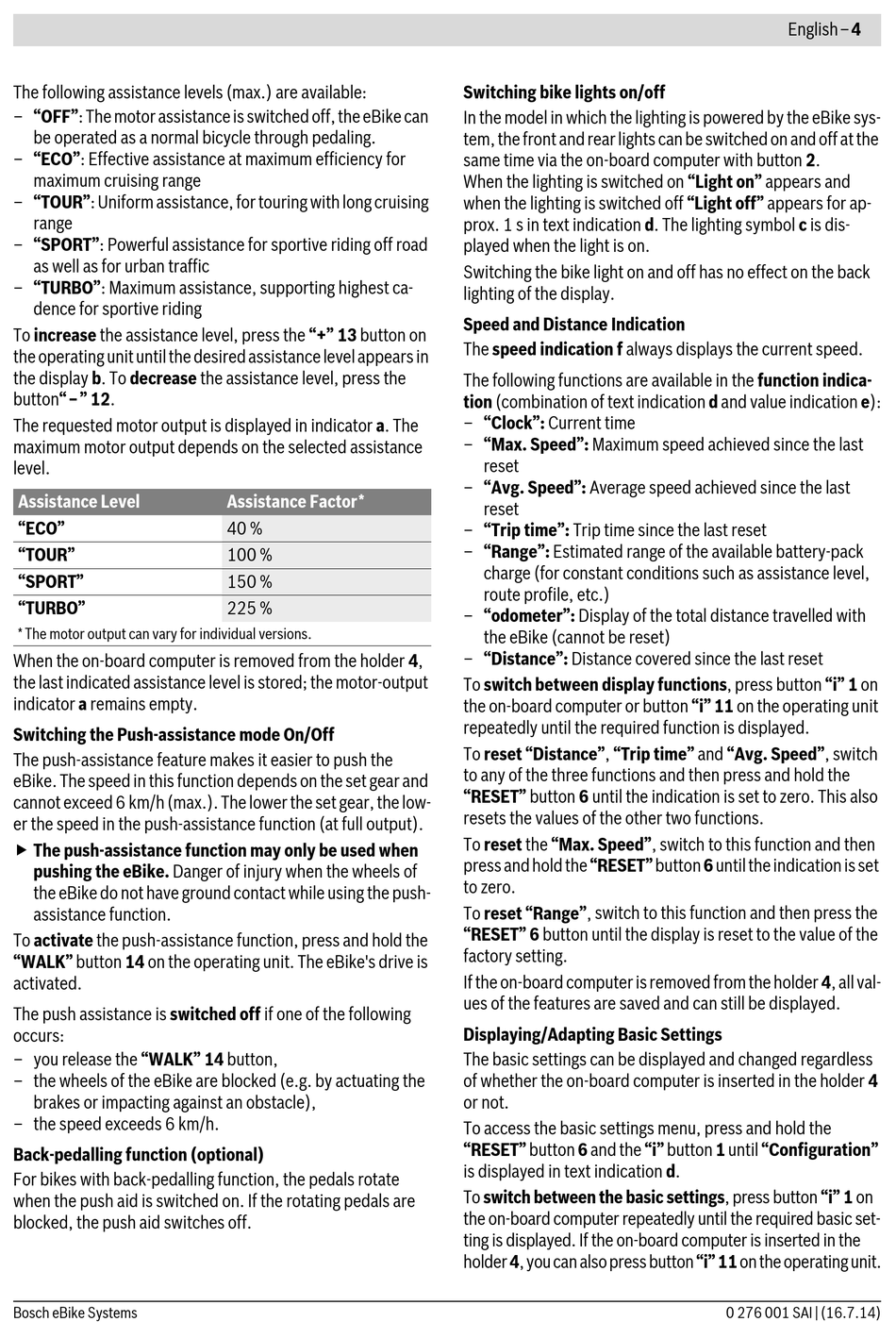

The following assistance levels (max.) are available:
– "OFF": The motor assistance is switched off, the eBike can
be operated as a normal bicycle through pedaling.
– "ECO": Effective assistance at maximum efficiency for
maximum cruising range
– "TOUR": Uniform assistance, for touring with long cruising
range
– "SPORT": Powerful assistance for sportive riding off road
as well as for urban traffic
– "TURBO": Maximum assistance, supporting highest ca-
dence for sportive riding
To increase the assistance level, press the "+" 13 button on
the operating unit until the desired assistance level appears in
the display b. To decrease the assistance level, press the
button"–" 12.
The requested motor output is displayed in indicator a. The
maximum motor output depends on the selected assistance
level.
Assistance Level
"ECO"
"TOUR"
"SPORT"
"TURBO"
* The motor output can vary for individual versions.
When the on-board computer is removed from the holder 4,
the last indicated assistance level is stored; the motor-output
indicator a remains empty.
Switching the Push-assistance mode On/Off
The push-assistance feature makes it easier to push the
eBike. The speed in this function depends on the set gear and
cannot exceed 6 km/h (max.). The lower the set gear, the low-
er the speed in the push-assistance function (at full output).
 The push-assistance function may only be used when
pushing the eBike. Danger of injury when the wheels of
the eBike do not have ground contact while using the push-
assistance function.
To activate the push-assistance function, press and hold the
"WALK" button 14 on the operating unit. The eBike's drive is
activated.
The push assistance is switched off if one of the following
occurs:
– you release the "WALK" 14 button,
– the wheels of the eBike are blocked (e.g. by actuating the
brakes or impacting against an obstacle),
– the speed exceeds 6 km/h.
Back-pedalling function (optional)
For bikes with back-pedalling function, the pedals rotate
when the push aid is switched on. If the rotating pedals are
blocked, the push aid switches off.
Bosch eBike Systems
Assistance Factor*
40 %
100 %
150 %
225 %
Switching bike lights on/off
In the model in which the lighting is powered by the eBike sys-
tem, the front and rear lights can be switched on and off at the
same time via the on-board computer with button 2.
When the lighting is switched on "Light on" appears and
when the lighting is switched off "Light off" appears for ap-
prox. 1 s in text indication d. The lighting symbol c is dis-
played when the light is on.
Switching the bike light on and off has no effect on the back
lighting of the display.
Speed and Distance Indication
The speed indication f always displays the current speed.
The following functions are available in the function indica-
tion (combination of text indication d and value indication e):
– "Clock": Current time
– "Max. Speed": Maximum speed achieved since the last
reset
– "Avg. Speed": Average speed achieved since the last
reset
– "Trip time": Trip time since the last reset
– "Range": Estimated range of the available battery-pack
charge (for constant conditions such as assistance level,
route profile, etc.)
– "odometer": Display of the total distance travelled with
the eBike (cannot be reset)
– "Distance": Distance covered since the last reset
To switch between display functions, press button "i" 1 on
the on-board computer or button "i" 11 on the operating unit
repeatedly until the required function is displayed.
To reset "Distance", "Trip time" and "Avg. Speed", switch
to any of the three functions and then press and hold the
"RESET" button 6 until the indication is set to zero. This also
resets the values of the other two functions.
To reset the "Max. Speed", switch to this function and then
press and hold the "RESET" button 6 until the indication is set
to zero.
To reset "Range", switch to this function and then press the
"RESET" 6 button until the display is reset to the value of the
factory setting.
If the on-board computer is removed from the holder 4, all val-
ues of the features are saved and can still be displayed.
Displaying/Adapting Basic Settings
The basic settings can be displayed and changed regardless
of whether the on-board computer is inserted in the holder 4
or not.
To access the basic settings menu, press and hold the
"RESET" button 6 and the "i" button 1 until "Configuration"
is displayed in text indication d.
To switch between the basic settings, press button "i" 1 on
the on-board computer repeatedly until the required basic set-
ting is displayed. If the on-board computer is inserted in the
holder 4, you can also press button "i" 11 on the operating unit.
