4. Fill water into the oil tray, and always keep certain amount of water (The recommended amount of
water is more than half of the water tray), to prevent dry. Remark:
1 - Please loosen the screw of water try fixed plate first, then you can take out the water tray.
Attention: When you use this machine, do not touch the electrical heating area to avoid scalding.

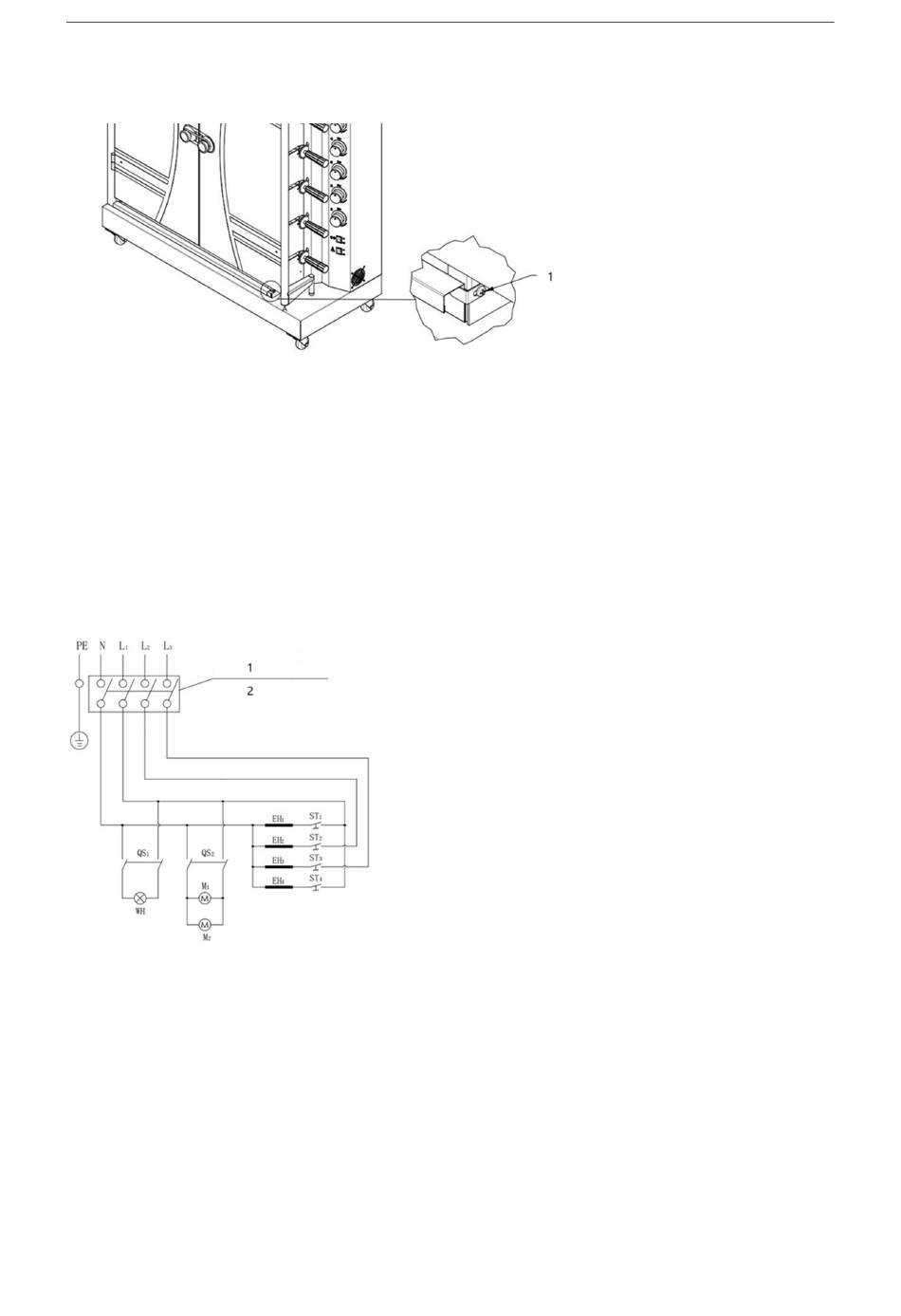

Electrical Schematics

Check the circuit. The installer should be responsible for the installation of this appliance. Cut the power off
and let the appliance cool down completely before dismantling this appliance.
1 - 400V, 50Hz; user should test power supply with leakage protection.
2 - We suggest to use 60A, 4 m² power cord.
WH: Light
QS1: On-Off Switch 1
ST1-ST4: Thermostat
QS2: On-Off Switch 2
EN
EH1-EH4: Heating Element
M1: Motor M2: Fan
