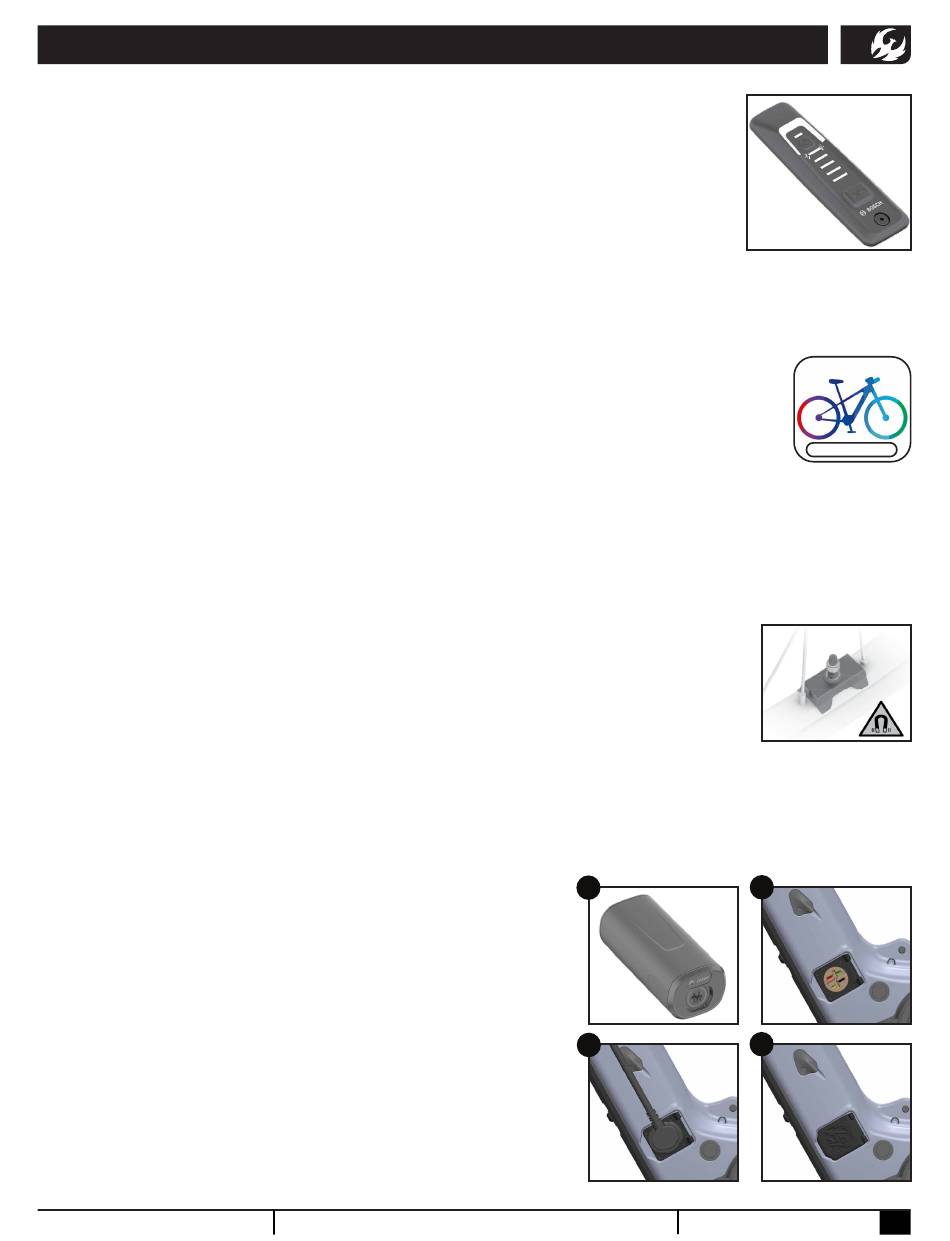

SYSTEM OPERATION

Battery Charge Indicator

• The top LED on the System Controller flashes to indicate that the battery is
being charged when the charger is connected to the charging port.
• On the display, each ice-blue bar represents 20% capacity and each white bar
represents 10% capacity. The top bar shows the maximum capacity. Example:
Four ice-blue bars and one white bar are displayed. The state of charge is
between 81% and 90%.
• If the capacity is low, both the lower bars change color. When the bottom two
LEDs are orange there is 30-21%.
• If the bottom LED is the only one illuminated orange, the capacity is 20-11%.
• If the bottom LED is red, the capacity is 10% to reserve. And when flashing red it is between reserve
and empty.

Establishing a Smartphone Connection

• To use some of the eBike functions, a smartphone and the eBike Flow app is required.
• Download the Bosch eBike Flow app to your smartphone from the app store and follow the
instructions on the app.

Connecting the Mini Remote to the System Controller

• The System Controller and Mini Remote operating units are connected via Bluetooth®. If the Mini
Remote operating unit has not already been connected to the System Controller proceed as follows:
When connecting a Mini Remote, go to settings in the eBike Flow App then click on manage bike settings,
then click on components, then click on add new device. Then follow app instructions.

Rim Magnet Speed Sensor

• The Shuttle SLAM features the Rim Magnet instead of a rotor magnet and
wired speed sensor. The drive unit itself detects when the magnet is close to it
and calculates the speed and any other data required.
• The Rim Magnet must be installed on the wheel for the motor to provide
assist.
• Since the drive unit is sensitive to magnetic fields, avoid other magnetic fields
in the vicinity of the drive unit (e.g. magnetic clipless pedals, magnetic cadence sensors, etc.) in order
to prevent disruption to the drive unit.
• If you get a flat tire on a ride you will need a tube with at least a 40mm long valve stem to mount the
rim magnet on.

PowerMore 250 Range Extender

• The SLAM's charging port was designed for easy use
with the PowerMore 250 range extender (fig.1). You
can remove the cover (fig. 2) by pulling it off the frame
mount when using the range extender (fig. 3) and
replace it (fig. 4) when not using the extender for rides.
• The Bosch PowerMore 250 Range Extender, sold
separately, can be added to your Shuttle SLAM for
increased range on long rides.
• The battery holder mounts to the frame in place of a
water bottle cage.
• The PowerMore is connected to the system via a cable
plugged into the charging port on the frame.
• It is recommended to begin a ride with the PowerMore
installed and connected, with both the internal battery
and the PowerMore fully charged.
