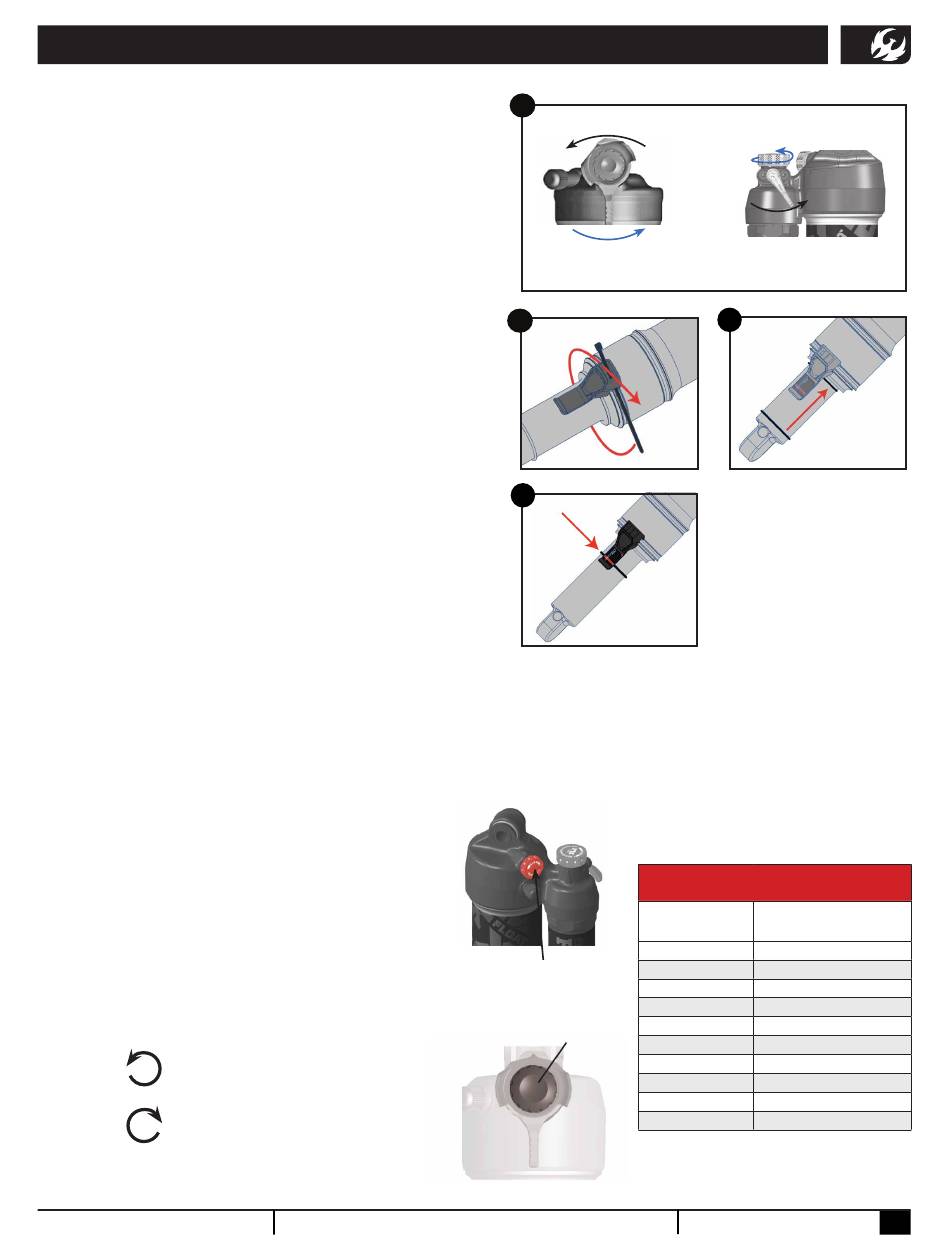

BIKE SET-UP

Setting Proper Sag

1. Always set sag with the
open position. (fig. 1)
2. If your shock has additional compression and rebound
adjustments ensure they are adjusted to be fully open,
compression to the softest setting, and rebound to its
fastest setting. Do this by rotating them fully counter-
clockwise.
3. If it is not installed already, attach the sag indicator to
the bottom of the shock body using the provided zip-
tie and carefully cut the excess.(fig. 2)
4. Find a level surface and something to steady yourself
while mounted on the bike so you can be on the pedals
in a seated position. It may be easier to have a partner
hold your bike steady from the front, by holding the
handlebars while you are in your riding position.
5. While standing on the pedals, sit down hard into the
saddle to cycle the suspension well into the stroke.
This will ensure the bike comes to rest at the natural
sag setting with the rider in the saddle.
6. While in the saddle and not moving, slide the O-ring up
into position against the air can. (fig. 3)
7. Once the O-ring is set in place, slowly step off the bike
so as not to move the O-ring.
8. Make adjustments to the sag by removing or add-
ing air so that steps 4-7 result in the O-ring lining
up with the red line on the sag indicator (fig. 4).
*Do not exceed the maximum air pressure indicated
on your shock. When adjusting air pressure in the shock, cycle the shock at least 25% into its travel
before re-checking sag, so the negative air chamber equalizes pressure with the main chamber each
time air is added or removed. You can do this by pushing down on the saddle several times to com-
press the shock past the sag point.
Setting Rebound Damping on the Fox Float & Float X
• Rebound is set from the most open (fully
counter-clockwise) position.
• The rebound setting is determined by the air
pressure in the shock.
• Refer to the table on the right for the suggested
rebound setting. The number in the chart refers
to how many clicks in (clockwise) from the open
setting the rebound should be set. Fox sets
rebound from the closed position, so that has
been provided in the table in parentheses.
Rotate counter-clockwise
for faster extention after
compression
Rotate clockwise for
slower extention after
compression
pivotcycles.com
blue climb switch lever to the
info@pivotcycles.com
1
OPEN MODE ADJUST
TO LEVEL 1
OPEN COMPRESSION DAMPING
FLOAT
2
4
FLOAT X REBOUND KNOB
FLOAT REBOUND KNOB
1.877.857.4868
OPEN COMPRESSION
DAMPING
CLIMB SWITCH OPEN
FLOAT X
3
WARNING:
Make sure the sag
indicator does not contact the
frame or linkage through the
suspension cycle. Otherwise,
the indicator may break while
riding.
Suggested Rebound Settings
Air Pressure
Clicks from OPEN
[psi] (Clicks from CLOSED)
<120 3 (9)
120-140 4 (8)
140-160 5 (7)
160-180 6 (6)
180-200 7 (5)
200-220 8 (4)
220-240 9 (3)
240-260 10 (2)
260-280 11 (1)
280-300 CLOSED
