Pivot SHUTTLE SL-AM Betriebsanleitung Seite 7

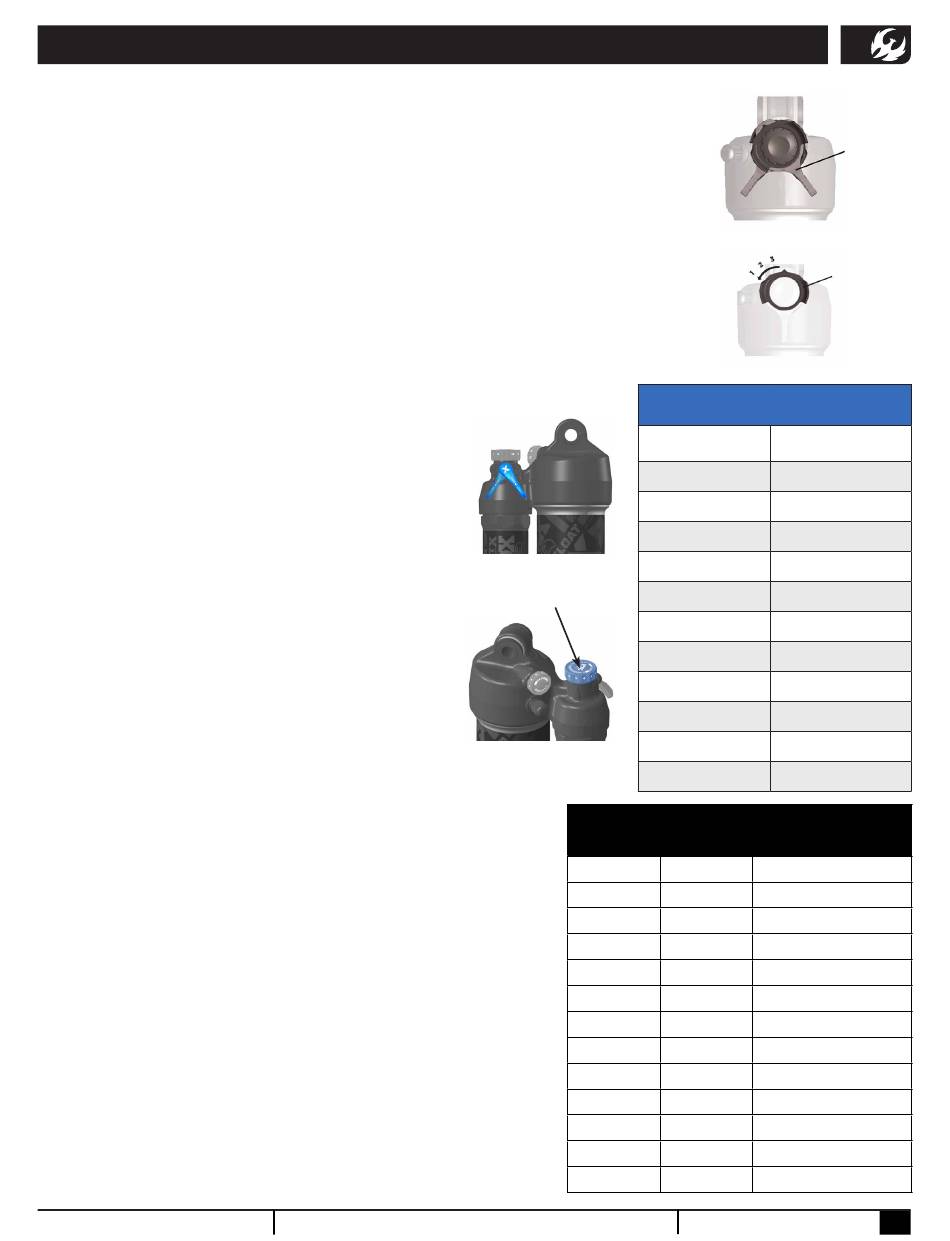

BIKE SET-UP
Setting Compression Damping on the Float
2-Position Lever
On Float shocks there is a two-postion lever to select between open and firm. The firm setting is
great for your ride to the trail, long fire road climbs, and smooth XC race courses where a more
locked out feel is desired.
Open Mode Adjust
All Factory Series Float shocks feature three additional options that affect the open setting via
the black adjuster. This knob needs to be lifted slightly to turn to one of the three designated
options. #1 is the most open, or least amount of compression damping, and #3 is the firmest. You
can experiment with all of these options to find the setting that provides the best compression
support and plushest feel for your weight and riding style. Other than running in the full firm
mode on rocky descents, all settings are designed to work well in a wide variety of terrain and
rider weights.
Setting Compression Damping on the Float X
2-Position Lever
Float X shocks feature a two position lever that allows for on-
the-fly adjustment between fully open and firm for climbing. For
most riding conditions it is best to have the lever open. As with
the other shocks, the firm setting is best suited for long fire road
climbs and smooth XC courses.
Low Speed Compression Adjuster
The Factory Series Float X features a
sion adjustment knob, which can be used to fine tune the open
mode of the compression damping. This knob offers 10 addition-
al fine tune adjustment settings to the open mode. Turning the
knob clockwise will increase low speed compression damping.
Turning the knob counter-clockwise will decrease low speed
compression damping. You can experiment with all of these
options to find the setting that provides the best compression
support and plushest feel for your weight and riding style. Refer
to the table to the right for initial settings.
Setting Air Pressure on the Fox 36 Forks
• Fox recommends setting sag between 15% and 20% of
the total fork travel. The Shuttle SLAM comes with a
160mm fork, so the proper sag measurement is 24.0 -
32.0mm.
• The air pressure in the Fox 36 forks should not exceed 8.3
[bar] (120 [psi]).
• To achieve the proper sag, reference the chart to the right
for an initial starting point.
• Just like with the shock sag the fork needs to be equalized
when the pressure is changed. Press down on the fork
a few times after making a pressure change to get an
accurate measurement.
pivotcycles.com
blue low speed compres-
info@pivotcycles.com
2 POSITION
LEVER
FIRM OPEN
LOW SPEED COMPRESSION
ADJUSTER
RIDER WEIGHT
[kg]
55 - 59
59 - 64
64 - 68
68 - 73
73 - 77
77 - 82
82 - 86
86 - 91
91 - 95
95 - 100
100 - 105
105 - 109
109 - 114
1.877.857.4868
FIRM OPEN
Mode Adjust
Suggested Compression
Settings Float X
Clicks from OPEN
Rider Weight
(Clicks from CLOSED)
<120 [lbs]
OPEN
<54 [kg]
140-150 [lbs]
1 (9)
63-68 [kg]
150-160 [lbs]
2 (8)
68-72 [kg]
160-170 [lbs]
3 (7)
72-77 [kg]
170-180 [lbs]
4 (6)
77-81 [kg]
180-190 [lbs]
5 (5)
81-86 [kg]
190-200 [lbs]
6 (4)
86-90 [kg]
200-210 [lbs]
7 (3)
90-95 [kg]
210-220 [lbs]
8 (2)
95-100 [kg]
220-230 [lbs]
9 (1)
100-104 [kg]
>230 [lbs]
CLOSED
>104 [kg]
FOX 36
AIR PRESSURE
[lbs]
120 - 130 58 [psi] / 4.0 [bar]
130 - 140
64 [psi] / 4.4 [bar]
140 - 150
68 [psi] / 4.7 [bar]
150 - 160
72 [psi] / 5.0 [bar]
160 - 170 76 [psi] / 5.2 [bar]
170 - 180 80 [psi] / 5.5 [bar]
180 - 190 84 [psi] / 5.8 [bar]
190 - 200 89 [psi] / 6.1 [bar]
200 - 210
93 [psi] / 6.4 [bar]
210 - 220
97 [psi] / 6.7 [bar]
220 - 230
102 [psi] / 7.0 [bar]
230 - 240
106 [psi] / 7.3 [bar]
240 - 250 110 [psi] / 7.6 [bar]
2-Position
Lever
Open
4
