Step 2

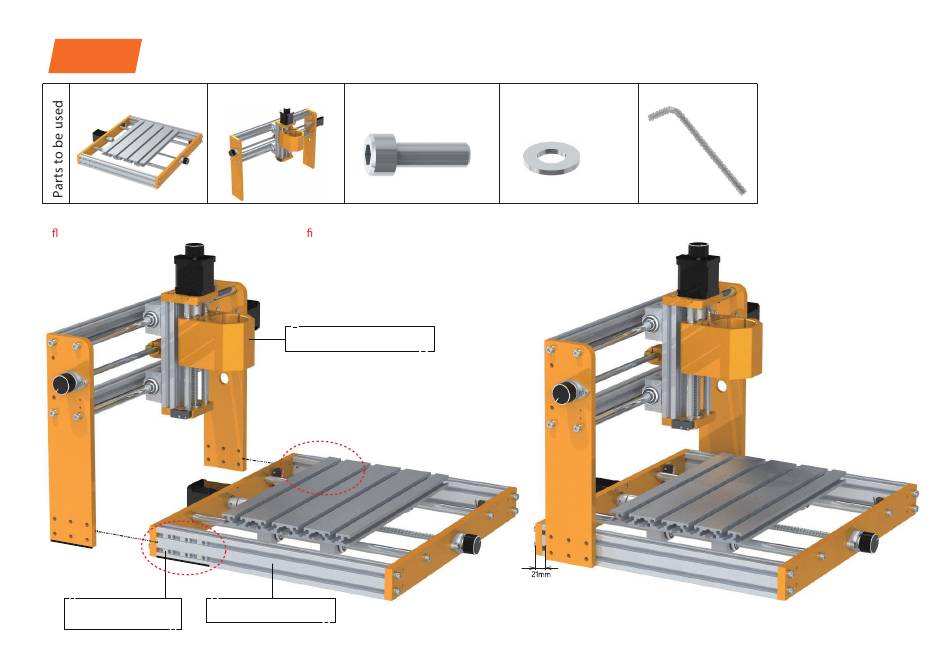

X , Y , Z Module Assembly
2
1.Y-Axis Module 1pc 2.XZ-Axis Module 1pc 14.Screw M5-16 12pcs 13.Gasket M5 12pcs 20.Wrench 4#
Tip: The bottom surface of the aluminum plate of the XZ-axis module Tip: Installation dimension of XZ-axis module and Y-axis module is 21mm.
is ush with the bottom surface of the aluminum pro le of the Y-axis
module.
2.XZ-Axis Module 1pc
21mm
Slide Nut M5 6pcs
1.Y-Axis Module
(Both sides)
