tau RPB Installationsanleitung Seite 23

2. Select the detection direction.
Position yourself in front of the radar,
press "Select" and make your choice:
- both (all) directions;
- from left to right;
- from right to left.

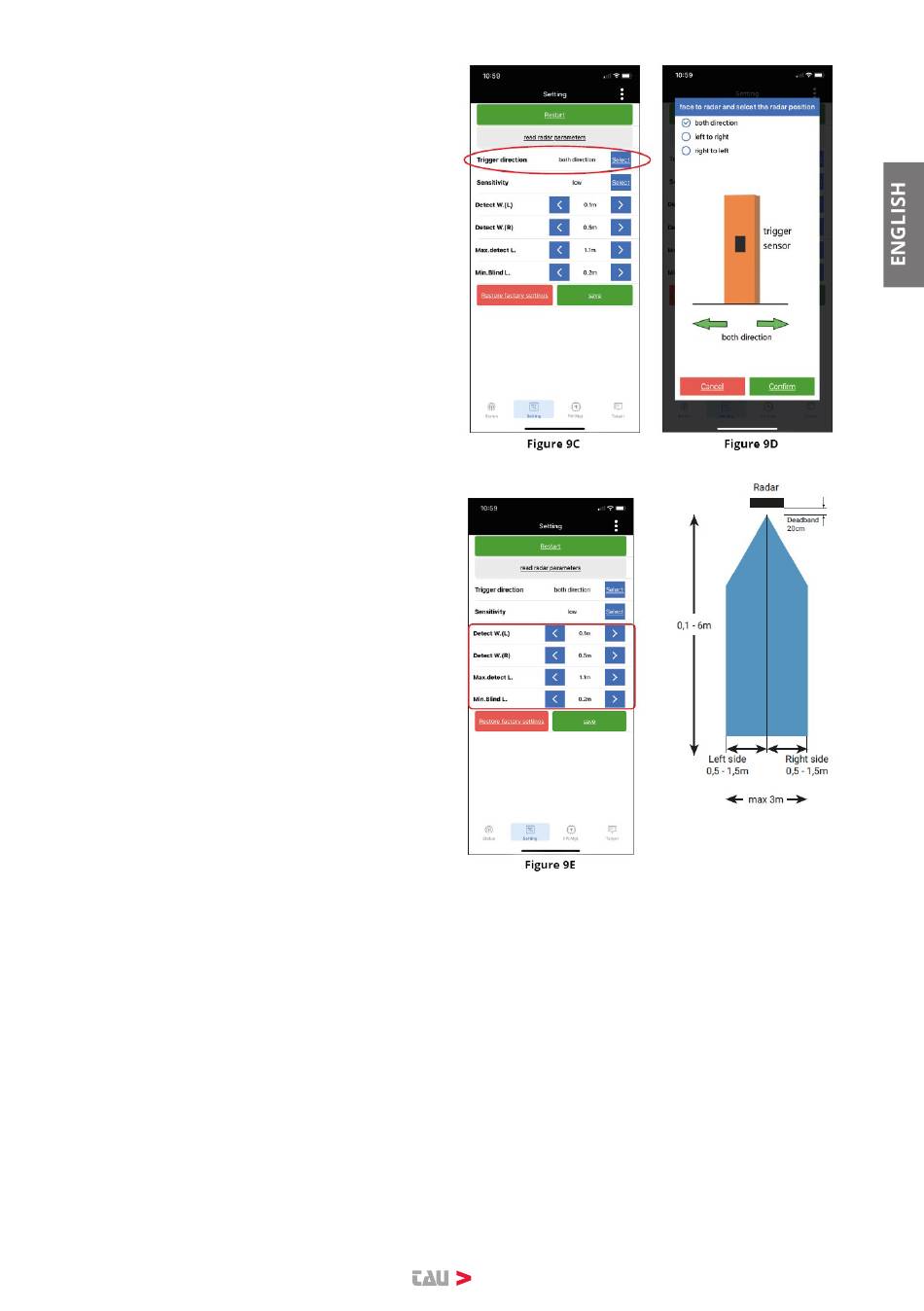

(fig. 9C – 9D)
3. Select the desired detection area and
press "Save" (Fig. 9E)
You can choose between the following
parameters:
- Detection length, max 6m;
- Detection width (right and left of the
radar are two separate parameters) max
1.5m per side;
When installing the radar, keep the following in mind: the radar detection area must be
viewed as an inflated balloon (fig. 9F).
To ensure the radar works correctly, it is necessary to install:
- on an open surface;
- at least 80 cm away from any wall, fence, gate, ceiling, etc.
23
