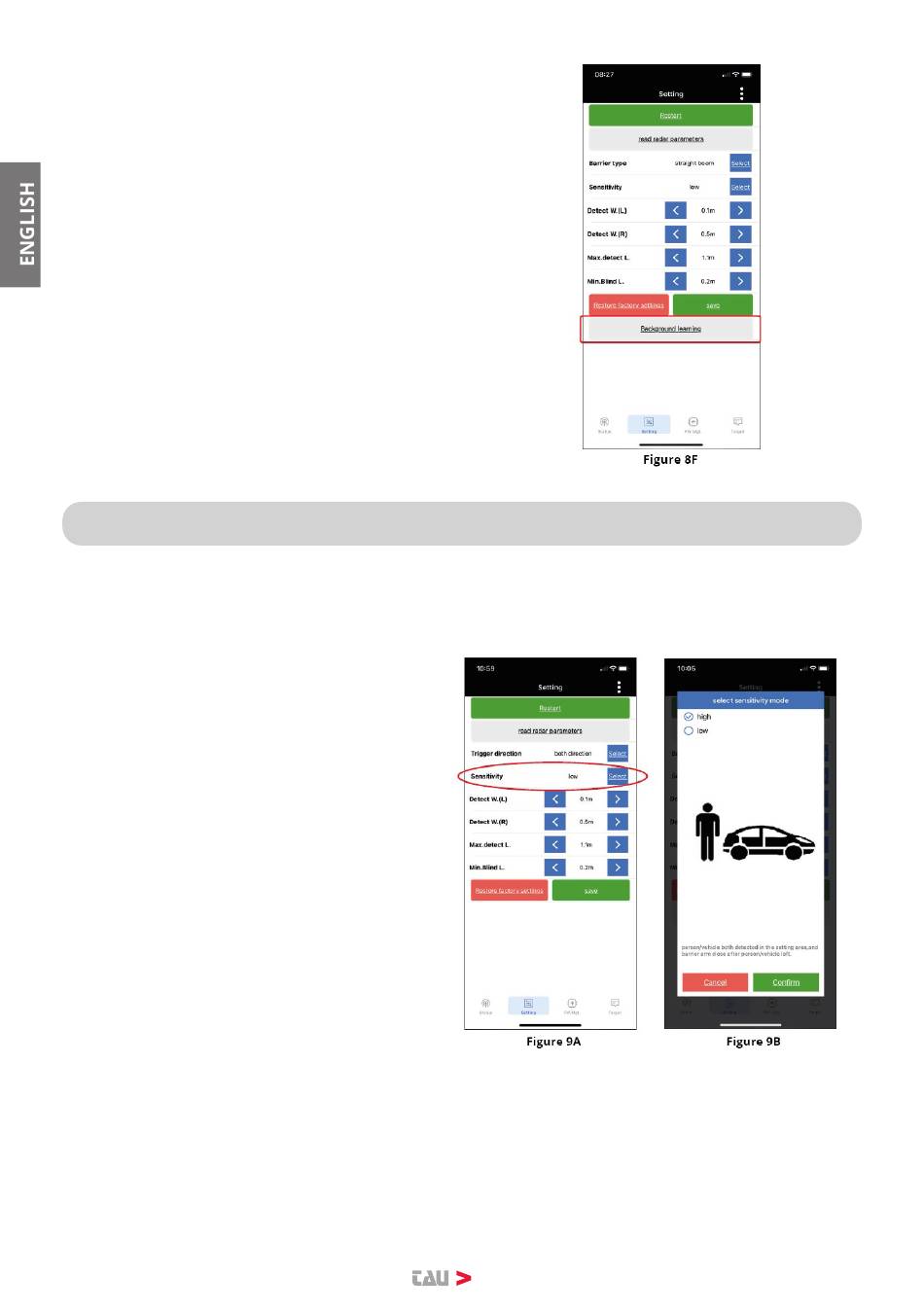

4. Set the radar detection area by pressing
"Background learning", to make the radar
learn any fixed obstacles, such as walls
etc...
IMPORTANT:
- The automatic barrier must be opened/
closed manually.
- There must be no other moving objects in
the detection area (Fig. 8F).

10. TRIGGER MODE, AS AN ACTIVATION COMMAND

TRIGGER MODE = works as a presence detector during the opening or closing of the
automatic barrier. It is an alternative to motion detectors, to infrared photocells for the
opening of barriers or to magnetic loops.
1. Choose what you want to detect, press
"Select", "Sensitivity" and "Confirm" (fig.
9A - 9B)
- High sensitivity: pedestrians and vehi-
cles will be detected
- Low sensitivity: only vehicles will be
detected.
