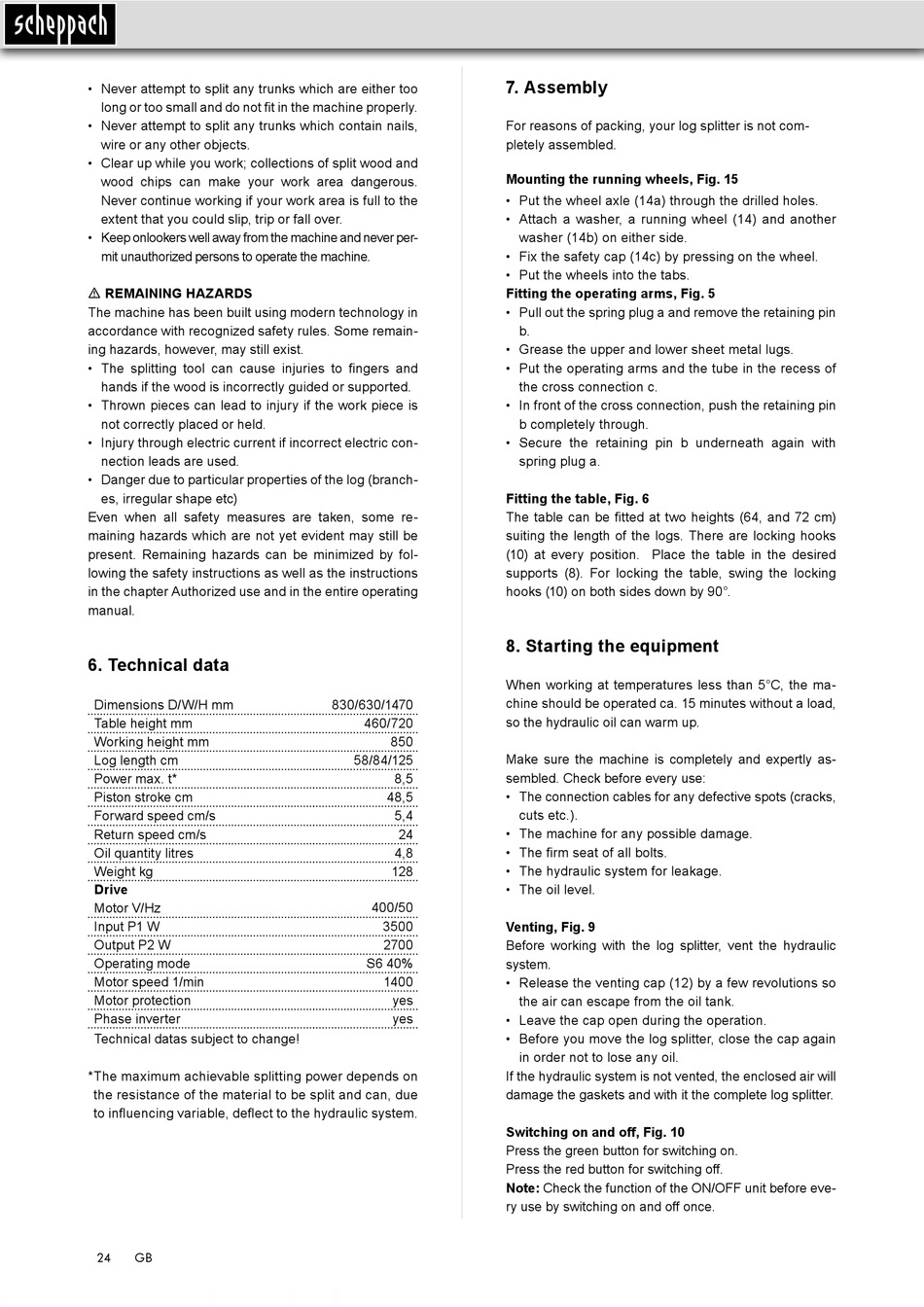

Remaining Hazards; Technical Data; Assembly; Starting The Equipment - Scheppach HL850 Originalbetriebsanleitung

• Never attempt to split any trunks which are either too
long or too small and do not fit in the machine properly.
• Never attempt to split any trunks which contain nails,
wire or any other objects.
• Clear up while you work; collections of split wood and
wood chips can make your work area dangerous.
Never continue working if your work area is full to the
extent that you could slip, trip or fall over.
• Keep onlookers well away from the machine and never per-
mit unauthorized persons to operate the machine.
m REMAINING HAZARDS
The machine has been built using modern technology in
accordance with recognized safety rules. Some remain-
ing hazards, however, may still exist.
• The splitting tool can cause injuries to fingers and
hands if the wood is incorrectly guided or supported.
• Thrown pieces can lead to injury if the work piece is
not correctly placed or held.
• Injury through electric current if incorrect electric con-
nection leads are used.
• Danger due to particular properties of the log (branch-
es, irregular shape etc)
Even when all safety measures are taken, some re-
maining hazards which are not yet evident may still be
present. Remaining hazards can be minimized by fol-
lowing the safety instructions as well as the instructions
in the chapter Authorized use and in the entire operating
manual.

6. Technical data

Dimensions D/W/H mm
Table height mm
Working height mm
Log length cm
Power max. t*
Piston stroke cm
Forward speed cm/s
Return speed cm/s
Oil quantity litres
Weight kg
Drive
Motor V/Hz
Input P1 W
Output P2 W
Operating mode
Motor speed 1/min
Motor protection
Phase inverter
Technical datas subject to change!
* The maximum achievable splitting power depends on
the resistance of the material to be split and can, due
to influencing variable, deflect to the hydraulic system.
24 GB

7. Assembly

For reasons of packing, your log splitter is not com-
pletely assembled.
Mounting the running wheels, Fig. 15
• Put the wheel axle (14a) through the drilled holes.
• Attach a washer, a running wheel (14) and another
• Fix the safety cap (14c) by pressing on the wheel.
• Put the wheels into the tabs.
Fitting the operating arms, Fig. 5
• Pull out the spring plug a and remove the retaining pin
• Grease the upper and lower sheet metal lugs.
• Put the operating arms and the tube in the recess of
• In front of the cross connection, push the retaining pin
• Secure the retaining pin b underneath again with
Fitting the table, Fig. 6
The table can be fitted at two heights (64, and 72 cm)
suiting the length of the logs. There are locking hooks
(10) at every position. Place the table in the desired
supports (8). For locking the table, swing the locking
hooks (10) on both sides down by 90°.

8. Starting the equipment

When working at temperatures less than 5°C, the ma-
chine should be operated ca. 15 minutes without a load,
830/630/1470
so the hydraulic oil can warm up.
460/720
850
Make sure the machine is completely and expertly as-
58/84/125
sembled. Check before every use:
8,5
• The connection cables for any defective spots (cracks,
48,5
5,4
24 • The machine for any possible damage.
4,8 • The firm seat of all bolts.
128 • The hydraulic system for leakage.
• The oil level.
400/50
3500 Venting, Fig. 9
2700
Before working with the log splitter, vent the hydraulic
S6 40%
system.
1400
• Release the venting cap (12) by a few revolutions so
yes
yes
• Leave the cap open during the operation.
• Before you move the log splitter, close the cap again
If the hydraulic system is not vented, the enclosed air will
damage the gaskets and with it the complete log splitter.
Switching on and off, Fig. 10
Press the green button for switching on.
Press the red button for switching off.
Note: Check the function of the ON/OFF unit before eve-
ry use by switching on and off once.
washer (14b) on either side.
b.
the cross connection c.
b completely through.
spring plug a.
cuts etc.).
the air can escape from the oil tank.
in order not to lose any oil.
