Telegram Listing Standard
S3000/S300
8015792/YY12/2015-02-12
Subject to change without notice
3.2

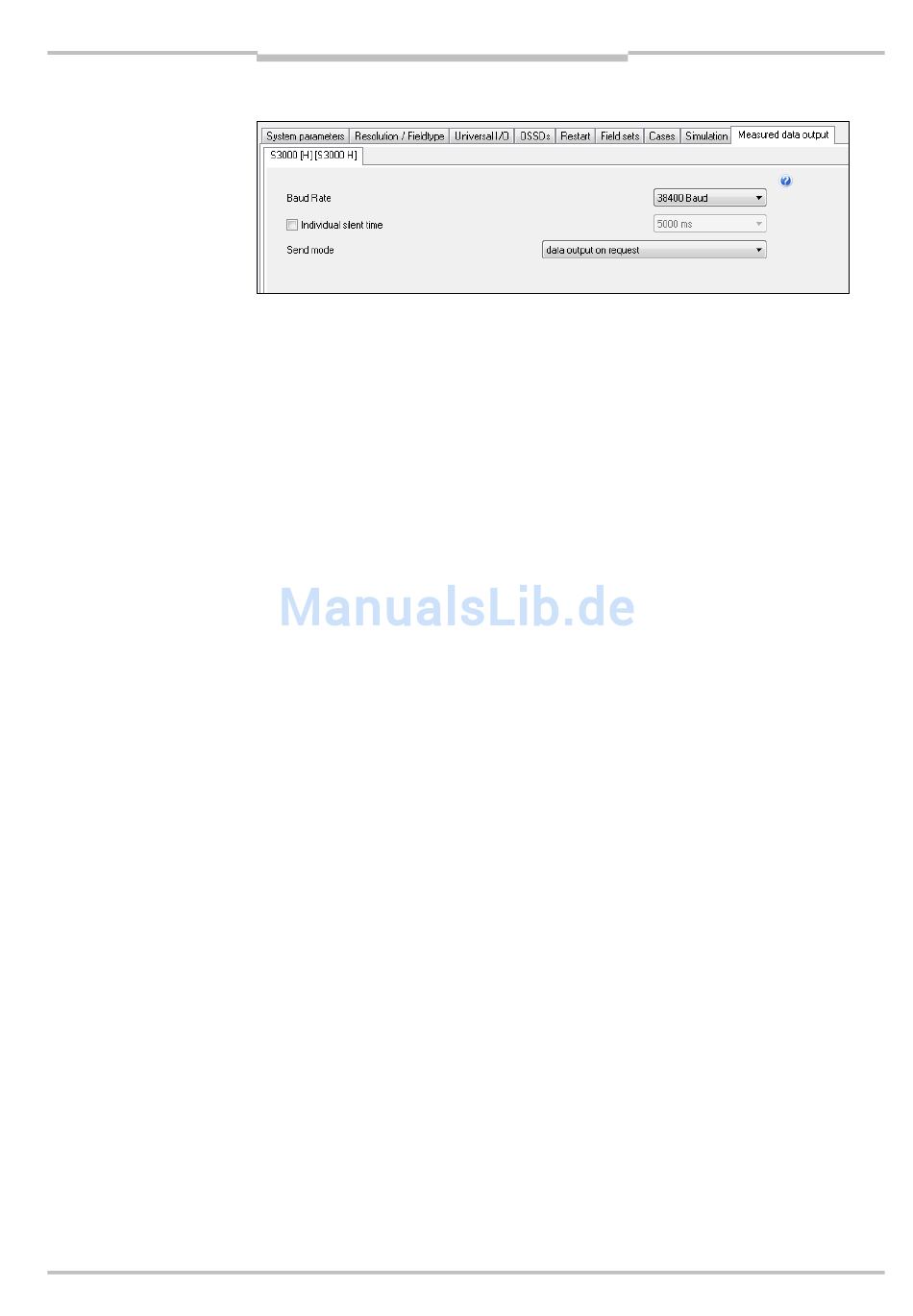

Basic settings

3.2.1

Baud rate

The baud rate of the RS-422 interface can be configured via the corresponding menu item
(see section 2.3.1 "Transfer and data formats" on page 35 for further information).
3.2.2

Individual silent time

The silent time feature serves to free up the interface in send mode Continuous data
output. In order to do so, the host computer is able to interrupt data output for the
duration of the configured silent time (see section 6.5 "Stopping data output" on page 50
for further information). Access to the interface is subsequently possible. Data output is
automatically resumed once the silent time has elapsed.
A silent time of 5000 ms is preconfigured ex factory.
3.2.3

Send mode

Data output on request:
Continuous data output:
© SICK AG • Industrial Safety Systems • Germany • All rights reserved
Data is only output when requested (see chapter 5 "Send
mode Data output on request" on page 41).
Data is output permanently (see chapter 6 "Send mode
Continuous data output" on page 46).
