03 PRODUCT STRUCTURE AND ASSEMBLY

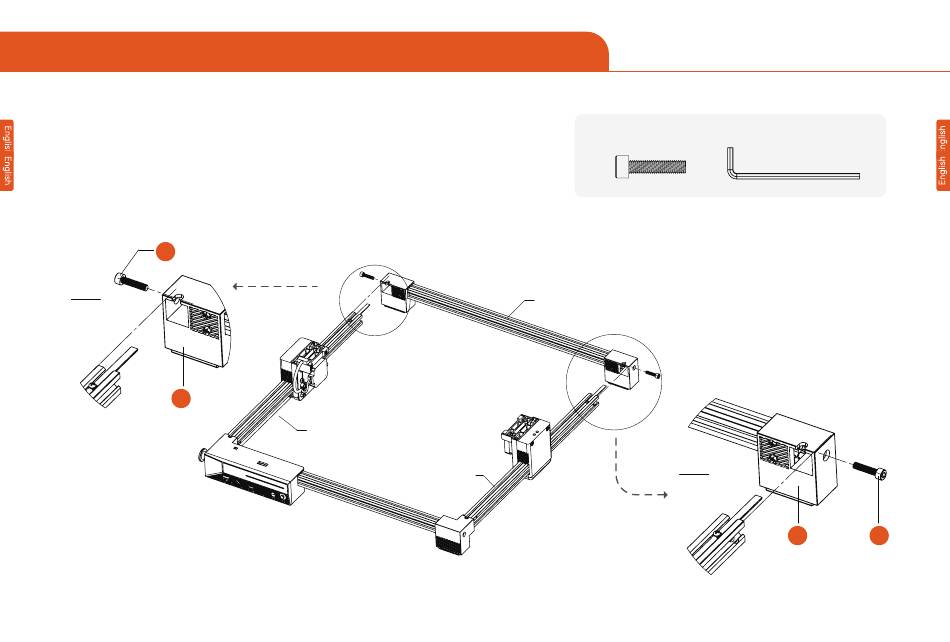

Installation sequence:
1. Install the rear module into the Y-axis left module
2. Simultaneously install the rear module into the Y-axis right
module ② module.
3. Tighten and fix with M5*22 hexagon socket head screw ③.
3
XII
1 : 2
1
Tip: If the belt is slightly too long, there is no need to cut it off, which is convenient for later maintenance and adjustment.
① module.
XII
Y-axis left module
Y-axis right module
14 12
M5*22 hexagon socket
head screw
Rear module
X
X
1 : 2
M4 hexagon wrench
2 3
