30
40
50
70

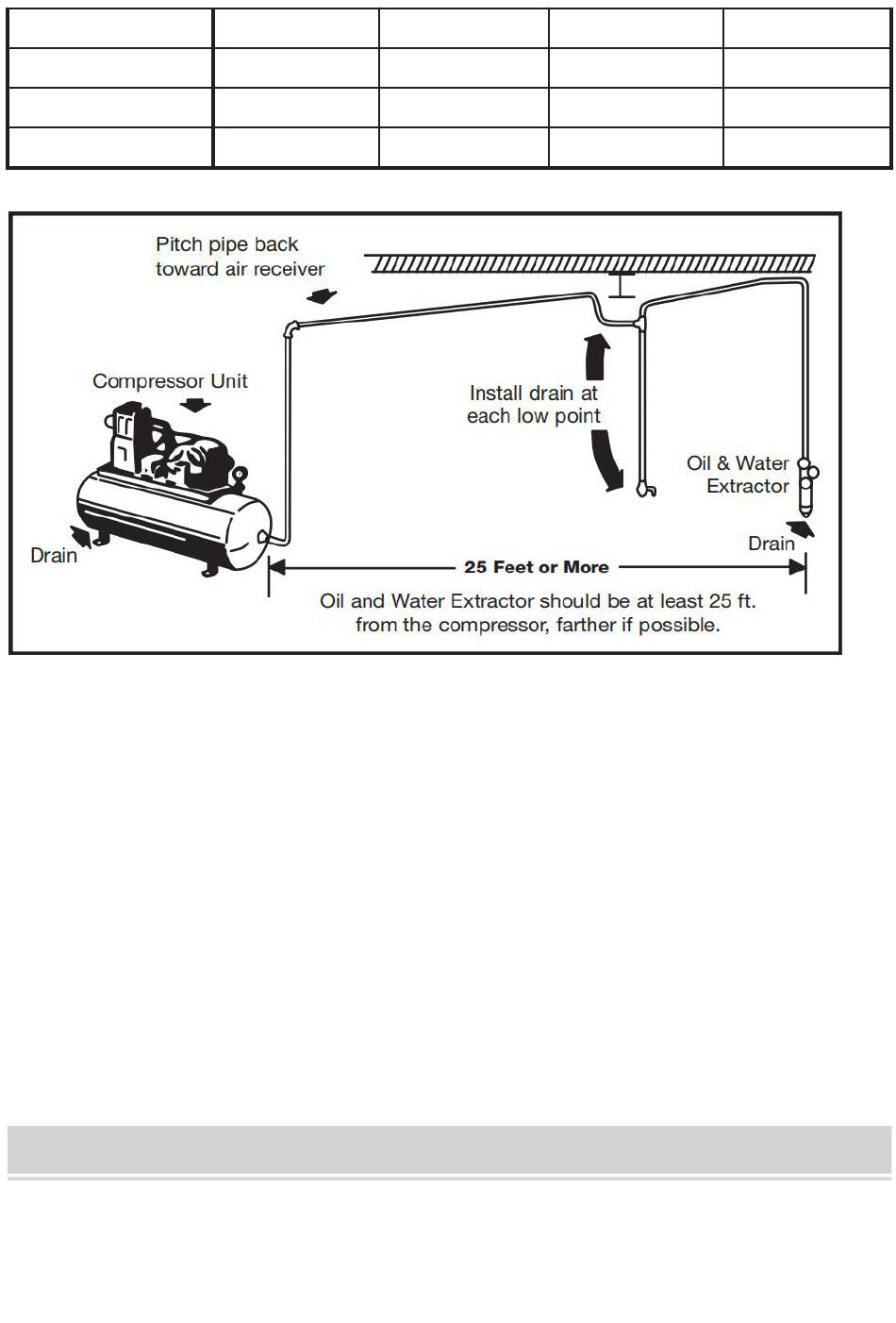

Never mount oil and water extractor on or near the air
compressor.
During compression, air temperature is greatly increased. As the air cools down to
room temperature, moisture condenses in the air line, on its way to the spray gun.
Therefore, always mount the oil and water extractor at a point in the air supply
system where the
Drain airlines properly.
Pitch all airlines back towards the compressor so that condensed moisture will flow
back into the air receiver where it can be drained off. Each low point in an airline
acts as a water trap. Such points should befitted with an easily accessible drain.
See diagram above.
This spray gun is rugged in construction, and is built to yield exceptional value.
The life of this product and the efficiency of its operation depend upon a
knowledge of its construction, use and maintenance.
3/4"
1"
1"
1"
compressed air temperature is lowest.

TYPES OF INSTALLATION

3/4"
1"
1"
1"
- 5 -
1"
1"
1"
1-1/4"
1"
1"
1"
1-1/4"
