2.5.2 Connecting / Turning On

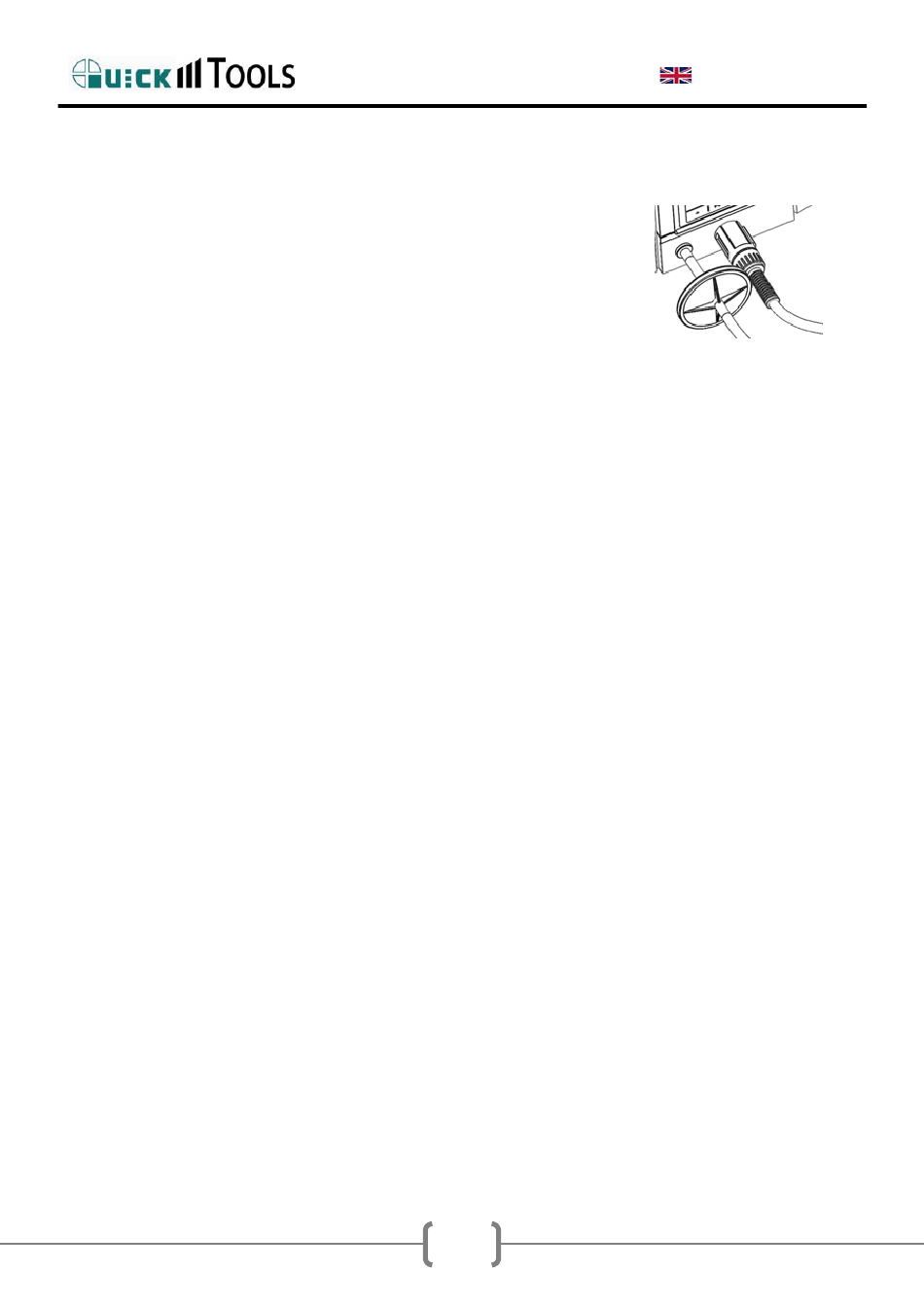

Connect the soldering iron, as shown in the picture, to
the station and mount an external filter.
Connect the power cord to a Schuko socket.
Switch on the soldering station. The heating process
begins immediately.
NOTE: Do not trigger the vacuum until the melting temperature is reached!
The external filter is directional. Incorrect assembly will impair the function!
2.5.3 Change Temperature
The station has 3 temperature memory locations, which can be selected with
the keys 1,2,3.
The +/- buttons can be used to change the temperature.
Short press: 1K increase/decrease
Long press: rapid temperature change
These changes are temporary only and will not be saved.
2.5.4 Desoldering
When the desired target temperature has been reached, the soldering tip can
be placed on the soldering tip.
As soon as the solder is completely melted, the red trigger button can be
pressed on the killing tool. The vacuum pulls the liquid solder into the flask.
NOTE: Circular movements on the solder joint can improve the desoldering
process.
