5 | Connection

Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
PIN assignment of the M12 connector is as follows:
PIN assignment
PIN 1 = VCC
PIN 2 = N.C.
PIN 3 = GND
PIN 4 = VCC
PIN 5 = N.C.
12 | BA LEANLED II Basic-Line . BA 08/2025
Take care of the applicable national/international specifications and regulations when
connecting the light. Use the wire cross-sections appropriate for your line distance and
your purpose of use.

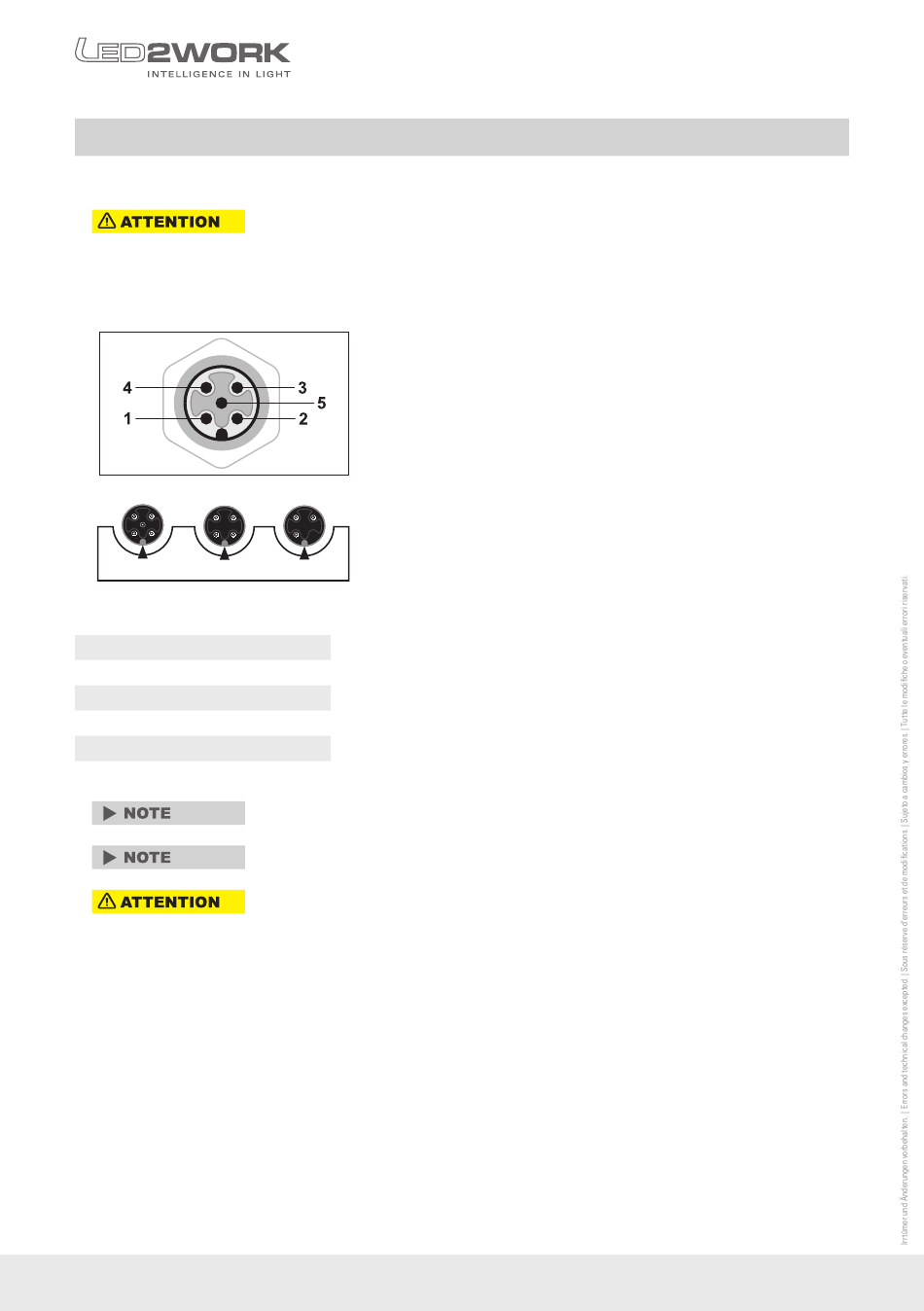

Schematic drawing of M12 plug
Possible variants of the M12 connector
PIN 3 = 0V DC. 24V DC for supply can be connected to PIN1 or PIN 4. It is not necessary to
assign both PINs (PIN 1 and PIN 4) at once!
The light is not equipped with a ON/OFF switch. Usually you switch the light ON or OFF
via external switches of machines or systems.
In case of undervoltage supply (< 24V DC), i.e. insufficient voltage in the power network,
the luminous flux is reduced.
