4 | Assembly / Mounting
Check the LED luminaire before installation to ensure it is complete and shows no signs of damage. Do not use the
luminaire or accessories if they are damaged, as there is a risk of injury.
The LED luminaire comes fully assembled. The LED luminaire comes fully assembled. The luminaire is attached via the
two included luminaire holder sets
Spring clip, steel galvanized, pair
Spring clip with magnet, pair
Luminaire holder set (spare part)

5 | Connection

Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
PIN assignment of the M12 connector is as follows:

PIN assignment

PIN 1 = 24V DC
PIN 2 = not used
PIN 3 = GND
PIN 4 = 24V DC
PIN 5 = not used
2 3
and . As option there are this mounting accessories:
When mounting the luminaire, make sure that the luminaire is fastened securely and
stably. If the luminaire falls down, its weight poses a risk of injury!

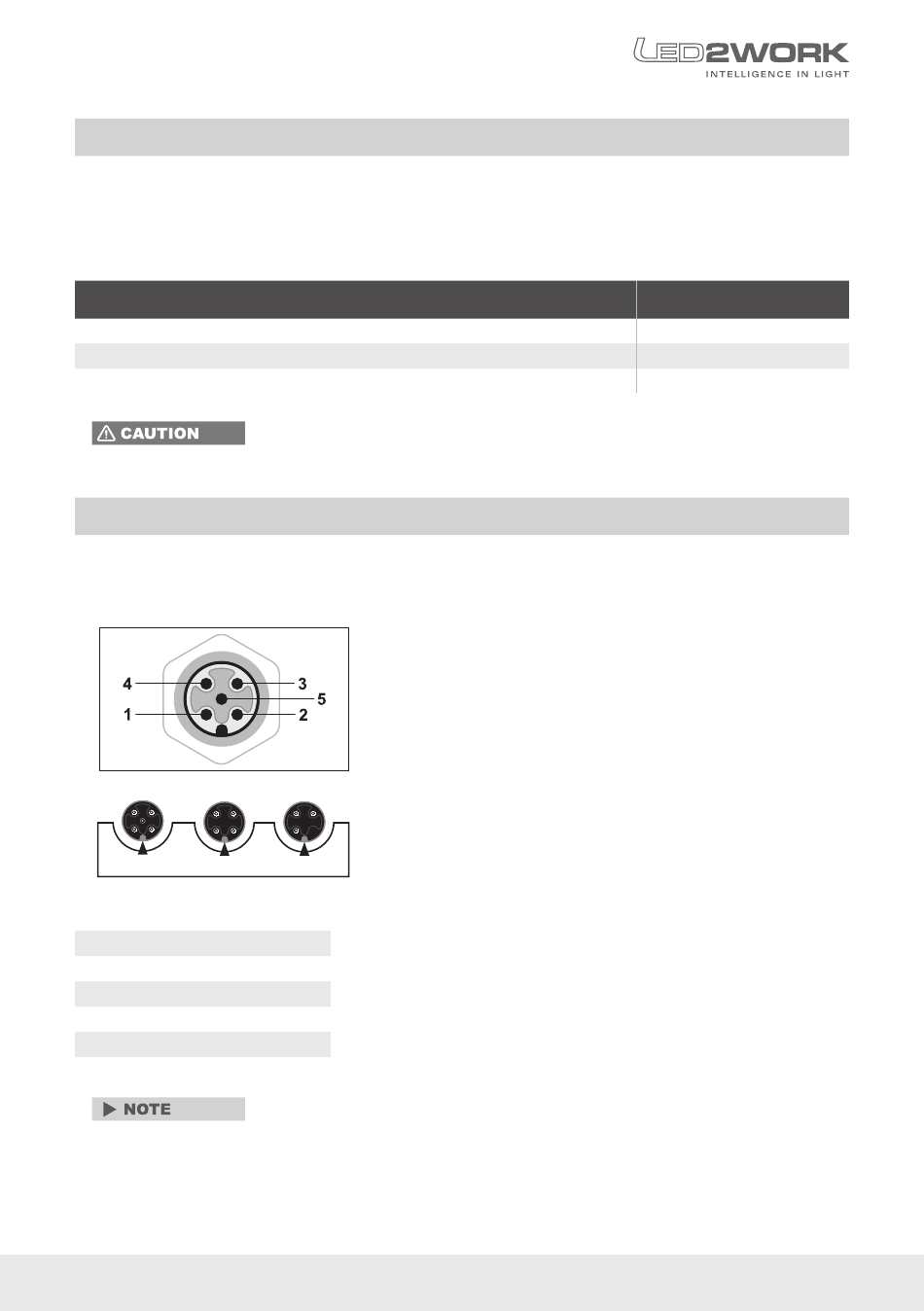

Schematic drawing of M12 plug
Possible variants of the M12 connector
PIN 3 = 0V DC. 24V DC for supply can be connected to PIN1 or PIN 4. It is not necessary to
assign both PINs (PIN 1 and PIN 4) at once!
Product no.
210200-07
210200-08
210200-18
