Only use the device if it is completely free of faults, and with safety
and awareness in mind.
If warnings or symbols are attached to the luminaire, they must not
be removed.
4 | Assembly and Mounting
Check the LED luminaire before installation to ensure it is complete and shows no
signs of damage. Do not use the luminaire or accessories if they are damaged, as
there is a risk of injury.
The LED luminaire comes fully assembled. The luminaire is designed for fixing in a
standart 70 mm holder for machine lighting.
Optional there are following mounting accessories for this luminaire:
TUBELED_70 luminaire bracket for rotatable mounting,
stainless V2A, pair
TUBELED_70 Luminaire bracket, aluminium, pair
When mounting the luminaire, make sure that the luminaire is
fastened securely and stably. If the luminaire falls down, its weight
poses a risk of injury!
5 | Connection
Suitable connection material, cables and accessories can be found in the accessory
range of LED2WORK. PIN assignment of the M12 connector is as follows:
4
1

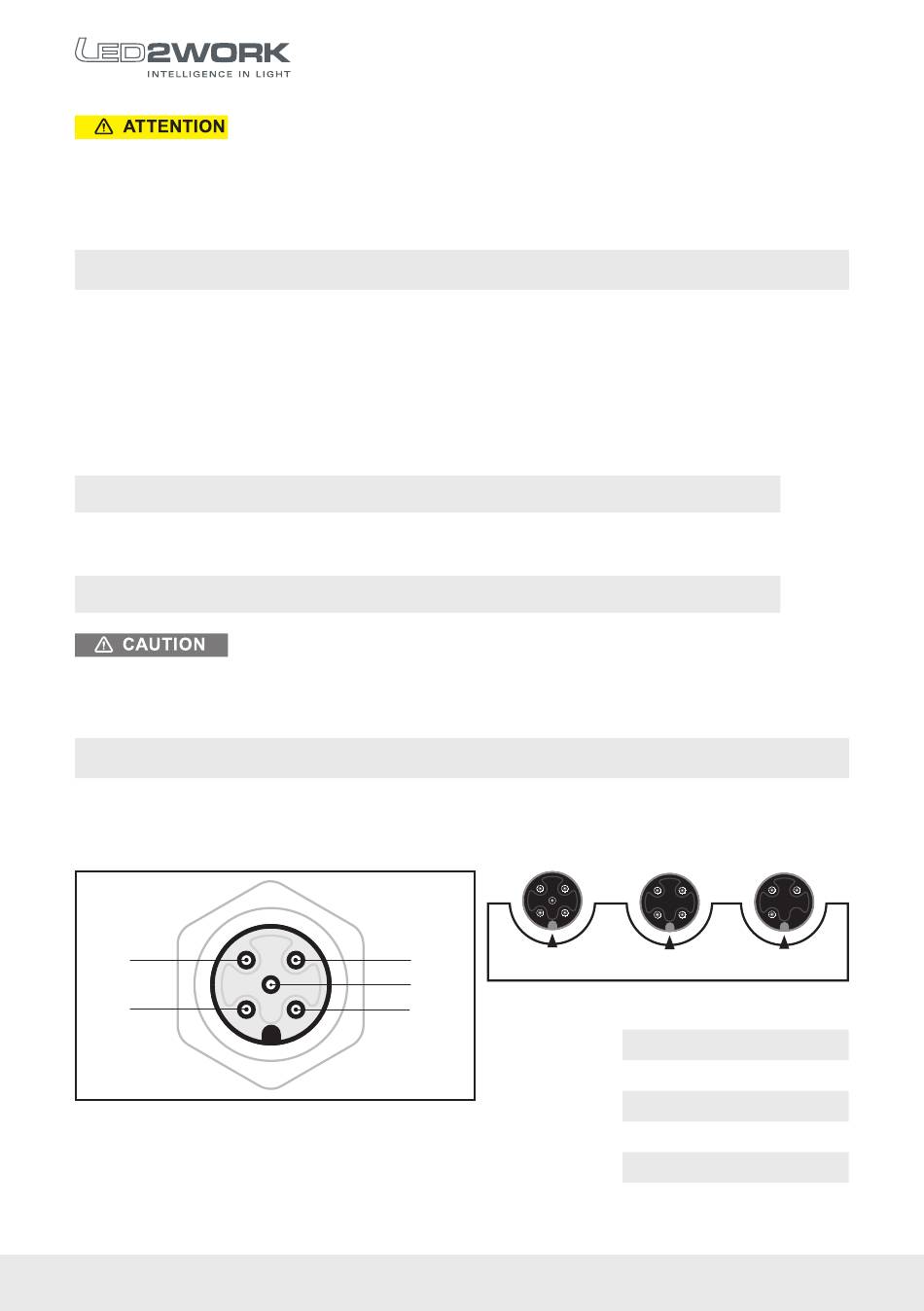

Schematic drawing of M12 plug
10 | BA TUBELED_70 DC . BA 03/2019
3
Possible variants of the M12 connector
5
2
Item no.
210200-01
210200-02
PIN allocation
PIN 1
=
24V DC
PIN 2
=
not used
PIN 3
=
GND
PIN 4
=
24V DC
PIN 5
=
not used
