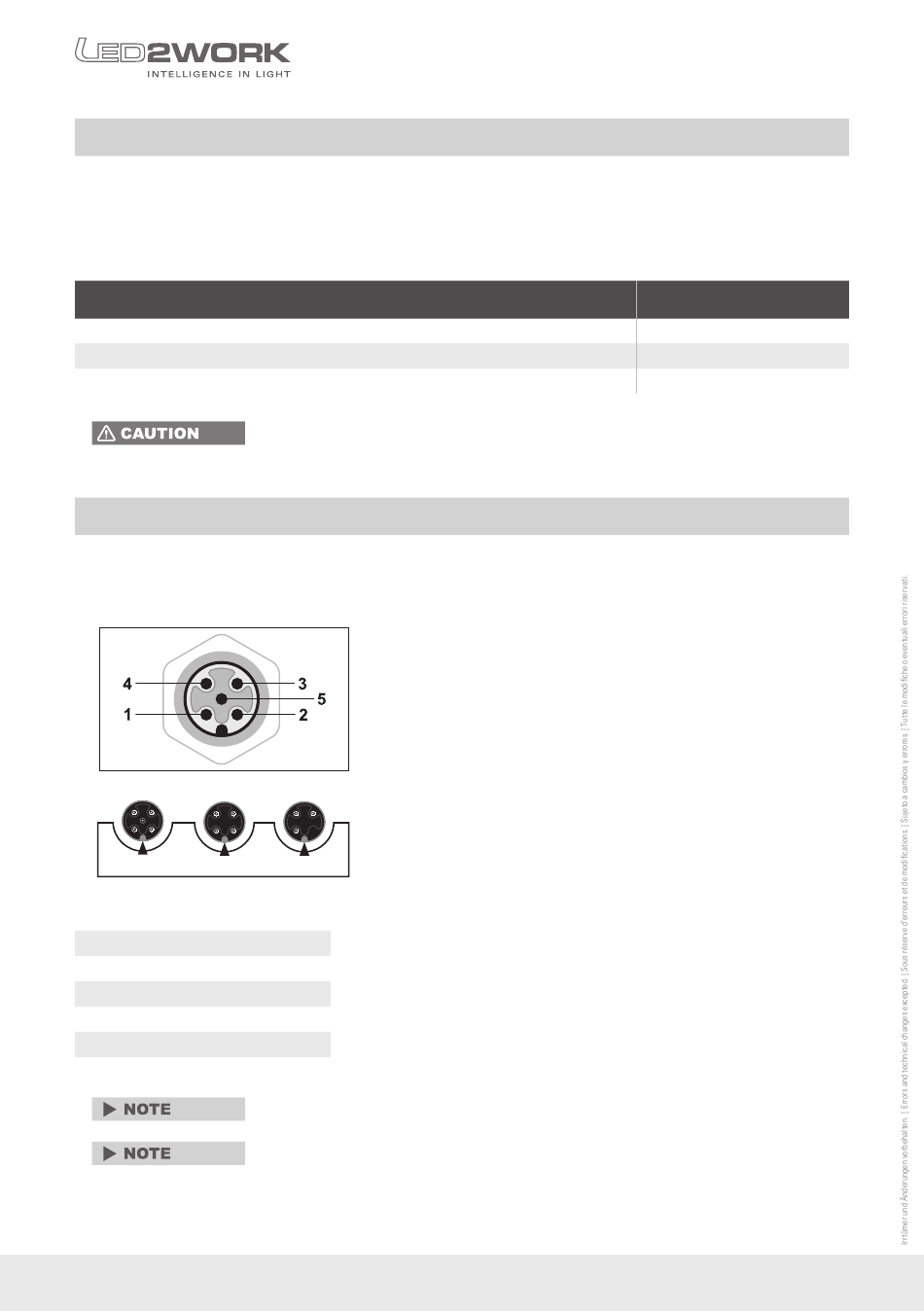

Assembly/Mounting; Connection - led2work INROLED 50 Ecolab DC Betriebsanleitung

4 | Assembly / Mounting
Check the LED luminaire before installation to ensure it is complete and shows no signs of damage. Do not use the
luminaire or accessories if they are damaged, as there is a risk of injury.
The LED luminaire comes fully assembled. The luminaire is fastened
mounting accessories:
INROLED_50 spring clip, steel galvanized, pair
INROLED_50 luminaire bracket, FDA conform, pair
INROLED_50 zip ties, F&B, detectable PP, blue, pair (spare part)

5 | Connection

Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
PIN assignment of the M12 connector is as follows:
PIN assignment
PIN 1 = 24V DC
PIN 2 = not used
PIN 3 = GND
PIN 4 = 24V DC
PIN 5 = not used
10 | BA INROLED_50 Ecolab DC . BA 03/2022
When mounting the luminaire, make sure that the luminaire is fastened securely and
stably. If the luminaire falls down, its weight poses a risk of injury!
Schematic drawing of M12 plug
Possible variants of the M12 connector
PIN 3 = 0V DC. 24V DC for supply can be connected to PIN1 or PIN 4. It is not necessary to
assign both PINs (PIN 1 and PIN 4) at once!
The luminaire is not equipped with a ON/OFF switch. Usually you switch the luminaire ON
or OFF via external switches of machines or systems.
2
via the delivered holder. As option there are this
Product no.
210200-17
210200-09
210200-13
