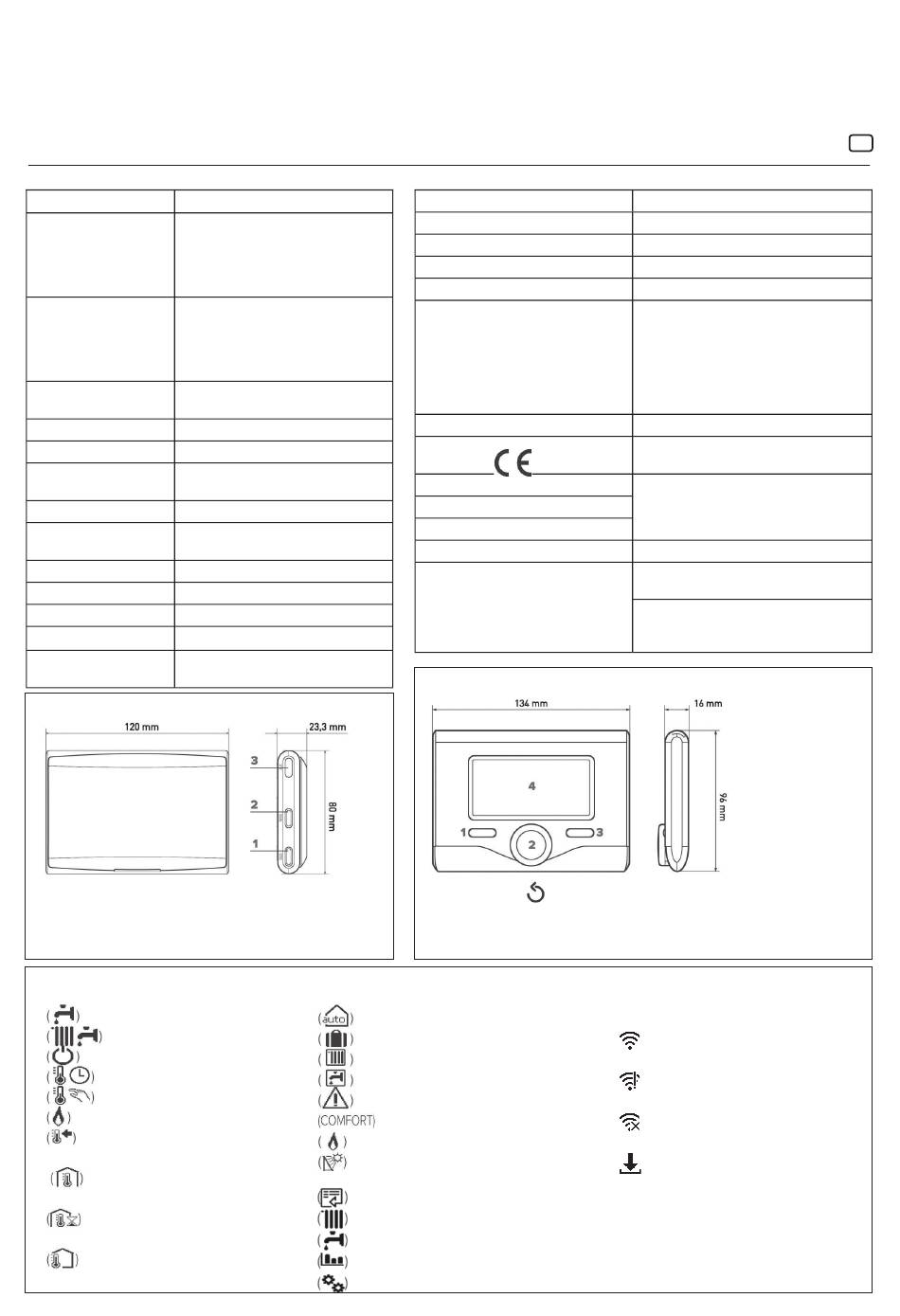

Technical Specifications

REMOCON NET MINI
Conformity LVD: 2014/35/EU
EMC: 2014/30/EU
RED: 2014/53/EU
ROHS: 2011/65/EU
Standard LVD: EN 62368; EN 62311
EMC: ETSI EN 301 489-1; ETSI
EN301 489-17
RED: ETSI EN 300 328
ROHS: EN63000
Installing the product Mounted on the wall or on any
smooth surface
Operating temp. -10°C - 60°C
Storage temp. -20°C - 70°C
Power 0-24V Powered by Ebus2 Aris-
ton BridgeNet®
Gateway consumption Max 40 mA - Max 0.7 W
Total consumption Max 120 mA - Max 3 W
(BUS devices)
Network Frequency 2,4 GHz (5 GHz is not supported)
Environmental class 3
Mass 0.1 kg
Degree of protection IP 20
Max. radio frequency <20 dBm
power transmitted
REMOCON NET MINI
1 BridgeNet Bus LED
2 Internet Connection LED
3 Wi-Fi configuration button
REMOCON PLUS display symbols
Summer
Winter
OFF system off
Time scheduling
Manual operation
Flame present indication
Desired room temperature
Measured room temperature
Desired room temperature
override
Outdoor temperature
(2015/863/EU)
AUTO function enabled
HOLIDAY function enabled
Central heating active
Domestic hot water active
Error indication
Comfort function enabled
Flame present
Solar heating system active
(where present)
Complete menu:
Heating settings
Hot water settings
System performance
Display options
Power supply
Electrical uptake
Operating temperature
Storage temperature
Bus wire length and cross-
sectional area
NOTE:
IN ORDER TO AVOID
INTERFERENCE PROBLEMS,
USE A SHIELDED CABLE OR
TWISTED PAIR CABLE.
Buffer memory
Conformity
Electromagnetic interference
Electromagnetic emissions
standard conformity
Resolution degree
ERP Characteristics
(only with BridgeNet Bus boiler)
REMOCON PLUS (Optional)
1 back button (previous display)
2 knob
3 OK button (to confirm operation or access main menu)
4 DISPLAY
44
REMOCON PLUS (Optional)
BridgeNet® BUS
max. < 0.5W
-10 - 60°C
-20 to 70°C
max. 50 m
2
ø min. 0.5 mm
2 h
LVD 2006/95/EC EMC 2004/108/EC
EN 60730-1
0.1°C
Class: V
Heating contribution: +3%
By adding ELCO external probe:
Class: VI
Heating contribution: 4%
( AP ) Access Point Configuration
( ) Gateway connected to inter-
net
( ) Gateway not connected to
router
( ) Gateway connected to router
but not to internet
( ) Software update in pro-
gress
