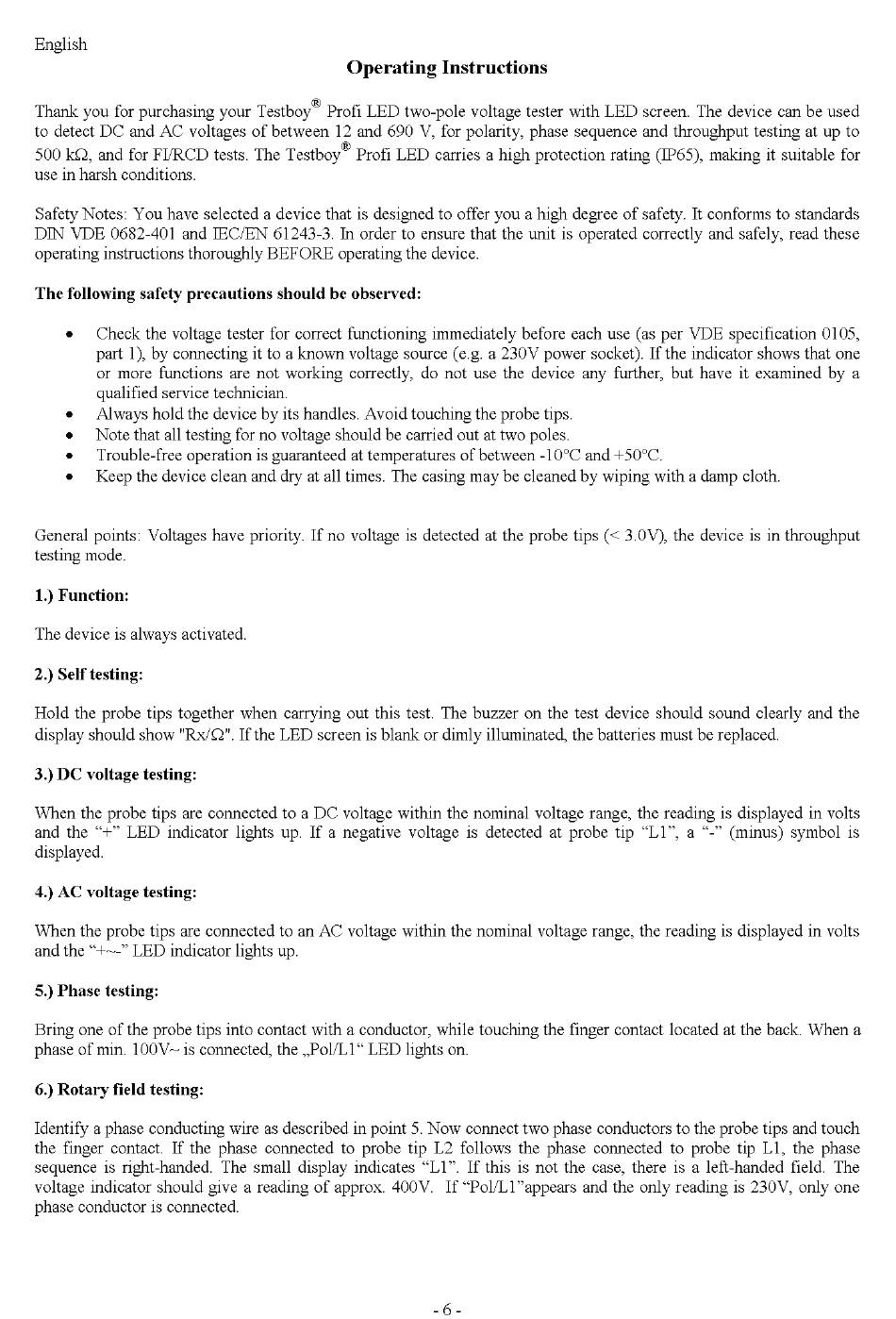

English
Thank you for purchasing your Testboy
to detect DC and AC voltages of between 12 and 690 V, for polarity, phase sequence and throughput testing at up to
500 kQ, and for FL/RCD tests. The Testboy
use in harsh conditions.
Safety Notes. You have selected a device that is designed to offer you a high degree of safety. It conforms to standards
DINI VT)E 0682-401 and IEC/EN 61243-3. In order to ensure that the unit is operated correctly and safely, read these
operating Instructions thoroughly BEFORE operating the device.
The following safety precautions should be observed:
Check the voltage tester for correct functioning immediately before each use (as per VDE specification 0105,
part l), by connecting it to a known voltage source (e.g. a 230V power socket). Ifthe indicator shows that one
or more functions are not working correctly, do not use the device any further, but have it examined by a
qualified service technician.
Always hold the device by its handles. Avoid touching the probe tips.
Note that all testing for no voltage should be carned out at two poles.
Trouble-free operation is guaranteed at temperatures of between -1OOC and +500C.
Keep the deuce clean and dry at all times. The casmg may be cleaned by Wiping with a damp cloth.
General points: Voltages have priority If no voltage is detected at the probe tips (< 3 OV) the device is in throughput
testing mode
1.) Function:
The device is always activated.
2.) Self testing:
Hold the probe tips together when carrymg out this test. The buzzer on the test device should sound clearly and the
display should show "Rx/Q". If the LED screen is blank or dimly illuminated, the batteries must be replaced.
3.) DC voltage testing:
When the probe tips are connected to a DC voltage within the nominal voltage range, the reading is displayed in volts
LED Indicator lights up If a negative voltage is detected at probe tip 'Ll ", a
and the
displayed.
4.) AC voltage testing:
When the probe tips are connected to an AC voltage within the nominal voltage range, the reading is displayed In volts
and the LED indicator lights up.
5.) Phase testing:
Bring one of the probe tips Into contact with a conductor, while touching the finger contact located at the back. When a
phase of mm. IOC)V— is comected, the „Pol/Ll " LED lights on
6.) Rotary field testing:
Identify a phase conducting wire as described In point 5 Now connect two phase conductors to the probe tips and touch
the finger contact. If the phase connected to probe tip L2 follows the phase connected to probe tip L I, the phase
sequence is right-handed. The small display indicates 'LI'
voltage indicator should give a reading of approx. 400V. If "Pol/Ll ' appears and the only reading is 230V only one
phase conductor is connected.
Operating Instructions
Profi LED two-pole voltage tester with LED screen. The device can be used
Profi LED carries a high protection rating (IP65), making it suitable for
If this is not the case, there is a left-handed field. The
(minus) symbol is
