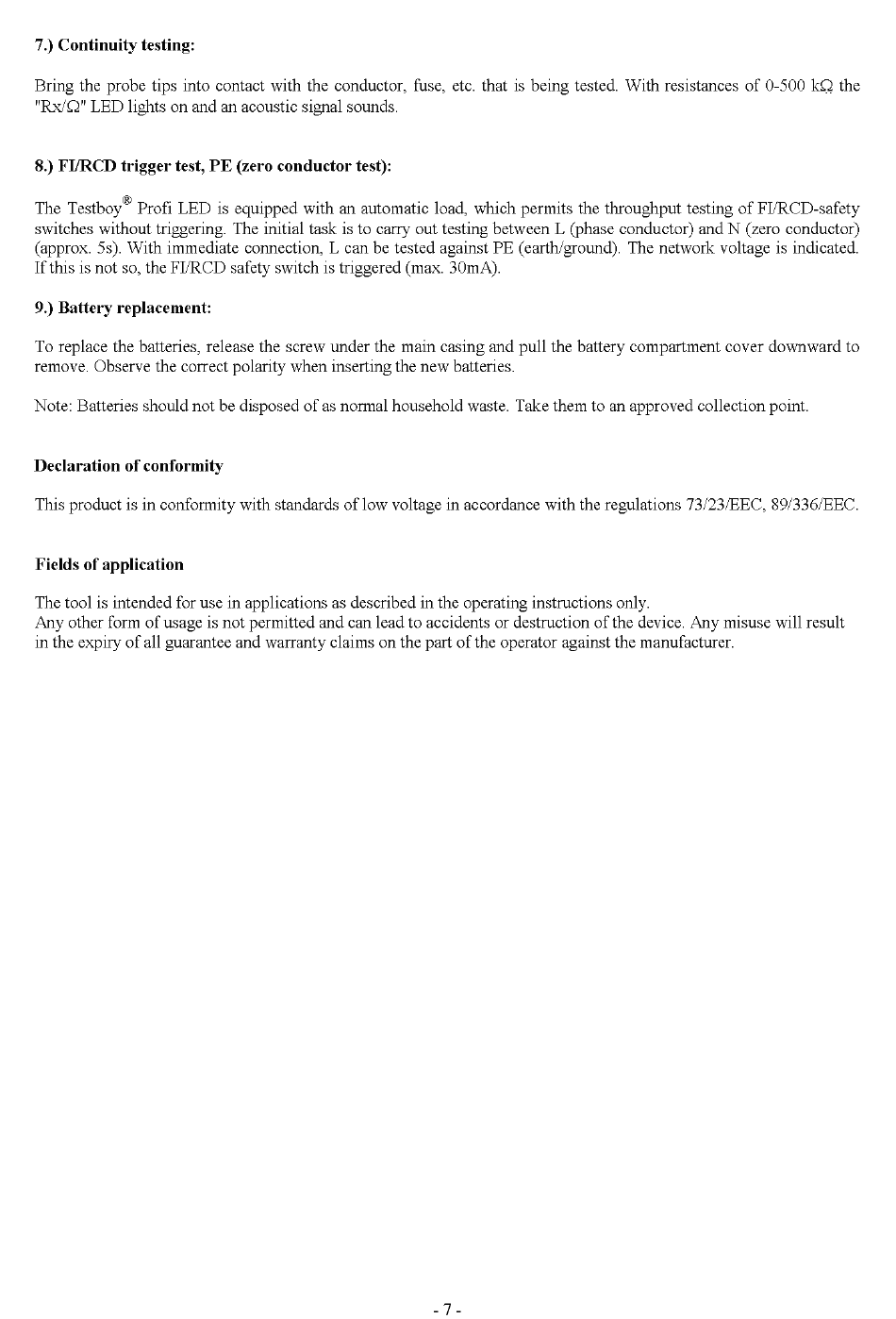

7.) Continuity testing:
Bring the probe tips into contact with the conductor, fuse, etc. that IS being tested. With resistances of 0-500 kQ the
"Rx/Q" LED lights on and an acoustic signal sounds.
8.) Fl/RCD trigger test, PE (zero conductor test):
The Testboy
Profi LED is equipped with an automatic load, which permits the throughput testing of Fl/RCD-safety
switches without triggenng. The imtial task is to carry out testing between L (phase conductor) and N (zero conductor)
(approx. 5s). With immediate connection, L can be tested against PE (earth/ground). The network voltage is Indicated.
If this is not so, the FL"RCD safety switch is triggered (max. 30mA).
9.) Battery replacement:
To replace the batteries, release the screw under the main casing and pull the battery compartment cover downward to
remove. Observe the correct polarity when Inserting the new batteries
Note. Batteries should not be disposed of as normal household waste. Take them to an approved collection point.
Declaration
of conformity
This product is in conformity with standards of low voltage in accordance with the regulations 73/23/EEC, 89/336/EEC.
Fields of application
The tool is intended for use In applications as described in the operating Instructions only.
Any other form of usage is not permitted and can lead to accidents or destruction of the device. Any misuse will result
in the expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.
